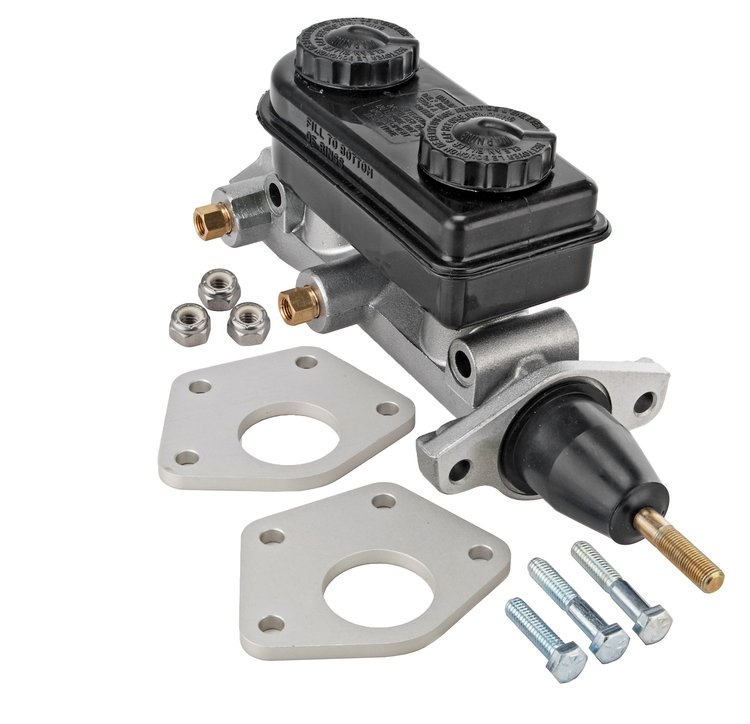

Universal Master Cylinder 1-1/8 in. Bore

Name: Universal Master Cylinder 1-1/8 in. Bore
Brand: JEGS
SKU: 555-631403
Price: 93.79 USD
Availability: InStock

^$93⁷⁹$101.99You Save$8.20

5 left in stock

Ships Today

Lowest Price Guarantee

Universal Master Cylinder

1-1/8 in. Bore

Aluminum body

Composite Dual Reservoir

1/2 in.-20 Ports
Includes:

(2) 1/2 in.-20 IFM to 3/8 in.-24 IFF Fittings

(1) Boot

(1) 3/8 in.-24 Rod

(2) Mounting Brackets

Hardware

JEGS 555-631403 Universal Master Cylinder Features:

Constructed from aluminum for the master cylinder and composite dual reservoir with boot
Features extra, through body holes, for side mounting
Specifications: 1.125 in. piston for 2-piston front & 4-piston rear disc up to 4-piston front & 4-piston rear disc system
Dimensions: mounting holes are 5/16" and are on 3-3/16" (3.188) centers, overall length: 8.25", overall width: 3.5", height from base to top of reservoir: 4.5", spacing between inlet fittings 3.0", length of plastic reservoir 6.5", and spacing from front to centerline of first inlet fitting: 1"
Includes (2) 1/2"-20 ifm to 3/8"-24 iff fittings, (1) boot, and (1) 3/8"-24 rod

3/8"-24 Threads

Multi-Purpose Master Cylinders

JEGS Universal Master Cylinders are available with two-piston sizes for virtually any combination of drag racing, late model stock car, off-road, or street rod braking system.

Master cylinders feature an aluminum body, composite dual reservoir with boot, and 3/8 in.-24 rod in either a 1.031 in. piston (for drum/drum up to 2-piston front & 4-piston rear disc) or a 1.125 in. piston (for 2-piston front & 4-piston rear disc up to 4-piston front & 4-piston rear disc) system. Each master cylinder also features extra, through body holes, for side mounting.

JEGS Master Cylinders are available with 1/2 in.-20 male x -3 AN IFF brake line adapter fittings; or in a kit with a universal billet mounting bracket/spacer, brake line adapter fittings, and mounting hardware.

Part TypeMaster Cylinder

Product LineJEGS Universal Master Cylinders

BrandJEGS

Package Height5.6

Package Width10.3

Package Length10.5

Weight3.5 PG

Part CategoryReplacement Parts

Master Cylinder Stroke1.35 in (34.29 mm)

Hardware IncludedYes

Remote ReservoirNo

Mounting Flange Center To Center Distance (In.)N/A
