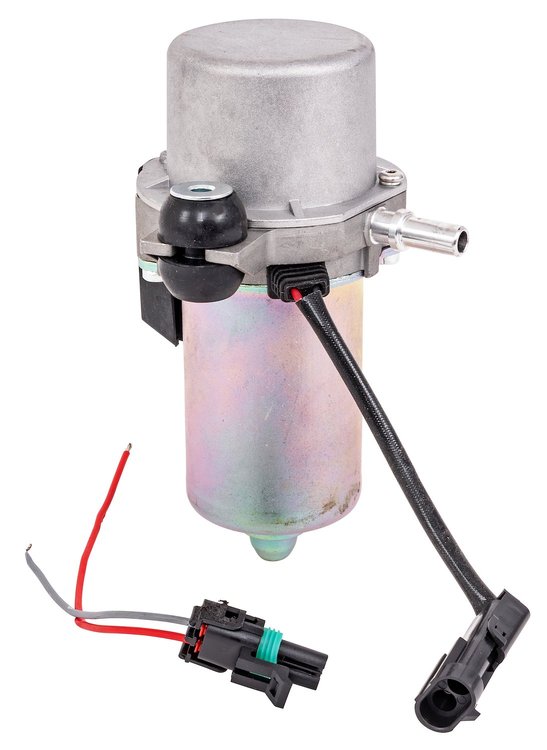

JEGS 555-63019 Electric Vacuum Pump

Designed for your vehicle’s pneumatic brake booster system. JEGS Electric Vacuum Pump can be mounted on the fenderwell or firewall in a vertical position with the motor facing downward and away from heat. It can also provide a pneumatic vacuum supply as a stand-alone system.

JEGS 555-63019 Electric Vacuum Pump Features:

• Working Temperature: -40 to 120 degrees C
• Rated Voltage:12-Volt
• Rated Current: 10A
• Pumping Rate: 7 psi at 3 seconds,12 psi at 6 seconds
• Noise: less than 70dba
• Aluminum Housing: 7 in. H x 2 1/4 in. O.D. top housing 2 1/2 in. O.D. bottom housing
• Working Life: 1000 working hours

Pump Includes:

• Rubber Insulator Mounts with 1/4 in. DIA. x 4 in. center to center mounting holes

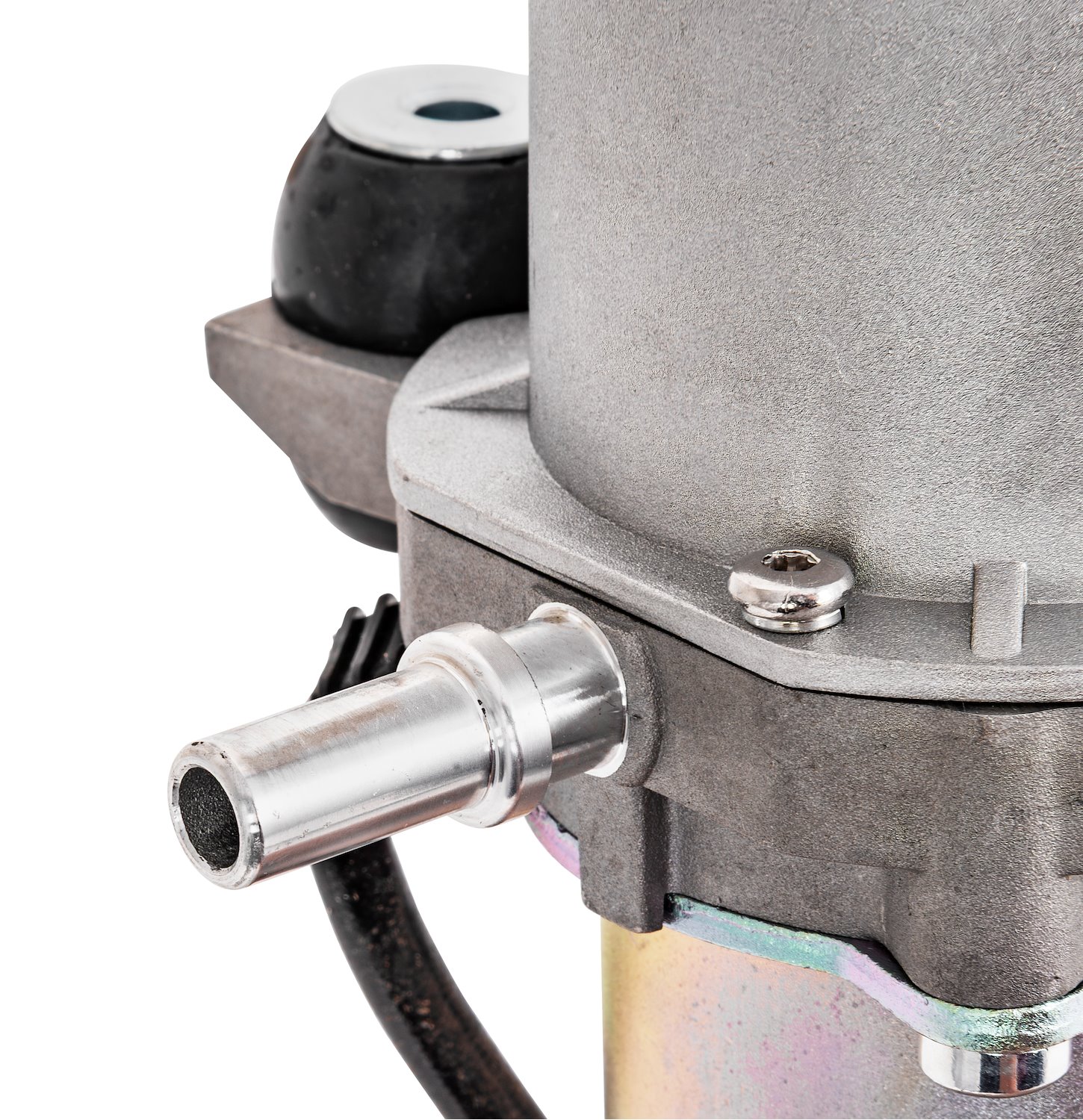

• 3/8 in, Hose Barb Connection
• 12 Gauge Weather Pack Electrical Connection

JEGS 555-63019 Electric Vacuum Pump IMPORTANT Note:

• This Pump Must Be Installed Vertically Away from Heat, with the Motor Facing Downward. DO NOT Mount Pump Horizontally or Upside-Down.
• JEGS 555-63039 Vacuum Check Valve, sold separately
