JEGS 555-60763 Steering Box Features:

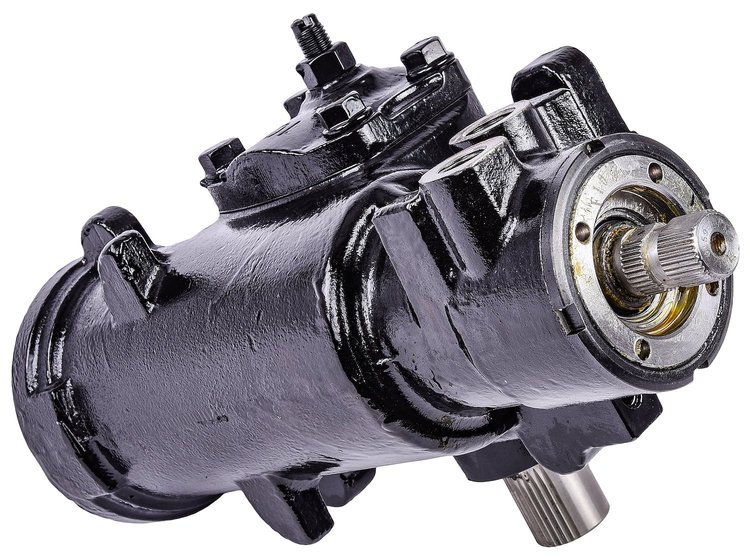

JEGS 60763 pre-lubed Power Steering Box for select 1968-1976 GM K-Series trucks is a direct replacement upgrade that will require a (9-spline) pitman arm for your application. This variable ratio steering box assists in cornering and highway driving, allowing for a quicker steering ratio with more steering angle input and a slower steering ratio for straight-line driving; for a more gentle drive.

• Cast iron construction
• (4) Mounting holes (Thread size: 7/16 in.-14)

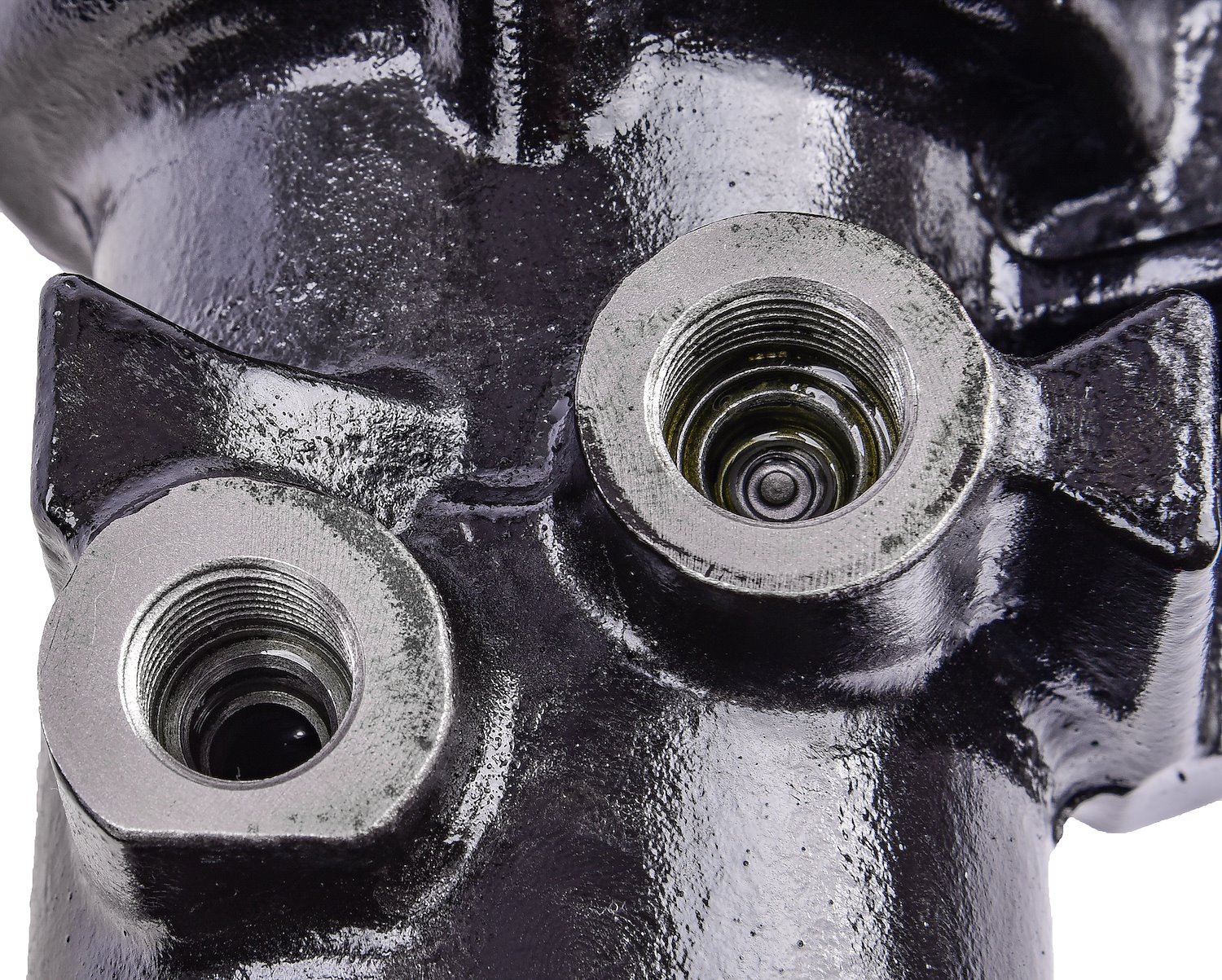

• Pressure port thread size: 11/16 in.-18 O-ring
• Return port thread size: 5/8 in.-18 O-ring
• 1 1/4 in.-9 spline pitman shaft
• Black painted finish

Replacement for Part Number(s):

• 27-7502
• 959

Vehicle Fitment:

• 1970-1974 Chevy Blazer
• 1968-1976 Chevy K10 Truck & Suburban
• 1968-1976 Chevy K20 Truck & Suburban
• 1968-1974 Chevy K30 Truck
• 1970-1976 GMC Jimmy
• 1968-1974 GMC K15/K1500 Truck & Suburban
• 1975-1976 GMC K15 Truck
• 1968-1974 GMC K25/K2500 Truck & Suburban
• 1975-1976 GMC K25 Truck
• 1968-1974 GMC K35/K3500 Truck
