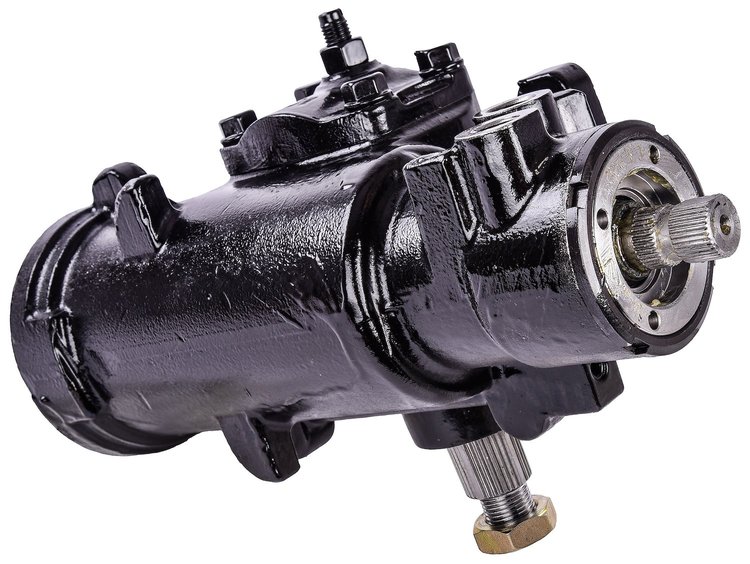

JEGS 60753 pre-lubed Power Steering Box for select 1968-1977 Dodge, GM, International, Plymouth trucks is a direct replacement upgrade that will require a (32-spline plus four master splines) pitman arm for your application. This variable ratio steering box assists in cornering and highway driving, allowing for a quicker steering ratio with more steering angle input and a slower steering ratio for straight-line driving; for a more gentle drive.

JEGS 555-60753 Power Steering Gear Box Features:

• Cast iron construction
• Black painted finish
• (4) Mounting holes (Thread size: 3/8 in.-16)

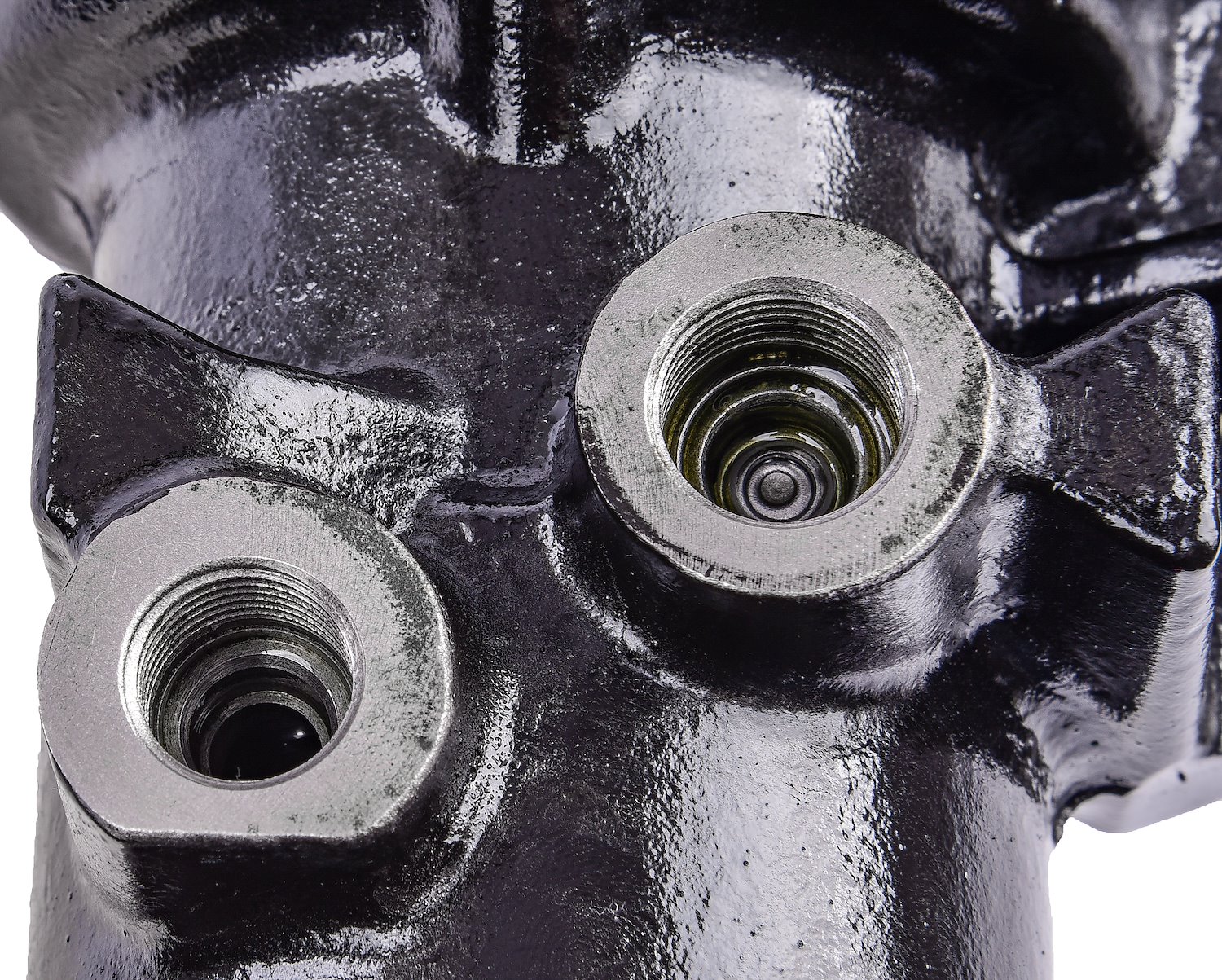

• Pressure port thread size: 11/16 in.-18 O-ring
• Return port thread size: 5/8 in.-18 O-ring
• 1 1/4 in.-32 spline pitman shaft w/ 4 master splines
• Includes Pitman Arm shaft nut and lock washer

Replacement for Part Number(s):

• 3893469
• 27-7501
• 1074

JEGS 555-60753 Power Steering Gear Box Vehicle Fitment:

• 1970-1974 Chevy Blazer
• 1968-1976 Chevy C10 Truck & Suburban
• 1968-1976 Chevy C20 Truck & Suburban
• 1968-1976 Chevy C30 Truck
• 1975-1976 Chevy K5 Blazer
• 1972-1977 Dodge D100 Truck
• 1977 Dodge D150 Truck
• 1972-1977 Dodge D200 Truck
• 1972-1977 Dodge D300 Truck
• 1974-1977 Dodge Ramcharger
• 1972-1977 Dodge W100 Truck
• 1977 Dodge W150 Truck
• 1972-1977 Dodge W200 Truck
• 1972-1977 Dodge W300 Truck
• 1968-1974 C15/C1500 Truck/Suburban
• 1975-1976 GMC C15 Truck/Suburban
• 1968-1974 C25/C2500 Truck/Suburban
• 1975-1976 GMC C25 Truck/Suburban
• 1968-1974 C35/C3500 Truck
• 1975-1976 GMC C35 Truck
• 1970-1976 GMC Jimmy
• 1974 International 100
• 1969-1970 International 1000D
• 1971-1973 International 1010
• 1969-1970 International 1100D
• 1971-1973 International 1110
• 1975 International 150
• 1974-1975 International 200
• 1972 International M800 Post Office
• 1975 International MS
• 1972-1974 International MS1210
• 1975 International Travelall 150
• 1975 International Travelall 200
• 1974-1977 Plymouth Trailduster

FAQ

How do I know if my power steering gearbox is bad?

• Check for fluid leaks around the power steering gear box.
• Listen for unusual noises while turning the steering wheel.
• Inspect for uneven tire wear, indicating potential gearbox issues.

What's the difference between a steering box and a gearbox?

• The terms are often used interchangeably, both referring to the same component.
• Some may distinguish "steering box" for recirculating ball systems and "gearbox" for rack and pinion systems.

Is it hard to replace power steering gear box?

• Requires intermediate mechanical skills and proper tools.
• Follow the vehicle's service manual for step-by-step instructions.
• Consider professional assistance for a smoother replacement process.

How do you test a power steering gear box?

• Check for excessive play in the steering wheel.
• Perform a visual inspection for leaks and damaged components.
• Conduct a road test to assess the gearbox's performance under different driving conditions.
