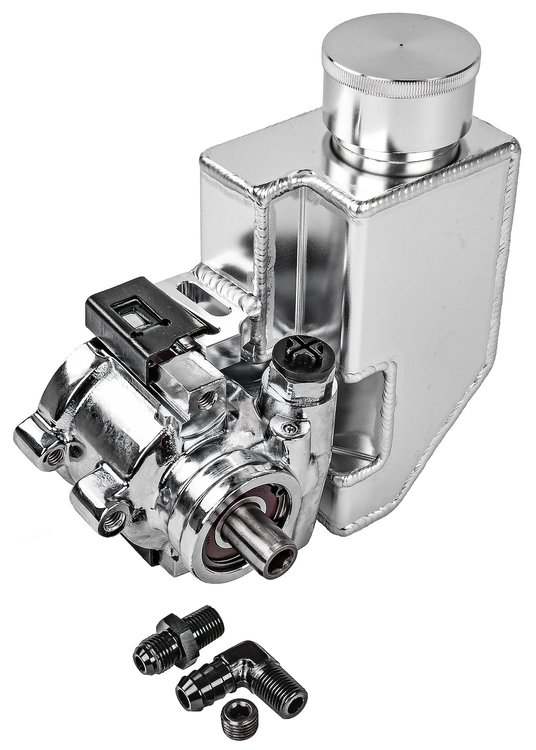

JEGS 60713 GM Type II Power Steering Pump & Reservoir Kit Included Fittings:

• (1) 90-Degree 1/4 in. NPT Male to Hose Barb
• (1) Straight 1/4 in. NPT Male to -6 AN Male
• (1) 1/4 NPT Pipe Plug

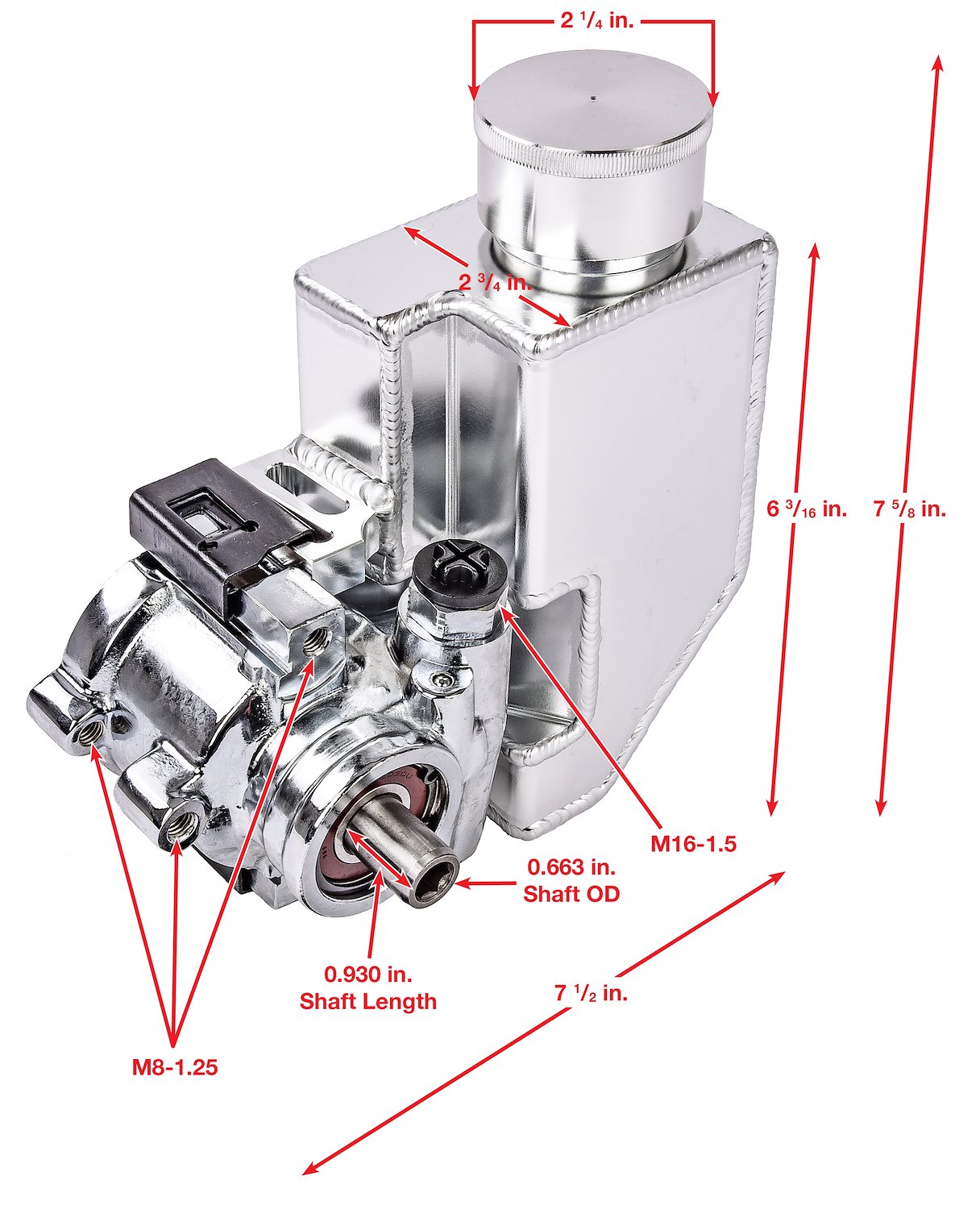

JEGS 60713 GM Type II Power Steering Pump & Reservoir Kit Specifications:

• Shaft Outside Diameter (OD): 0.663 in.
• Mounting Holes Thread Size: M8-1.25
• Pressure Port: M16 1.5
• TIG-Welded Billet Aluminum Reservoir: Standard Capacity
• Pulley Attachment: Press-Fit
• Shaft Internal Threads: 3/8 in. -16 (for puller/installer attachment)

JEGS 60713 GM Type II Power Steering Pump & Reservoir Kit Note:

• Requires power steering pump pulley such as JEGS 555-504212 or equivalent (sold separately)
