![High-Performance Transmission Cooler with Fan [26,000 GVW]](https://www.jegs.com/images/mini_750/500/555/555-60345.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-60345

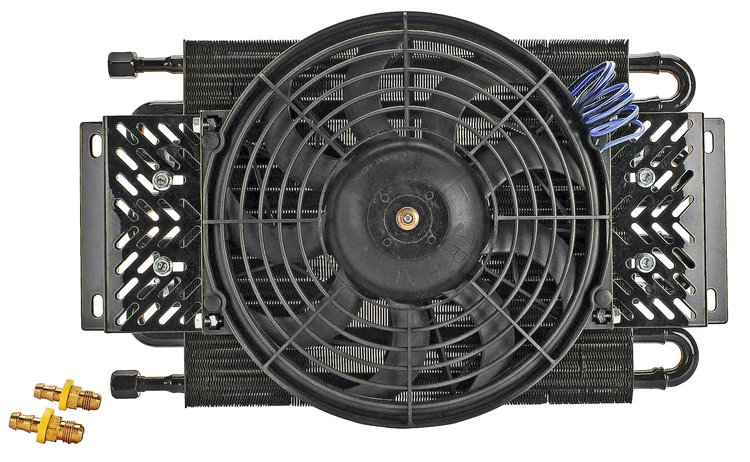

High-Performance Transmission Cooler with Fan [26,000 GVW]
$15399
More than 10 available
Ships Today
Lowest Price GuaranteeHP Automatic Transmission Coolers with Fan 26,000 GVW
High-Performance Transmission Cooler with Fan26,000 GVW (Gross Vehicle Weight) 11 in. x 18 1/2 in. x 3 1/2 in. Includes:
- 500 cfm Fan (5.6 Amp Draw)
- (2) 9/16 in.-18 Male Flare Hose Barb Fittings to 3/8 in. Hose
- (2) Mounting B
JEGS 555-60345 High-Performance Transmission Cooler Features:
- Keep your transmission fluid cool with a 26,000 GVW cooler and fan
- Cooler size: 11 in. x 18 1/2 in. x 3 1/2 in.
- Fan size: 11 in. diameter, 500 cfm, with 5.6 amp draw
- Pusher or puller option for the fan depending on your needs
- Black powder coated cooler for long life and good looks
JEGS 555-60345 High-Performance Transmission Cooler Note:
The fan in this kit is assembled as a pusher. The location of your unit is very important for proper airflow. To convert your fan to a puller you will need to reverse the fan blade and also the wiring connection. See instructions for more details.
Protect Your Transmission with a Performance Cooler
JEGS High-Performance Transmission Coolers are ultrasonically soldered, electrostatically powder-coated, and pressure tested at 150 psi for complete reliability. You can add more performance to your transmission by evenly distributing air over the cooler's surface with a stator fan/cooler combination.
Part TypeFluid Cooler
Product LineJEGS High Performance Transmission Coolers
BrandJEGS
Package Height4.2
Package Width11.5
Package Length19.3
Weight5.1 PG
Part CategoryPerformance Parts
Overall Thickness3.5 in (88.9 mm)
Overall Height11 in (279.4 mm)
Outlet Size9/16-18
QuantitySold individually
Cooler ConstructionTube and fin
Fluid TypeAutomatic transmission fluid
Inlet AttachmentFemale Threads, Hose barb
Inlet Size (In.)9/16-18
Core Height10 in (254 mm)
Core Thickness0.75 in (19.05 mm)
Number Of Cooling Rows8
Core Width12 in (304.8 mm)
Outlet AttachmentFemale Threads, Hose barb
Overall Width18.5 in (469.9 mm)
Cooler MaterialAluminum
Part FitmentUniversal
Maximum Fan Cfm500 cfm
FinishBlack
Vendor Part Number53230
Package Qty1
Package TypeEA
No Questions
No Reviews
