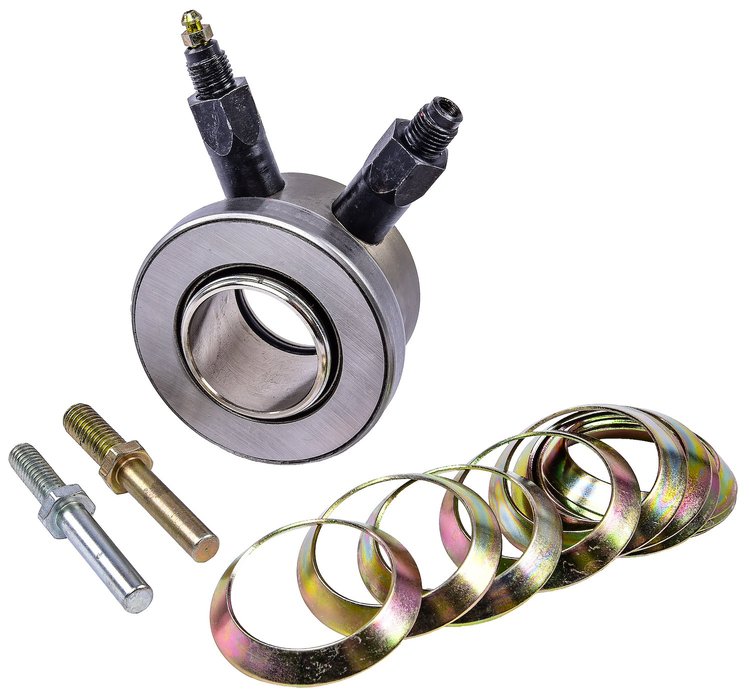

This JEGS 601126 Hydraulic Throwout Bearing is the perfect solution to convert a T5 Transmission-equipped muscle car, hot rod, or race car to a hydraulic-release bearing system. Making the switch will make installing the clutch and transmission easier, and it eliminates the need for factory clutch release linkages that typically bind and take up header/exhaust space. It also removes the need for adjustment, maintenance, and helps improve the pedal feel.

JEGS 555-601126 Hydraulic Throwout Bearing Features:

• 3/4 in. bore master cylinder recommended
• Simple installation, replace one bolt on the front of the transmission with one of the two provided studs, then use the provided shims for correct fitment
• Retainer to prevent seal damage and overextension
• Can fit behind thicker aftermarket clutch pressure plates
• CNC-machined housing
• (10) 0.050 in. thick shims
• (2) Course thread retaining studs (5/16 in. -18 & 3/8 in. -16)
• Bleeder screw included for easy internal bellhousing bleeding
• Each fitting is tapped internally to accept the bleeder

JEGS 555-601126 Hydraulic Throwout Bearing Dimensions:

• Inside diameter: 1.379 in.
• Outside diameter: 2.690 in.
• Travel: 0.549 in.
• Compressed Length: 1.516 in.
• Extended length: 2.065 in.
• Fitting size: -4 AN male

Important Notes: This JEGS throw-out bearing is designed for use with a stock clutch only! Do Not use this bearing with a racing clutch, as catastrophic damage will occur. Use DOT 3 or equivalent non-silicone brake fluid.
