GM 10-Bolt Ring & Pinion with Install Kit 8.5" Diameter Ring Gear (Corporate/New Style)

Name: GM 10-Bolt Ring & Pinion with Install Kit 8.5" Diameter Ring Gear (Corporate/New Style)
Brand: JEGS
SKU: 555-60030K
Price: 333.55 USD
Availability: InStock

^$333⁵⁵

Ships Tomorrow

Lowest Price Guarantee

GM 10-Bolt 8.5" (Corporate)

GM 10-Bolt Ring & Pinion with Install Kit

8.5" Diameter Ring Gear (Corporate/New Style)

3.42 Ratio

41-12 Teeth

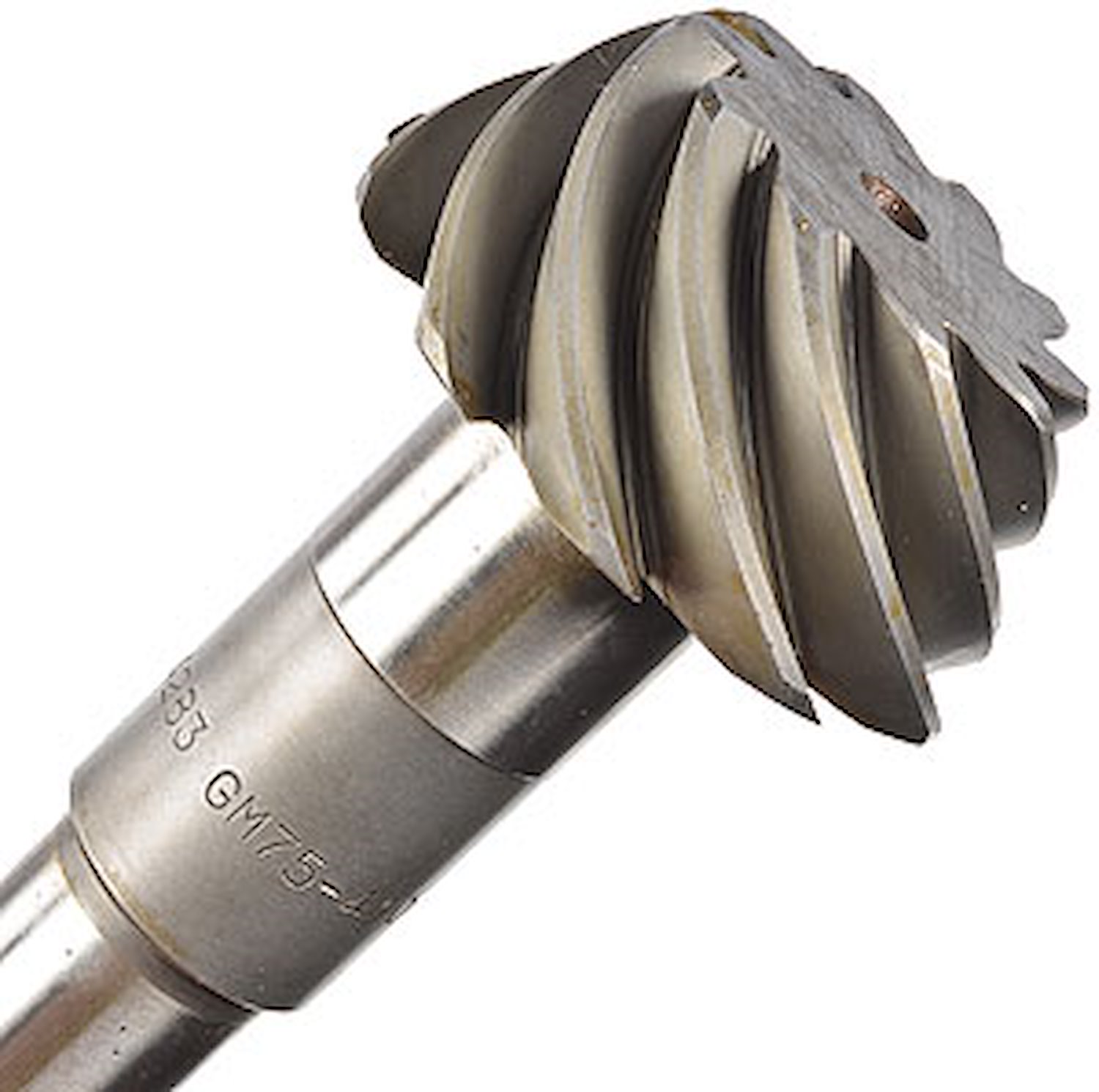

30 Spline Pinion

When replacing a stock 2.56 and numerically lower ratio, the carrier must be replaced with a carrier of 2.73 or higher
Does not work with pinion-mounted ABS sensor
1.626" Pinion Diameter
30 Spline Pinion
10-Bolt Cover
Fits: (with new-style 10-bolt housing)
1970-76 Bel-Air/Caprice/Impala/Chevelle/Olds F-85
1973-76 El Camino
1970-75 Nova
1970-81 Camaro/Firebird/GTO
1972-81 Z-28/Trans-Am
1977-87 K10/K20 (front)
1977-91 Blazer (front)
1980-02 C10/K10/Blazer/C1500/K1500 (rear)
1980-96 Suburban (rear)
1977-91 Suburban (front)
1979-96 G10/G20 Van

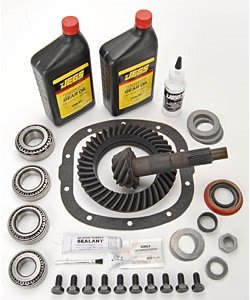

Includes:
Pinion and carrier bearings & shims
Pinion nut & seal
Crush sleeve
Cover gasket or RTV
Ring gear bolts
75W-90 synthetic differential lube (2 quarts)
Limited slip additive (4 ounces)
Thread locker sealant
Marking compound
Application Brush
Installation instructions
