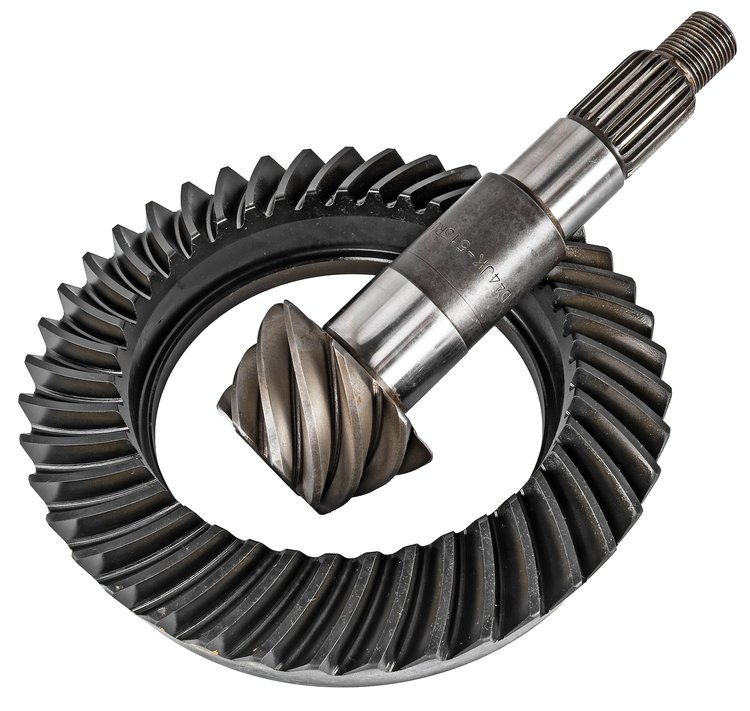

Dana 44 Ring & Pinion for 2007-2018 Jeep Wrangler JK, Rear [5.13 Ratio]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-600105

Dana 44 Ring & Pinion for 2007-2018 Jeep Wrangler JK, Rear [5.13 Ratio]

$23799$261.99You Save$24.00
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Dana 44 Rear
Dana 44 Ring & Pinion
  • 2007-2018 Jeep Wrangler JK
  • Rear
  • 5.13 Ratio
  • 41 Ring Gear & 8 Pinion Gear Teeth
  • 24 Spline Pinion
  • Attaches with 10 Ring Gear Bolts
  • High-Grade Steel

    JEGS 555-600105 Dana 44 Ring and Pinion Includes:

    • (1) Gear Marking Compound with Brush
    • (1) Tube of RED Thread Locker
    • (1) Tube of RTV Silicone Gasket Maker

    JEGS 555-600105 Dana 44 Ring and Pinion Features:

    • Gear tooth surface finish is designed to reduce friction and heat
    • Constructed from high-grade steel with fitment designed to OEM specifications

    JEGS 555-600105 Dana 44 Ring and Pinion Specifications:

    • 5.13 Ratio, 41 Ring Gear and 8 Pinion Gear Teeth

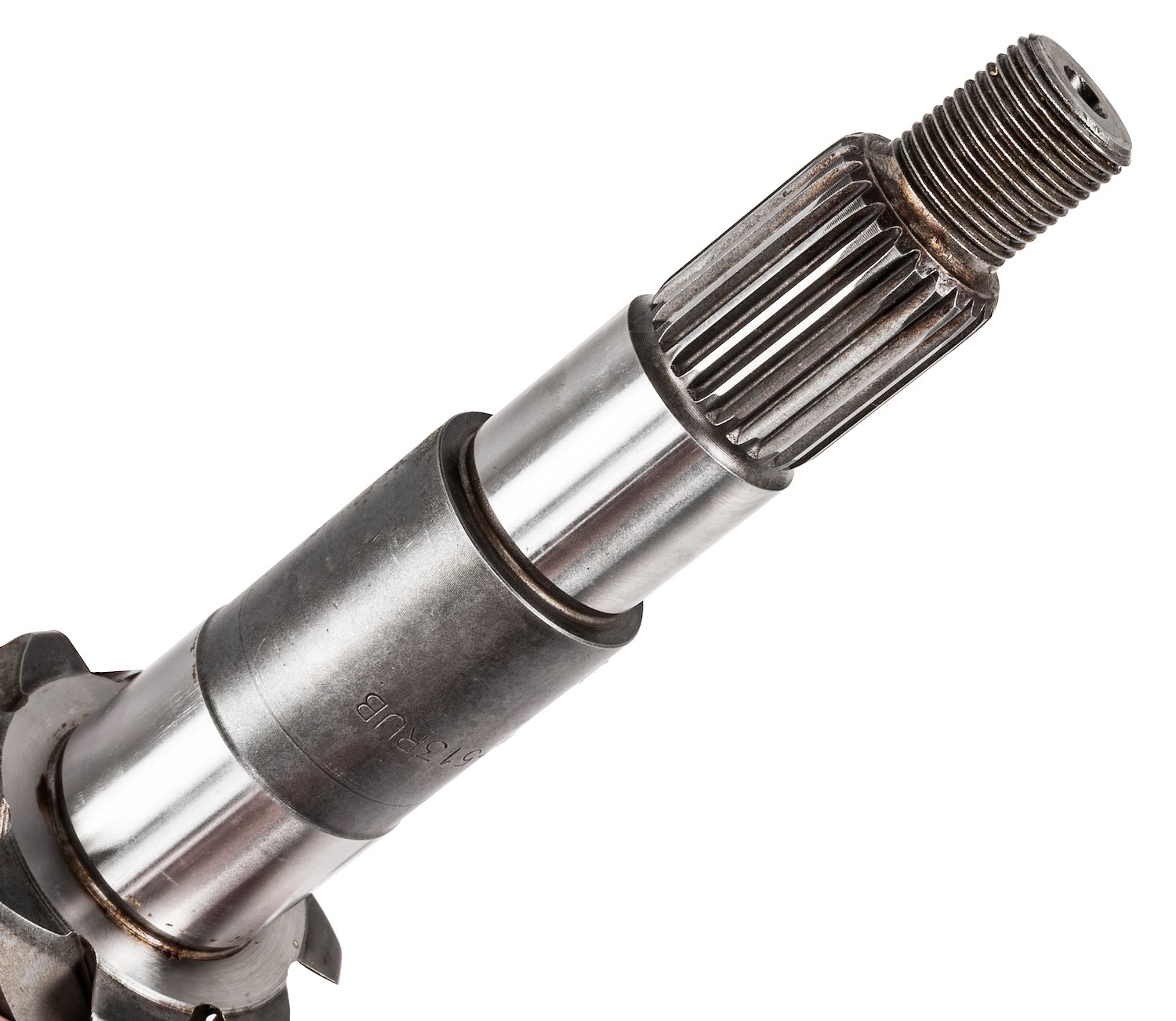

    • 24 Spline Pinion Shaft
    • Attaches with 10 Ring Gear Bolts
    • 8.890 in. Ring Gear Diameter
    • 1.625 in. Pinion Shaft Diameter

    JEGS 555-600105 Dana 44 Ring and Pinion Notes:

    • Fits Rubicon and Non-Rubicon Dana 44 Jeep Wrangler JK Rear Differentials
    • Part TypeRing and Pinion
    BrandJEGS
    Package Height6.5
    Package Width12.5
    Package Length16.1
    Weight17.32 PG
    Part CategoryReplacement Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth8
    Carrier Bearings IncludedNo
    Carrier Shims IncludedNo
    Crush Sleeve IncludedNo
    Pinion Spline Count24
    Pinion Nut IncludedNo
    Axle LocationRear
    Ring And Pinion Ratio5.13:1
    Pinion Shaft Diameter1.625 in.
    Axle Bearings IncludedNo
    Cover Bolts10
    Carrier Breaks3.92 and Up
    Pinion Seal IncludedNo
    Friction Modifier IncludedNo
    Axle Seals IncludedNo
    Head Bearing IncludedNo
    Cover Gasket IncludedNo
    Ring Gear Bolts IncludedNo
    Tail Bearing IncludedNo
    Pinion Shims IncludedNo
    Ring Gear Diameter8.890 in.
    Differential Oil IncludedNo
    Differential Cover IncludedNo
    Installation Kit IncludedNo
    Axle TypeDana 44, Jeep Wrangler JK
    Ring Gear Bolts10
    Ring Gear Teeth41
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
