Vortec Cylinder Heads & High Rise Intake Manifold Kit for 1996-2002 Chevy 5.7L Small Block Engine [Satin Dual Plane]

Vehicle Info Needed

JEGSPART NUMBER: 555-514175

Vortec Cylinder Heads & High Rise Intake Manifold Kit for 1996-2002 Chevy 5.7L Small Block Engine [Satin Dual Plane]

Name: Vortec Cylinder Heads & High Rise Intake Manifold Kit for 1996-2002 Chevy 5.7L Small Block Engine [Satin Dual Plane]
Brand: JEGS
SKU: 555-514175
Price: 1440.52 USD
Availability: InStock

^$1,440⁵²

More than 10 available

Ships Tomorrow

Lowest Price Guarantee

5.7L V8

Vortec Cylinder Heads & Intake Manifold Kit

1996-2002 Chevy w/5.7L Eng.

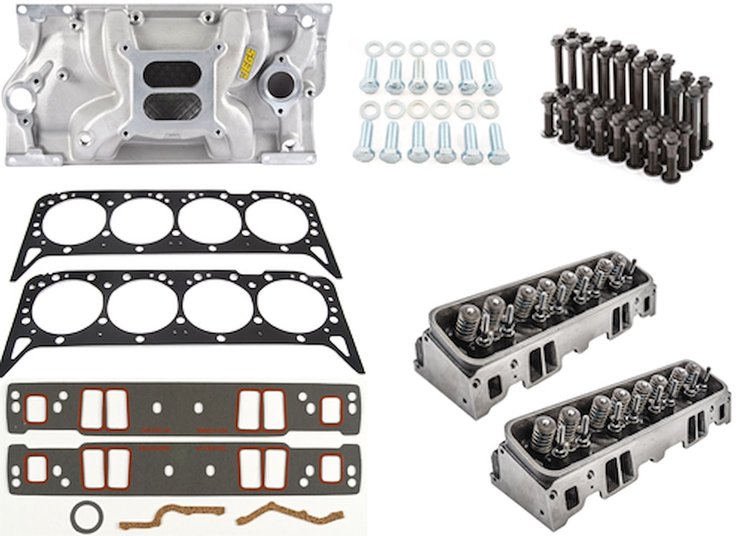

Includes:

Cylinder Heads
Satin High Rise Dual Plane Intake Manifold
Intake Manifold Gaskets
Head Gaskets
Head Bolt Kit
Intake Manifold Bolt Kit

JEGS 555-514175 Vortec Cylinder Heads & Dual Plane Intake Manifold Kit Includes:
- (2) Cast Iron Vortec Cylinder Heads 555-514080
- (1) Intake Manifold 555-513002
- (1) Pair of Intake Manifold Gaskets 555-210003
- (2) High-Temp Cylinder Head Gaskets 555-210041
- (1) Head Bolt Kit 555-83400
- (1) Intake Manifold Bolt Kit 555-83201
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCylinder Head

BrandJEGS

Part CategoryPerformance Parts

Cylinder Head MaterialCast iron

Intake MaterialAluminum

Intake StyleDual plane

Rocker Arm Nut Thread Size (In.)3/8"-24

Intake FinishNatural

Exhaust Valves IncludedYes

Locks IncludedYes

Intake Manifold IncludedYes

Engine Make/SizeChevy 5.7L (Vortec)

Retainers IncludedYes

Guideplates IncludedNo

Gaskets IncludedYes

Cylinder Head Bolts IncludedYes

Cylinder Head FinishNatural

Maximum Valve Lift0.475 in (12.065 mm)

Rocker Arm Nut Thread Size3/8-24 in.

Number Of Springs Per ValveSingle

Valve Springs IncludedYes

Spark Plug StyleStraight

Guideplate Pushrod Size0.313 in (7.95 mm)

Intake Valves IncludedYes

QuantitySold as a kit

Valve Stem Seals IncludedYes

MaterialCast Iron

Intake Valve Diameter1.94 in (49.276 mm)

Exhaust Runner Volume (Cc)61

Outside Diameter Of Outer Spring1.25 in (31.8 mm)

Combustion Chamber Volume (Cc)64

Rocker Arm Studs IncludedYes

Cylinder Head StyleAssembled

Part FitmentSemi Universal

Intake Runner Volume (Cc)170

Exhaust Valve Diameter1.5 in (38.1 mm)

Package Qty1

Package TypeEA
