![Small Block Chevy Aluminum Cylinder Head Kit [Hydraulic Flat Tappet Cam, 205 cc Intake Ports, Straight Spark Plug Style]](https://www.jegs.com/images/mini_750/500/555/555-514067k.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-514067K

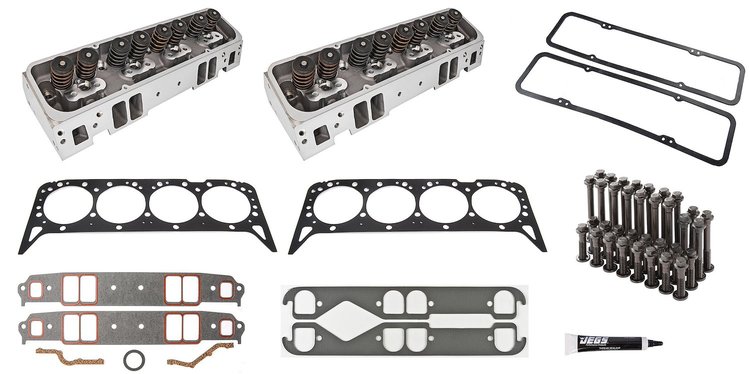

Small Block Chevy Aluminum Cylinder Head Kit [Hydraulic Flat Tappet Cam, 205 cc Intake Ports, Straight Spark Plug Style]
$1,59152
More than 10 available
Ships Tomorrow
Lowest Price GuaranteeSmall Block 205 cc
Small Block Chevy Aluminum Cylinder Head KitIncludes:
- (2) Cylinder Heads
- Intake Manifold Gasket Set
- Exhaust Header Gaskets
- (2) High-Temp Cylinder Head Gaskets
- Valve Cover Gaskets
- Head Bolt Kit
- Thread Sealant
JEGS 555-514067K Small Block Chevy Aluminum Cylinder Head Kit Includes:
- (2) JEGS Small Block Chevy Aluminum Cylinder Head for use w/Hydraulic Flat Tappet Cam [205 cc Intake Ports, Straight Spark Plug Style] 555-514067
- (1) JEGS Intake Manifold Gasket Set for Small Block Chevy 555-210000
- (1) JEGS Exhaust Header Gaskets for Small Block Chevy 555-210052
- (2) JEGS High-Temp Cylinder Head Gasket for Small Block Chevy 555-210041
- (1) JEGS Valve Cover Gaskets for Small Block Chevy 555-210071
- (1) JEGS High-Strength Head Bolt Kit for Small Block Chevy [6-Point Hex Head] 555-83400
- (1) JEGS Thread Sealant [1/2 oz Tube] 555-28011
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandJEGS
Exhaust Valve MaterialStainless Steel
Retainers IncludedYes
Intake Port ShapeRectangular
Guideplates IncludedYes
Oiling StyleThrough pushrod
Valve Seats MachinedYes
Heat CrossoverNo
Intake Valve MaterialStainless Steel
Camshaft StyleFlat Tappet
Number Of Springs Per ValveDual
Spark Plug StyleStraight
Valve Stem Seals IncludedYes
Intake Valve Diameter2.020 in.
Valve Guide MaterialManganese bronze intake/Phosphorous bronze exhaust
Rocker Arm Studs IncludedYes
Retainer MaterialChromoly steel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.600 in.
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Rocker Arm Nut Thread Size (In.)3/8"-24
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeChevy Small Block
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle23
Maximum Valve Lift0.535 in.
Valve Seat MaterialDuctile iron
Valve Springs IncludedYes
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
Combustion Chamber StyleHeart
QuantitySold as a kit
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)78
Exhaust Port LocationStandard
Combustion Chamber Volume (Cc)68
Machined For O-RingNo
Exhaust Valve Angle23
Cylinder Head StyleAssembled
Valve Stem Diameter0.3415 in.
Part FitmentSemi Universal
Valve Cover Mounting StyleCenter and perimeter bolt
Intake Runner Volume (Cc)205
Cnc-Machined Exhaust RunnerNo
Package Qty1
Package TypeEA
