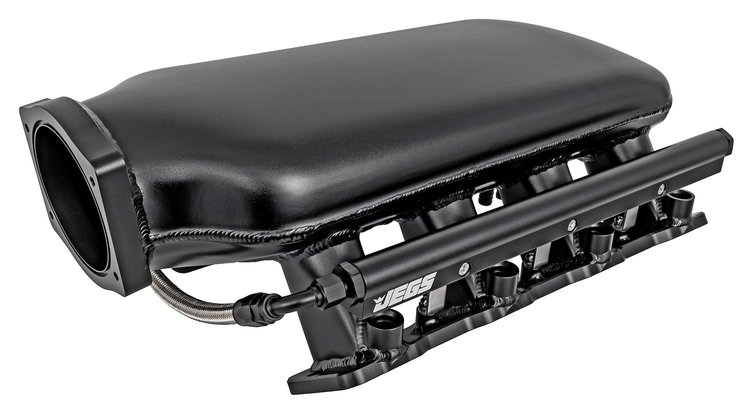

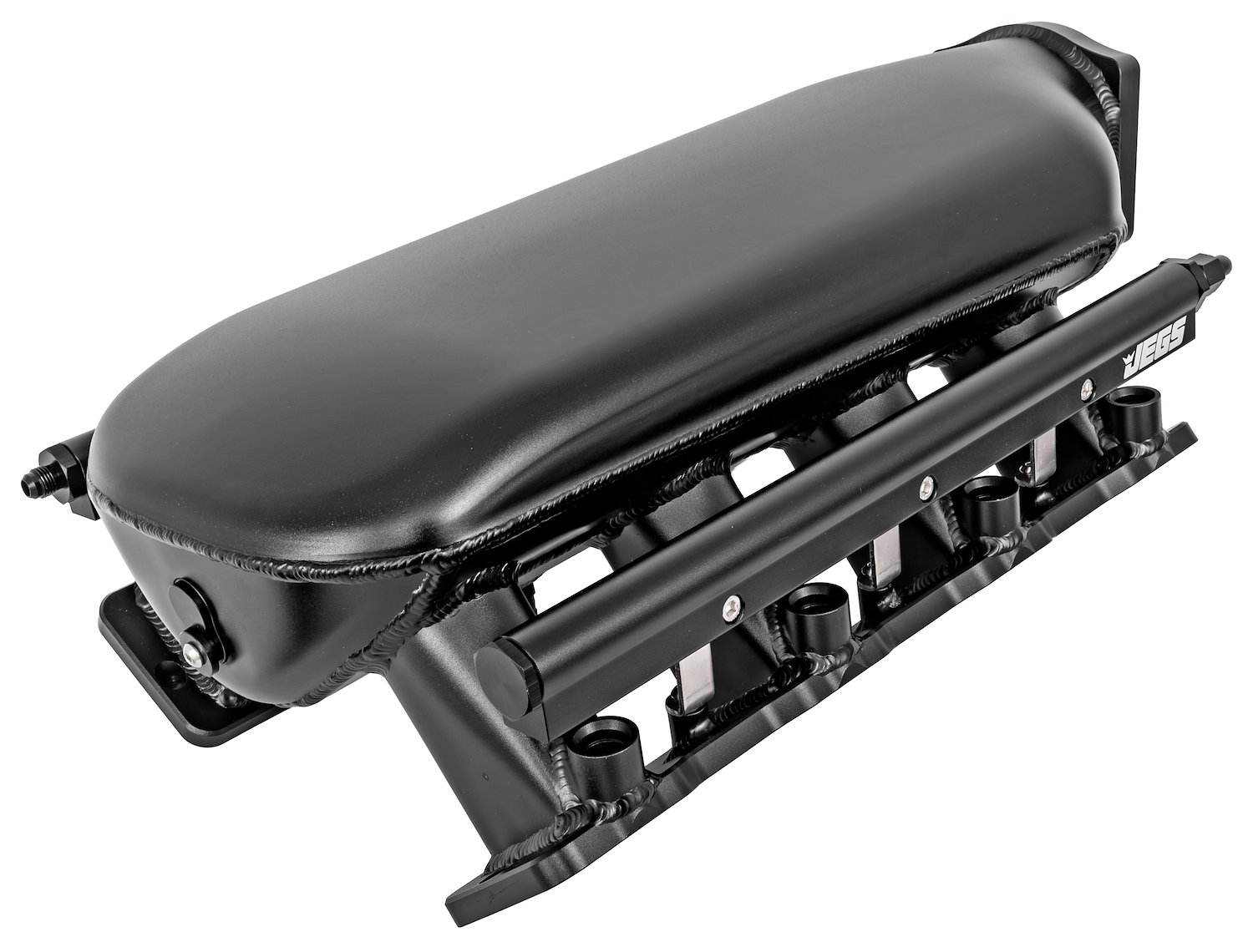

Fabricated Aluminum Tall-Profile Intake Manifold for GM Gen III/IV LS Engines w/Rectangular Port LS3, L76, L92, L99-Style Heads

Name: Fabricated Aluminum Tall-Profile Intake Manifold for GM Gen III/IV LS Engines w/Rectangular Port LS3, L76, L92, L99-Style Heads
Brand: JEGS
SKU: 555-513052
Price: 499.99 USD
Availability: InStock

^$499⁹⁹$549.99You Save$50.00

More than 10 available

Ships Today

Lowest Price Guarantee

Rectangle Port

Fabricated Aluminum Intake Manifold

GM Gen III/IV LS

Rectangular Port LS3/L76/L92/L99

Tall-Profile

102 mm Throttle Bore

Black

Includes:

-6 AN Fuel Rail Kit
MAP Sensor Port Provision
Vacuum Ports
Intake Seals
Hardware

JEGS 555-513052 Fabricated Intake Manifold Includes:
- Fuel rail kit -6 AN w/crossover
- Intake seals
- MAP sensor port
- Hardware
- Vacuum port fittings:
  - (1) 1/8 in. NPT x 1/4 in. barb
  - (1) 1/8 in. NPT x 5/16 in. barb
  - (1) 1/8 in. NPT x 7/16 in. barb
  - (1) 1/4 in. NPT x 1/2 in. barb
JEGS 555-513052 Fabricated Intake Manifold Features:
- Fits GM Gen III/IV LS Engines w/Rectangular Port LS3/L76/L92/L99-Style Heads
- 102 mm Throttle Bore
- Fabricated from aluminum and finished in black
JEGS 555-513052 Fabricated Intake Manifold Dimensions:
- Throttle Body Opening: 102 mm
- Front Height: 7.875 in.
- Rear Height: 6.875 in.
- Front of Engine Block to Intake Front: 3.125 in.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold

BrandJEGS

Package Height11.3

Package Width17.6

Package Length25.3

Weight21.57 PG

Part CategoryPerformance Parts

Engine Block Deck HeightStandard deck

Aftermarket Fuel Rail RequiredYes

Runners RemovableNo

Throttle Body IncludedNo

Supplemental Bosses Cast-InNo

Plenum MaterialAluminum

QuantitySold individually

Cylinder Head ConfigurationRectangular Port LS3/L76/L92/L99

Injectors IncludedNo

RemanufacturedNo

Base ColorBlack

Intake Section IncludedComplete

Basic Operating Rpm Range4,000-8,000

EgrNo

Supplemental Bosses MachinedYes

Throttle Body Bore Size102mm

Runners IncludedYes

Fuel Injection StyleMulti-port

Multi-Port Fuel Rails IncludedYes

Part FitmentSemi Universal

Supplemental Boss QuantityFour

NotesTall profile design. 8.270 in. height. Includes runner o-rings and throttle body o-ring. The included hose barb fittings are 1/8 in. NPT x 1/4 in., 1/8 in. NPT x 5/16 in., 1/8 in. NPT x 7/16 in. and 1/4 in. NPT x 1/2 in. Plenum volume is 9.7 liters.

Base MaterialAluminum

Plenum FinishBlack

Package Qty1

Package TypeEA
