Vehicle Info NeededJEGSPART NUMBER: 555-50292

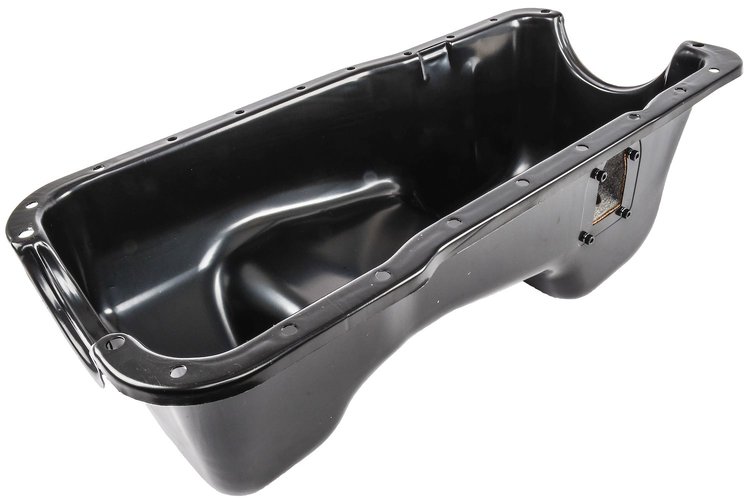

Engine Swap Oil Pan Kit for 1979-1995 Ford Mustang & Fox Body Chassis with 1969-1996 Ford 351W 5.8L Engine Swap
$24599$266.99You Save$21.00
6 left in stock
Ships Tomorrow
Lowest Price GuaranteeEngine Swap Oil Pan Kit1979-1995 Mustang & Fox Body Chassis Ford 351W 5.8L Engine Swap 1969-1996 Blocks 5-quart Capacity Painted Black Steel Includes:
- Rear Sump Oil Pan
- 5/8"-18 Dipstick w/ Tube
- Pickup
- Main Cap St
JEGS 555-50292 Engine Swap Oil Pan Kit Features:
- Fits 1979-1995 Ford Mustang & Fox Body Chassis
- Fits the following Ford 351w/5.8L engines: 1983-1996 block (1-piece rear main seal) and 1969-1992 block (2-piece rear main seal)
- Dimensions: 20.33 in. long x 7.75 in. rear sump depth x 6.625 in. front sump depth
- Capacity: 5 quarts
- Bolt-in provision for supplied dipstick
JEGS 555-50292 Engine Swap Oil Pan Kit Notes:
- Will Not work with high-volume oil pumps

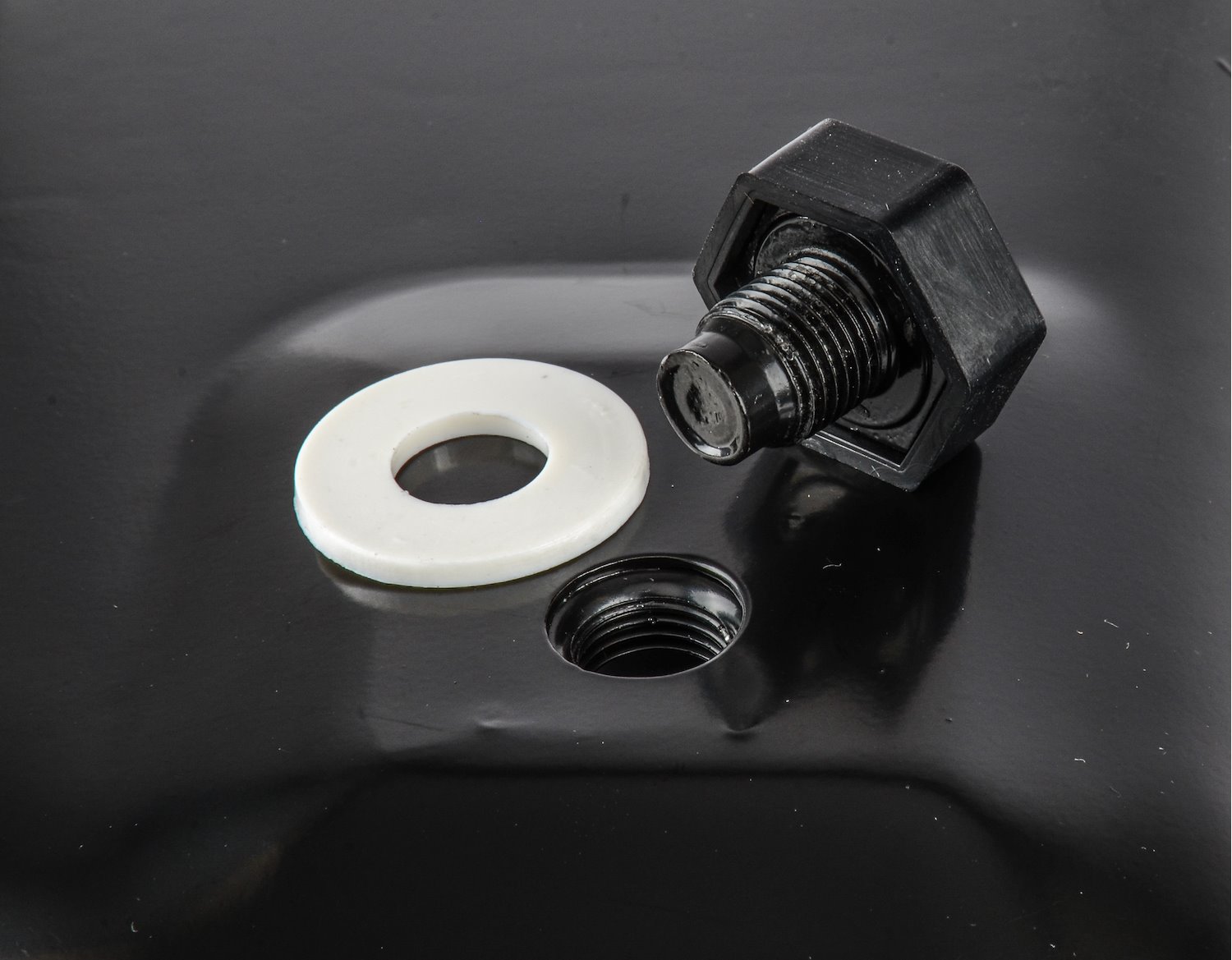

An ideal kit for engine swaps, JEGS Ford 351W Oil Pan Kit is made for 1979-1995 Mustangs and Fox chassis and fits 1969-1997 production blocks. This rear sump oil pan comes complete with a pickup tube to help you clear steering and cross members, dipstick and tube with billet aluminum knob, a main cap stud and both drain plugs.
Features:
- 5-quart capacity
- Fits 1969-1997 blocks & 1979-1995 chassis
- Same pan as used on 351W crate engines
- Painted black steel
Part TypeOil Pan
Product LineJEGS Ford Oil Pan Kit
BrandJEGS
Package Height10.5
Package Width13.7
Package Length23.4
Weight10.88 PG
Part CategoryPerformance Parts
Oil Pan Capacity5 quarts
Hardware IncludedNo
Dipstick ProvisionYes
Sump StyleWet
Pickup IncludedYes
Drain Plug Thread Size (In.)1/2-20
QuantitySold as a kit
Oil Pan FinishBlack painted
Dipstick IncludedYes
Oil Pump IncludedNo
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.5 in (88.9 mm)
Gaskets IncludedNo
Oil Pan Depth7.75 in (196.9 mm)
Rear Main Seal Style1-piece, 2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedNo
Mount Hole Quantity11
Package Qty1
Package TypeEA
