Vehicle Info NeededJEGSPART NUMBER: 555-50238

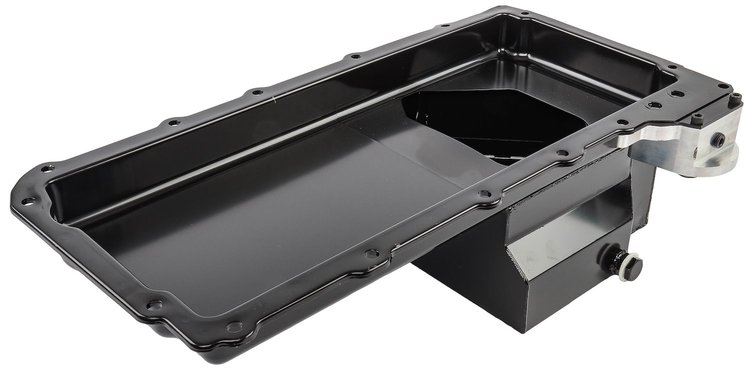

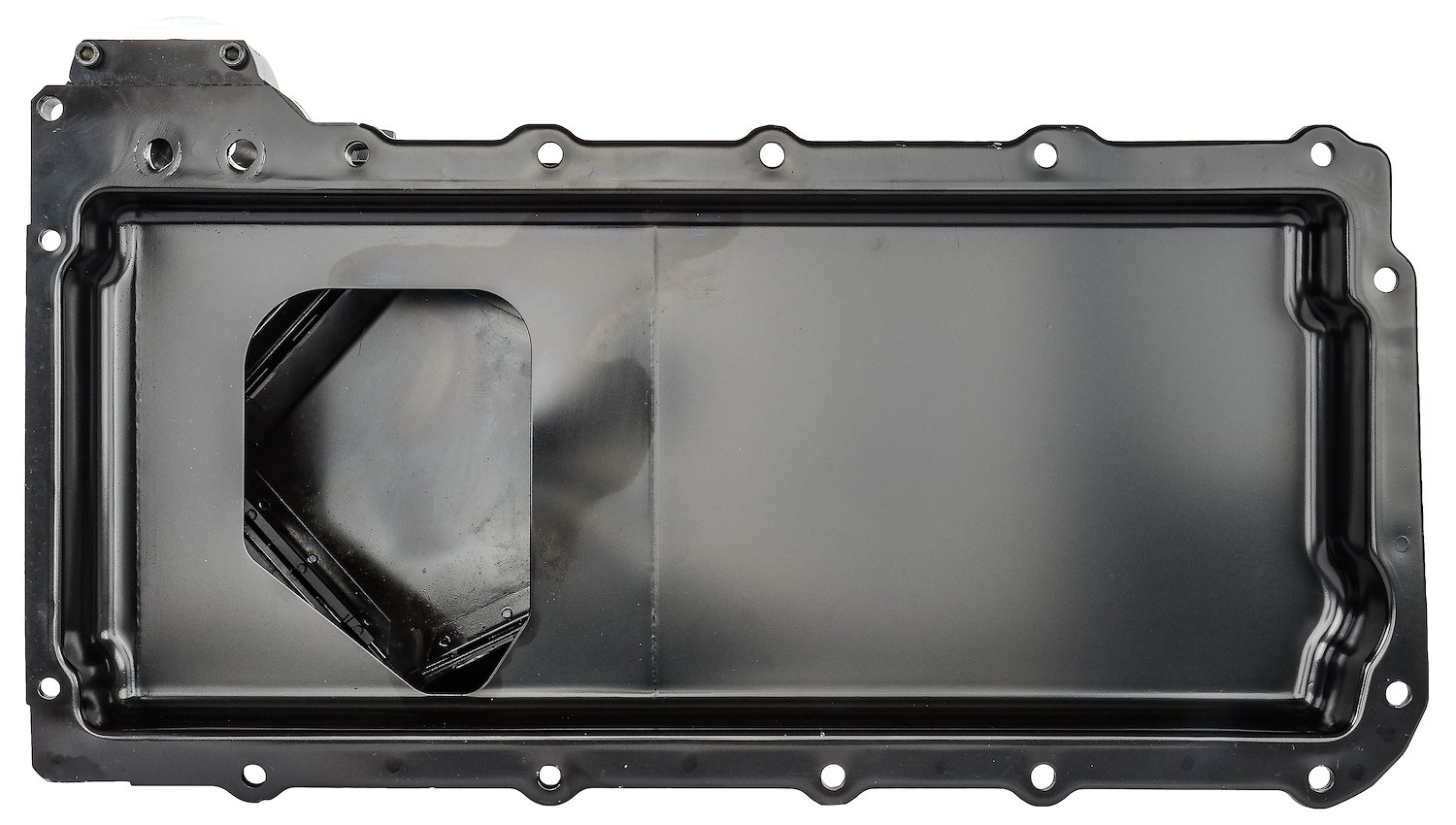

Street & Strip GM LS Engine Swap Oil Pan
$36499$401.99You Save$37.00
2 left in stock
Ships Today
Lowest Price GuaranteeOil Pans
Street & Strip GM LS Engine Swap Oil PanGM LS-Series Engines 7-Quart Capacity + Filter Baffled Steel Black Powdercoat Includes:
- Billet Oil Filter Mount in Stock Location with 1/2 in. Port
- (1) Magnetic Drain Plug
JEGS 555-50238 Engine Swap Oil Pan Features:
- Fabricated from heavy-duty 14-gauge steel
- Designed to work with multiple GM chassis
- Accepts oil filters with 13/16 in.-16 thread such as 410-PH3506, 599-HP-1007, or 599-PS-1007
- Requires Oil Pump pick-up tube. We recommend JEGS oil pump pick up tube 555-50247
- Retains stock oil filter location
Applications:
- 1967-1992 Camaro
- 1968-1978 Nova
- 1965-1972 Chevelle
- 1953-1996 Corvette
- 1978-1988 GM G-Body
- 1978-1988 Chevy S-10/S-15 Blazer
- 1978-1988 GM 2WD Full-Size Truck
JEGS 555-50238 Engine Swap Oil Pan Notes:
- Front pan depth: 1 13/16 (.8125) in.
- Rear pan depth: 6 in.
- Rear pan width: 9 5/16 (.3125) in.
Dimensions:
Part TypeOil Pan
BrandJEGS
Package Height8.6
Package Width14.4
Package Length24.2
Weight13.45 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
UsageStreet/Performance
Dipstick ProvisionNo
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
Kickout PositionDriver and passenger side
Maximum Stroke With Oe Rod4.125 in (104.775 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Package Qty1
Package TypeEA
