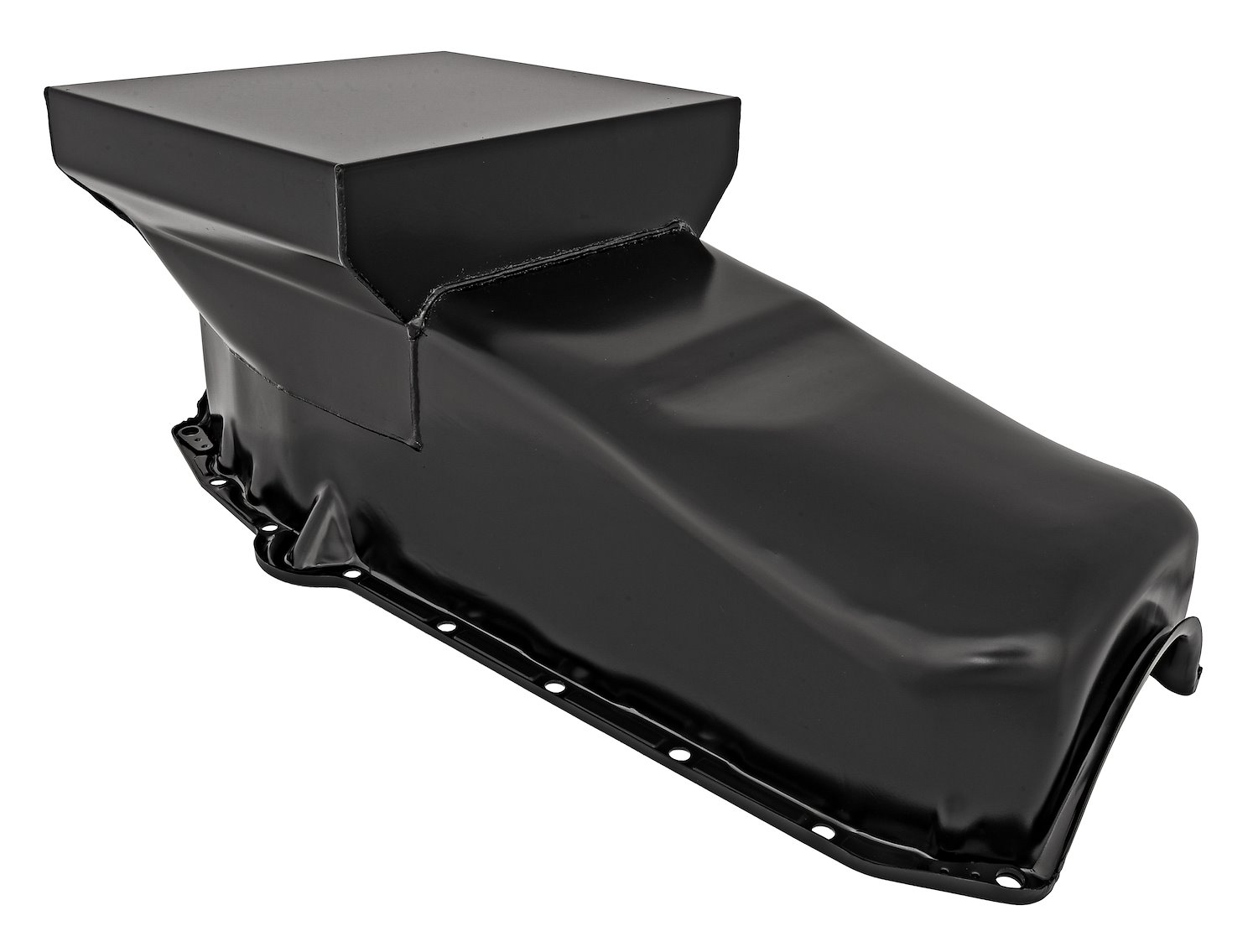

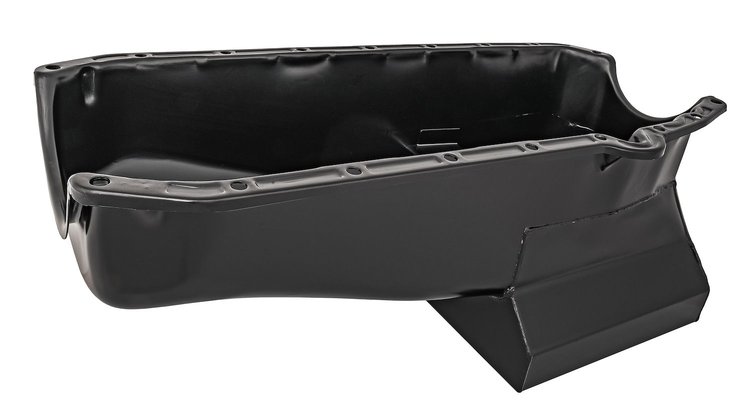

Street & Strip II Oil Pan for 1955-1979 Small Block Chevy w/2-Piece Rear Main Seal [Black]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-502112

Street & Strip II Oil Pan for 1955-1979 Small Block Chevy w/2-Piece Rear Main Seal [Black]

$12199$128.99You Save$7.00
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Chevy
Street & Strip II Oil Pan
  • 1955-1979 Small Block Chevy (2-Piece Rear Main)
  • Fits Most Chassis Except 1962-1967 Chevy II
  • Left-Hand Dipstick
  • 7 Quarts Plus Filter
  • Steel
  • Black Powder Coated Finish
  • Sold Individually

    JEGS 555-502112 Street & Strip II Oil Pan Features:

    • Fits 1955-1979 Small Block Chevy with 2-piece rear main seal engines such as 283, 305, 307, 327, 350, 383 (stroker), 400, and others based on the popular platform
    • Fits most chassis except 1962-67 Chevy II
    • Ideal for street or strip applications with a low-profile design for more ground clearance
    • Oil control baffles reduce windage for HP gains
    • Steel with a black powder-coated finish for corrosion protection
    • Oil capacity: 7 quarts plus filter
    • Specifications: left-hand dipstick

    JEGS 555-502112 Small Block Chevy Oil Pan Notes:

    • Designed to work with JEGS 555-502080 oil pump pickup (Sold separately)
    • Does not fit 1962-1967 Chevrolet Chevy II
    • Does not fit Chevelle's with steering behind the cross member
    • Does not fit Chevy Monza/Vega

      • Low-Profile Oil Pans That Increase Horsepower

      JEGS Street & Strip II Oil Pans have a low profile that provides ground clearance and sufficient oil capacity for most high-performance engines. Oil control baffles help with windage reduction to improve horsepower.

    Part TypeOil Pan
    Product LineJEGS Street & Strip II Oil Pans
    BrandJEGS
    Package Height9.0
    Package Width11.5
    Package Length22.7
    Weight10.6 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity7 quarts
    Hardware IncludedNo
    Dipstick ProvisionYes
    BaffledYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    QuantitySold individually
    MaterialSteel
    Maximum Stroke With Oe Rod3.75 in (95.25 mm)
    Gaskets IncludedNo
    Oil Pan Depth8.5 in (215.9 mm)
    Rear Main Seal Style2-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Dipstick LocationDriver
    Part FitmentSemi Universal
    Kicked OutYes
    FinishBlack Powder Coated
    Stroker ClearancedNo
    Package Qty1
    Package TypeEA
