Street & Strip II Oil Pan for 1986-2002 Small Block Chevy (1-Piece Rear Main)
InfoVehicle Info Needed
JEGSPART NUMBER: 555-502015

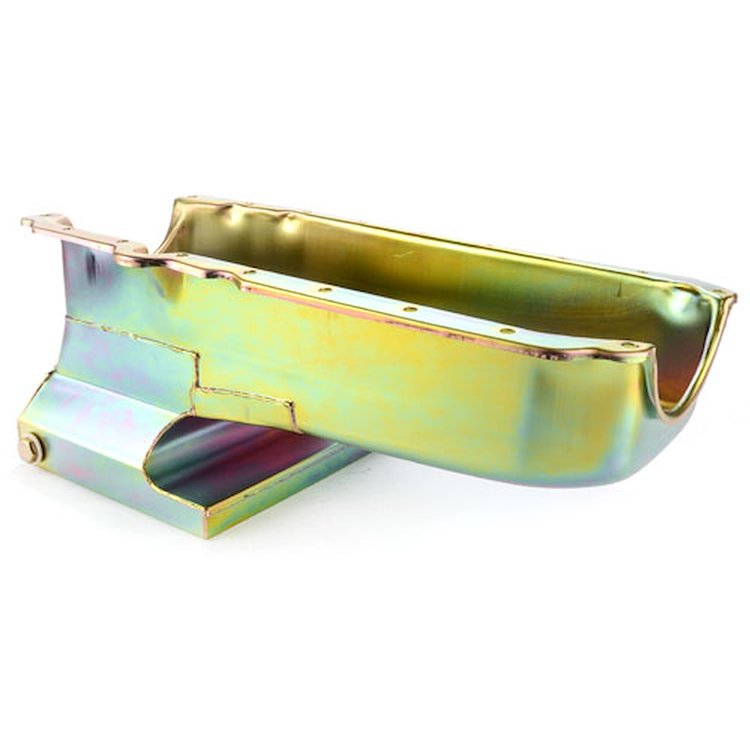

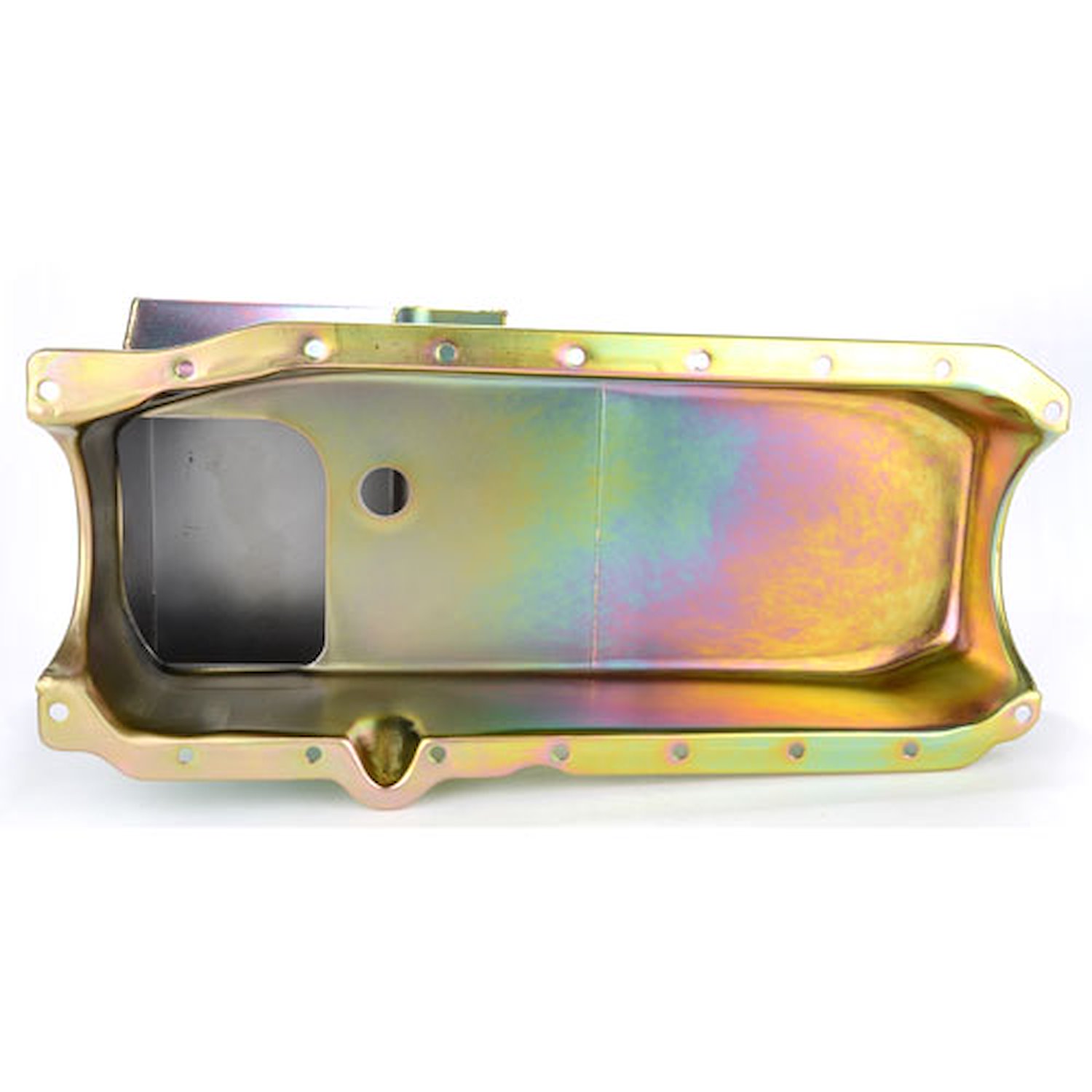

Street & Strip II Oil Pan for 1986-2002 Small Block Chevy (1-Piece Rear Main)

$16699$183.99You Save$17.00
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Chevy
Street & Strip II Oil Pan
  • 1986-2002 Small Block Chevy (1-Piece Rear Main)
  • Will Fit 1962-1967 Chevy II Models
  • Right-Hand Dipstick
  • 6-Quarts Plus Filter
  • Steel
  • Gold Zinc Plated Finish
  • Sold Individually

    JEGS 555-502015 Small Block Chevy Street & Strip II Oil Pan Features:

    • Ideal for street or strip applications
    • Will Fit 1962-1967 Chevy II Models when  converting to a 1986-2002 Small Block Chevy Engine
    • Low-profile design for more ground clearance
    • Oil control baffles reduce windage for HP gains
    • 6-quart capacity plus filter
    • Gold Zinc-plated steel for corrosion resistance
    • Part TypeOil Pan
    BrandJEGS
    Package Height10.6
    Package Width12.4
    Package Length24.3
    Weight10.81 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity6 quarts
    Hardware IncludedNo
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    Oil Pan TypeStamped/Fabricated
    Oil Pan FinishGold Zinc
    Engine Make/SizeSmall Block Chevy
    Oil Pan MaterialSteel
    Maximum Stroke With Oe Rod3.75 in (95.25 mm)
    Gaskets IncludedNo
    Oil Pan Depth8.5 in (215.9 mm)
    Rear Main Seal Style1-piece
    Sump LocationRear
    Engine ManufacturerChevrolet
    Oil Pan StyleStreet/Strip
    Dipstick LocationPassenger side
    Part FitmentSemi Universal
    Stroker ClearancedNo
    Package Qty1
    Package TypeEA
