![GM LS Ignition Coil for 2005-2020 Gen IV 4.8L, 5.3L, 6.0L, 6.2L, 7.0L Car & Truck Engines [RED]](https://www.jegs.com/images/mini_750/500/555/555-40167.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-40167

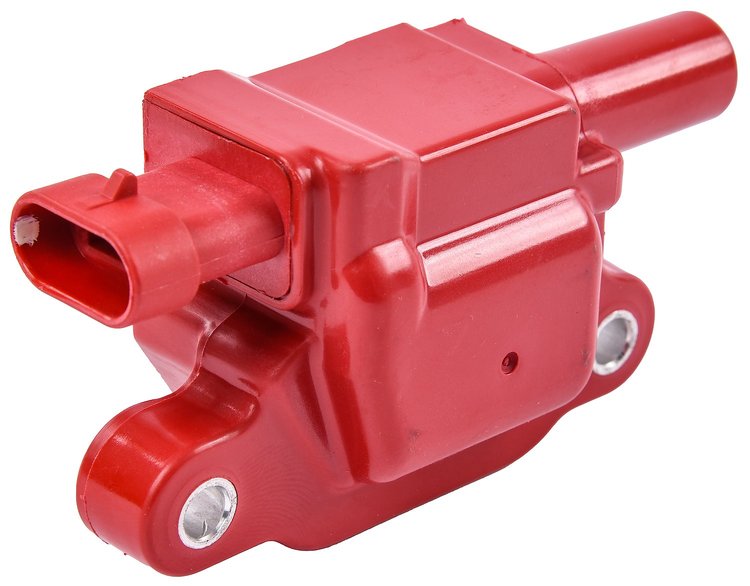

GM LS Ignition Coil for 2005-2020 Gen IV 4.8L, 5.3L, 6.0L, 6.2L, 7.0L Car & Truck Engines [RED]
$4299$61.99You Save$19.00
More than 10 available
Ships Today
Lowest Price GuaranteeGM LS Ignition Coils
GM LS Ignition Coil 2005-2020 Gen IV 4.8L, 5.3L, 6.0L, 6.2L, 7.0L Car & Truck Engines Replaces AC Delco D510C/D514A with Square Coils Sold Individually
Fits the following gm ls engines: buick - 2005-2007 5.3l vin: m, 2008-2009 5.3l vin: c; cadillac- 2006-2015 6.0l vin: 5, j, u, 2007-2014 6.2l vin: 2, 5, 8, 2009-2015 6.2l v8, supercharged vin: p, pontiac - 2005-2008 5.3l vin: c, 2005-2009 6.0l vin: u, y, 2009 6.2l vin: w Also fits: chevrolet & gmc - 2008-2017 4.8l vin: a, c, f, 2007-2013 5.3l vin: 0, 7, j, l, m, 2008-2014 5.3l v8 flex vin: 4, 2005-2020 6.0l vin: 2, b, g, h, k, u, y, 2009-2013 6.0l v8 electric/gas vin: 5, j, 2015-2020 6.0l flex vin: b, g, 2007-2017 6.2l vin: 2, 8, f, w, 2012-2015 6.2l v8 supercharged vin: p, r, t, 2014 6.6l v8 turbo diesel vin:l, 2007-2013 7.0l vin: e Replaces ac delco part numbers: d510c / d514a (with square coils) One per package, with other coil options available separately Specifications: red, 40,000 volts, primary resistance - 0.500 ohms, secondary resistance - 2.00k ohms, turns ratio - 75:01:00, epoxy filled, female socket
Fits These GM LS Engines:
Buick
- 2005-2007 5.3L Vin: M
- 2008-2009 5.3L Vin: C
Cadillac
- 2006-2015 6.0L Vin: 5, J, U
- 2007-2014 6.2L Vin: 2, 5, 8,
- 2009-2015 6.2L V8 Supercharged VIN: P
Chevrolet & GMC
- 2008-2017 4.8L Vin: A, C, F,
- 2007-2013 5.3L Vin: 0, 7, J, L, M
- 2008-2014 5.3L V8 FLEX VIN: 4
- 2005-2020 6.0L Vin: 2, B, G, H, K, U, Y
- 2009-2013 6.0L V8 ELECTRIC/GAS VIN: 5, J
- 2015-2020 6.0L Flex Vin: B, G,
- 2007-2017 6.2L Vin: 2, 8, F, W,
- 2012-2015 6.2L V8 Supercharged VIN: P, R, T
- 2014 6.6L V8 Turbo DIESEL VIN:L
- 2007-2013 7.0L Vin: E
Pontiac
- 2005-2008 5.3L Vin: C
- 2005-2009 6.0L Vin: U, Y
- 2009 6.2L Vin: W
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
High-Voltage for More Performance
JEGS High-Output Ignition Coils offer higher voltage and more energy than OEM coils. These coils are ideal for use in high-performance, supercharged, turbocharged, and nitrous engines. Each coil is produced from high-quality for durability and reliabilty.
Part TypeIgnition Coil
Product LineJEGS High-Output GM LS Ignition Coils
BrandJEGS
Package Height2.6
Package Width5.0
Package Length6.0
Weight0.7 PG
Part CategoryPerformance Parts
Primary Resistance0.500 ohms
Coil Wire AttachmentFemale/Socket
Coil StyleCoil pack
Ballast Resistor IncludedNo
Maximum Voltage40,000 V
Turns Ratio75:01:00
Coil ShapeRectangular
Mounting Bracket IncludedNo
Coil ColorRed
Coil Wire IncludedNo
Secondary Resistance2.00K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Package Qty1
Package TypeEA
