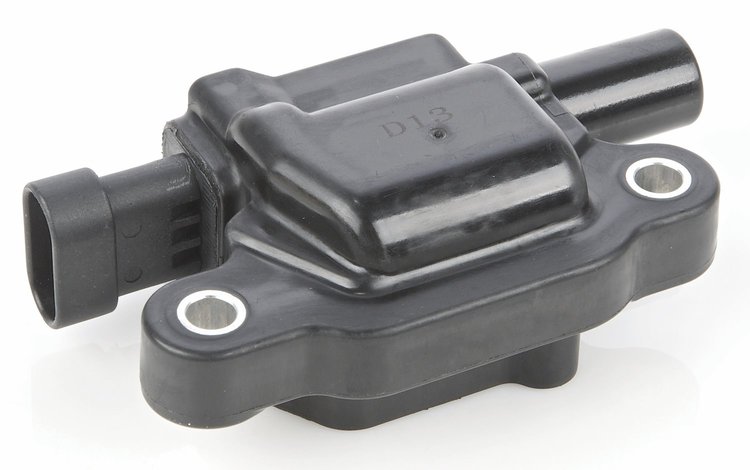

JEGS 555-40166 GM LS Ignition Coil Features:

• Easy to install in most applications for a simple bolt-on upgrade
• Fits 2005-2020 gm ls gen iv engines such as 4.8l, 5.3l, 6.0l, 6.2l, & 7.0l car & truck engines
• 40,000 maximum volts for improved performance and economy
• Specifications: primary resistance: 0.500 ohms, secondary resistance: 17k ohms, turn ratio: 90:1, peak current: 300 ma, spark duration: 600us
• One per package with kits available separately

JEGS 555-40166 GM LS Coil Fits These GM LS Engines:

Buick

• 2005-2007 5.3L Vin: M
• 2008-2009 5.3L Vin: C

Cadillac

• 2006-2015 6.0L Vin: 5, J, U
• 2007-2014 6.2L Vin: 2, 5, 8,
• 2009-2015 6.2L V8 Supercharged VIN: P

Chevrolet & GMC

• 2008-2017 4.8L Vin: A, C, F,
• 2007-2013 5.3L Vin: 0, 7, J, L, M
• 2008-2014 5.3L V8 FLEX VIN: 4
• 2005-2020 6.0L Vin: 2, B, G, H, K, U, Y
• 2009-2013 6.0L V8 ELECTRIC/GAS VIN: 5, J
• 2015-2020 6.0L Flex Vin: B, G,
• 2007-2017 6.2L Vin: 2, 8, F, W,
• 2012-2015 6.2L V8 Supercharged VIN: P, R, T
• 2014 6.6L V8 Turbo DIESEL VIN:L
• 2007-2013 7.0L Vin: E,

Pontiac

• 2005-2008 5.3L Vin: C
• 2005-2009 6.0L Vin: U, Y
• 2009 6.2L Vin: W

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
