Vehicle Info NeededJEGSPART NUMBER: 555-40160K2

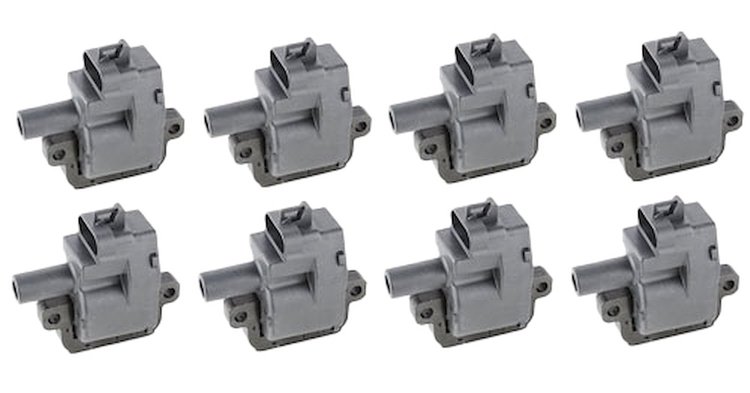

GM LS Ignition Coil Kit 1997-2005 5.7L LS1/LS6
$31112
2 left in stock
Ships Today
Lowest Price GuaranteeGM LS Ignition Coils
LS Ignition Coil Kit1997-2005 5.7L LS1/LS6 1998-2001 Medium Duty 7.4/8.1L Replaces Delco D580 Includes:
- (8) Coils
JEGS 40160K2 GM LS Ignition Coil Kit 1997-2005 5.7L LS1/LS6 Includes:

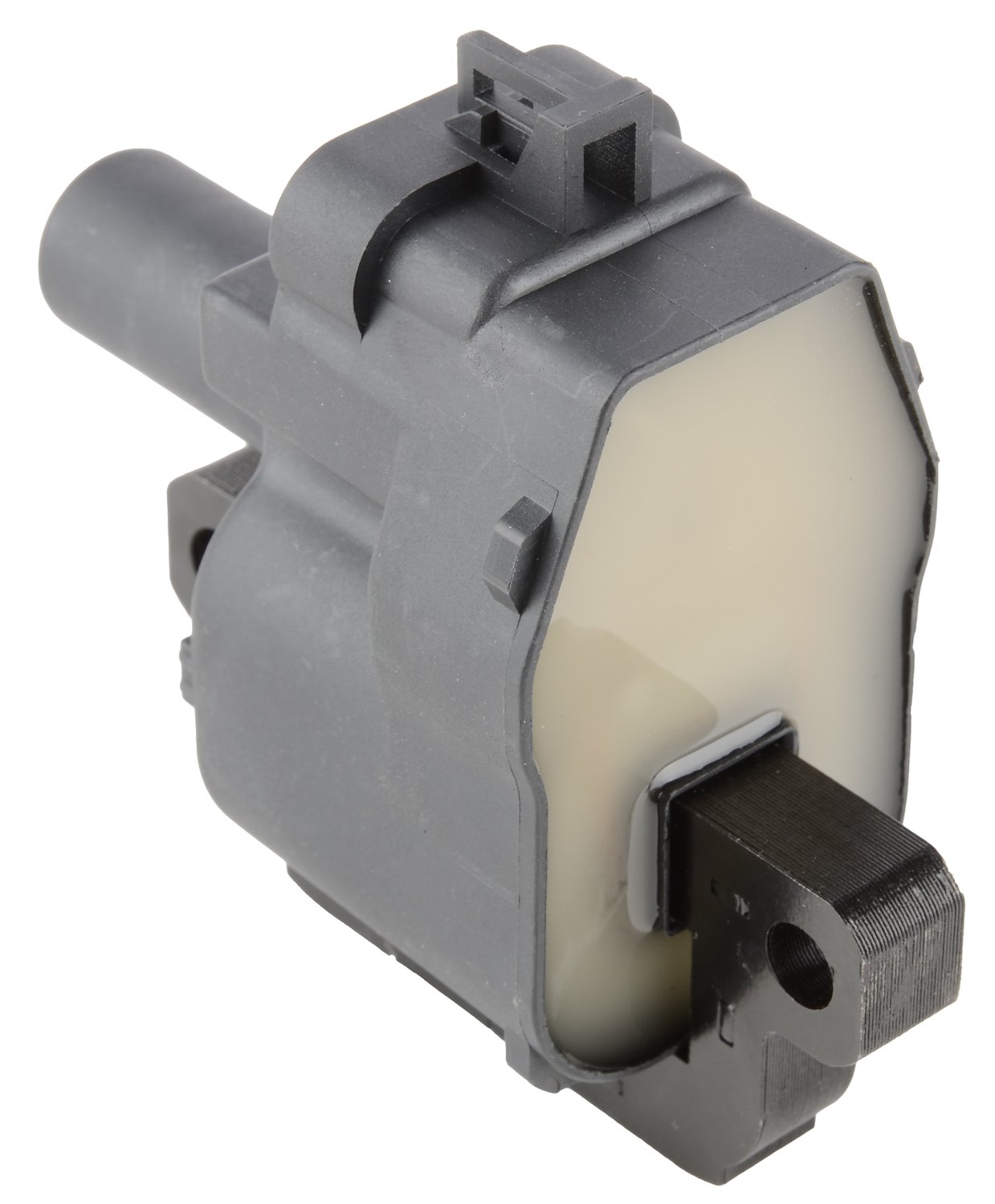

- (8) JEGS GM LS Ignition Coils for 1997-2004 5.7L LS1/LS6 Car & 2001-2002 8.1L Medium Duty Truck Engines 555-40160
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIgnition Coil
BrandJEGS
Package Height4.75 in (120.65 mm)
Part CategoryPerformance Parts
Carb Eo NumberN/A
Primary Resistance0.730 ohms
Coil Wire AttachmentFemale/Socket
Coil StyleCoil pack
QuantitySet of 8
Ballast Resistor IncludedNo
Maximum Voltage40,000 V
Turns Ratio56:01:00
Peak Current124 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance3.6 mH
Coil ColorBlack
Coil Wire IncludedNo
Spark Duration1,110 uS
Secondary Resistance3.7K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Diameter2.5 in (63.5 mm)
Package Qty1
Package TypeEA
