Vehicle Info NeededJEGSPART NUMBER: 555-40138

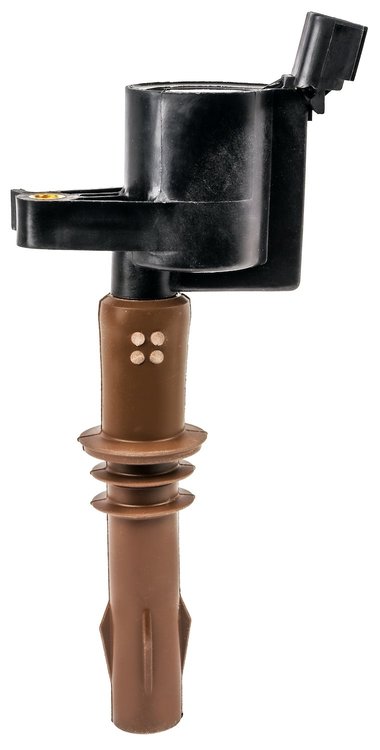

Coil on Plug Ignition Coil for 2008-2014 Ford 3-Valve Modular 4.6L/5.4L V8 & 6.8L V10
$2594$27.99You Save$2.05
4 left in stock
Ships Today
Lowest Price GuaranteeFord
Coil on Plug Ignition Coil2008-2014 Ford 4.6L/5.4L Modular V8 2008-2013 Ford 6.8L Modular V10 3-Valve For Engines with 12 mm Spark Plugs Sold Individually
JEGS 40138 Features:
- OE Upgrade for Ford part number 8L3Z 12029-A or Motorcraft part number DG521
- Low .510 ohms primary resistance & 80:01:00 turns ratio vastly increases spark output over stock
- 34,000 Maximum voltage improves torque and horsepower output while also producing a more complete burn per cylinder
- Epoxy filled to increase thermal conductivity further decreasing coil resistance for even better voltage output & longer life
Part TypeIgnition Coil
BrandJEGS
Package Height2.1
Package Width3.4
Package Length7.8
Weight0.5 PG
Part CategoryReplacement Parts
Ignition TypeDistributorless
Carb Eo NumberN/A
Primary Resistance0.510 ohms
Coil StyleCoil pack
Connector GenderOE Style
Quantity1
Maximum Voltage34,000 V
Turns Ratio80:01:00
Peak Current100 mA
Coil ShapeCylinder
Mounting Bracket IncludedYes
Inductance1.7 mH
Coil ColorBlack
Coil Wire IncludedNo
Spark Duration750 uS
Mount TypeBolt-On
Secondary Resistance5.70K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Oil FilledNo
Meets Or Exceeds Original Equipment ManuYes
Package Qty1
Package TypeEA
