Vehicle Info NeededJEGSPART NUMBER: 555-40134

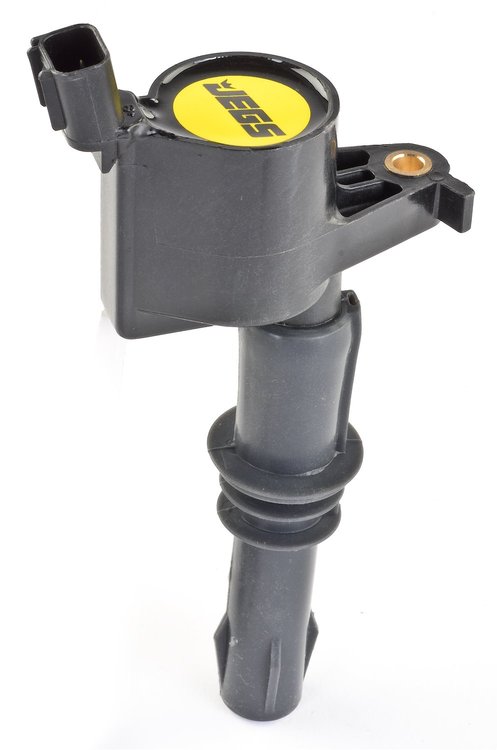

Coil on Plug Ignition Coil for 2005-2008.5 Ford 4.6L/5.4L 3V
$1699$18.99You Save$2.00
More than 10 available
Ships Today
Lowest Price GuaranteeFord
- Coil on Plug Ignition Coil
- 2005-2008 Ford 4.6L/5.4L SOHC
- 3-Valve
- For Engines with 16mm Spark Plugs
- Black Coil Boot
Replaces: - Ford #3L3Z12029-BA
- Motorcraft #DG-511
- Sold Individually
- Easy to install in most applications for a simple bolt-on upgrade
- Fits 2005-2008 ford 4.6, 5.4 liter 3-valve engines
- 25,000 maximum volts for improved performance and economy
- Specifications at 14 volts: primary resistance: 0.510 ohms, secondary resistance: 5.70k ohms, inductance: 1.7 mh
- One per package with kits available separately
Part TypeIgnition Coil
BrandJEGS
Package Height7 in (177.8 mm)
Package Width3.2
Package Length6.2
Weight0.48 PG
Part CategoryPerformance Parts
Carb Eo NumberN/A
Primary Resistance0.510 ohms
Coil Wire AttachmentFemale/Socket
Coil StyleCoil pack
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage25,000 V
Turns Ratio80:01:00
Peak Current100 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance1.7 mH
Coil ColorBlack
Coil Wire IncludedNo
Spark Duration750 uS
Secondary Resistance5.70K ohms
Part FitmentDirect Fit
Coil Internal ConstructionEpoxy
Diameter1.375 in (34.925 mm)
Package Qty1
Package TypeEA
