![Coil on Plug Ignition Coils for 1997-2009 Ford 4.6L/5.4L/6.8L 2V SOHC Modular V8 Engines [Set of 8]](https://www.jegs.com/images/mini_750/500/555/555-40130-8.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-40130-8

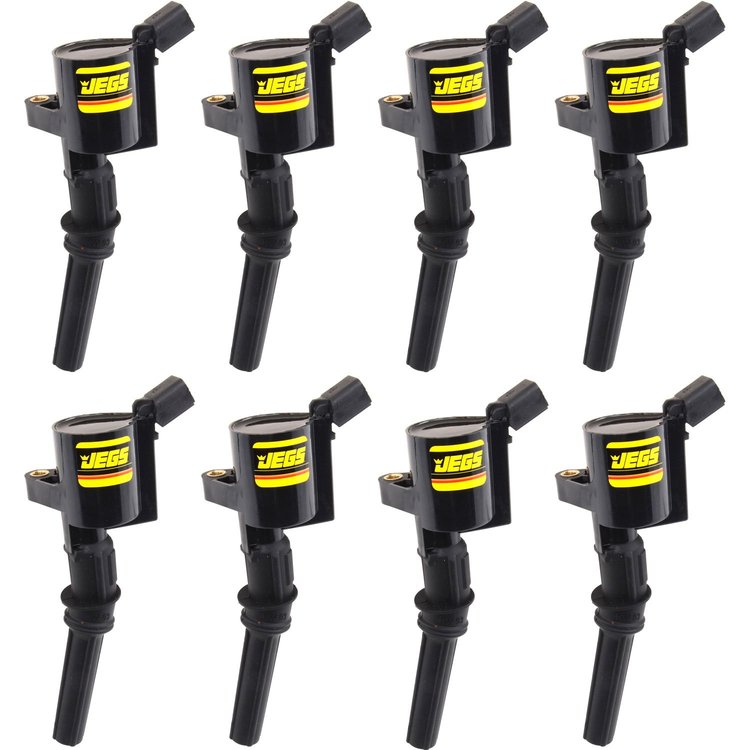

Coil on Plug Ignition Coils for 1997-2009 Ford 4.6L/5.4L/6.8L 2V SOHC Modular V8 Engines [Set of 8]
$17299
More than 10 available
Ships Today
Lowest Price GuaranteeFord
Coil on Plug Ignition Coils1997-2009 Ford 4.6L/5.4L/6.8L SOHC Modular V8 Engines 2-Valve Output Energy: 47.9 mj Maximum Voltage: 44kv Set of 8
Primary resistance: 0.54 ohms Secondary resistance: 5.4k ohms Inductance: 1.6 mh Output Energy: 47.9 mj Maximum Voltage: 44KV
JEGS 555-40130-8 Ford Coil on Plug Ignition Coils Features:
- Fits 1997-2009 Ford 4.6L, 5.4L, and 6.8L Modular 2-valve Engines with coil on plug coils
- Easy to install in most applications for a simple bolt-on upgrade
- 44,000 maximum volts for improved performance and economy
- Kit includes a set of (8) JEGS 555-40130 Coils. Individual coils are available separately
JEGS 555-40130-8 Ford Coil on Plug Ignition Coils Specifications at 14 volts:
Increased Horsepower & Reliability for Your Ignition System
JEGS Coil on Plug Ignition Coils for Ford engines provide a 15-20 percent gain in spark energy over stock and are designed as direct replacements, so no modification is necessary for installation.
Part TypeIgnition Coil
Product LineJEGS Coil On Plug Ignition Coils
BrandJEGS
Package Height6 in (152.4 mm)
Package Width5.3
Package Length7.6
Weight3.5 PG
Part CategoryPerformance Parts
Carb Eo NumberN/A
Primary Resistance0.540 ohms
Coil Wire AttachmentFemale/Socket
Coil StyleCoil pack
QuantitySold as a set of 8
Ballast Resistor IncludedNo
Maximum Voltage44,000 V
Turns Ratio80:01:00
Peak CurrentN/A
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance1.6 mH
Coil ColorBlack
Coil Wire IncludedNo
Spark DurationN/A
Secondary Resistance5.4K ohms
Part FitmentDirect Fit
Coil Internal ConstructionEpoxy
Diameter1.375 in (34.925 mm)
Package Qty1
Package TypeEA
