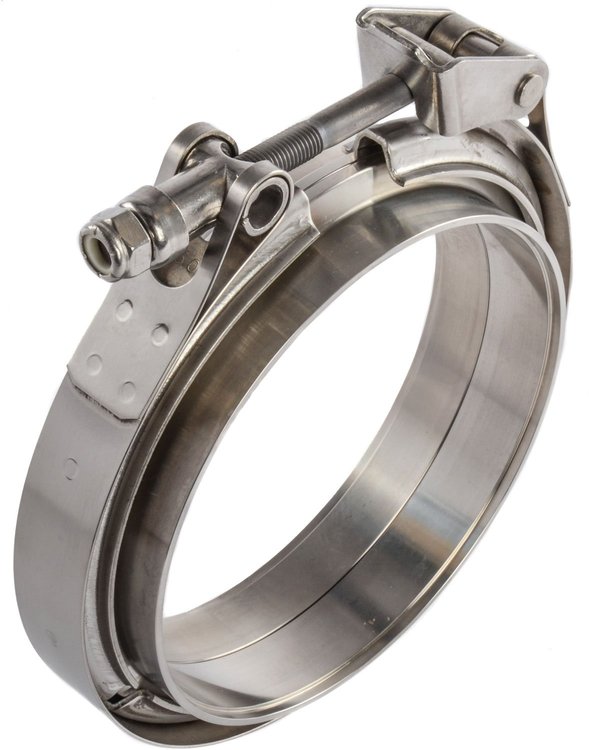

Stainless Steel Quick Release V-Band Clamp & Flanges 5 in.

Name: Stainless Steel Quick Release V-Band Clamp & Flanges 5 in.
Brand: JEGS
SKU: 555-30866
Price: 47.99 USD
Availability: InStock

^$47⁹⁹$51.79You Save$3.80

Ships on Jan 04, 2027

Lowest Price Guarantee

Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

Quick Release V-Band Clamp with Stainless Steel Flanges

Quick Release V-Band Clamp & Flanges

5 in. OD Tube

304 Stainless Steel

Includes:

(1) SS V-Band Clamp
(1) SS Male V-Band Flange
(1) SS Female V-Band Flange
Use on vehicles that undergo frequent maintenance and power-adder applications where exhaust pressure is much higher than normally-aspirated vehicles

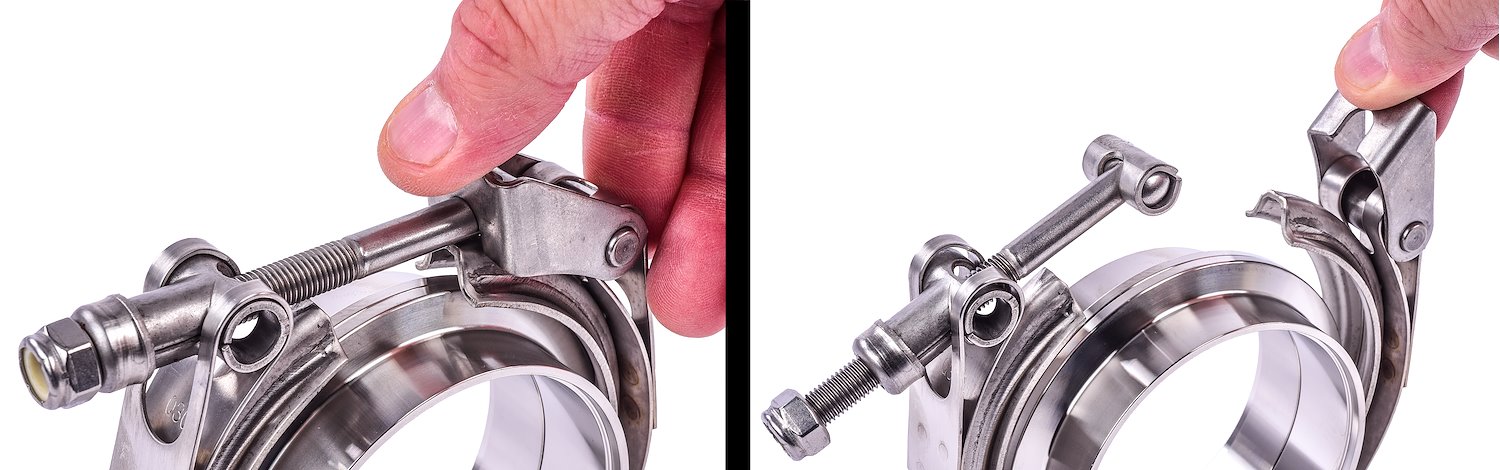

Features a quick release t-bolt style clamping mechanism to ensure a tight, leak-free seal
Male/female interlocking style flanges utilize a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation
Includes (1) v-band clamp, (1) male v-band flange, & (1) female v-band flange
Constructed from 304 stainless steel for strength and long life

This Jegs 304 Stainless Steel Quick Release V-Band Clamp features a Quick Release T-Bolt style clamping mechanism for quick easy removal and along with our Stainless Steel "Male/Female" V-Band Flanges that utilize a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The butt-weld side of our V-Band Flanges are CNC machined with a counter-bore to allow the matching tube size material to slip into the V-Band Flange and be welded in place with the proper alignment. Flange Dimensions: 5 in I.D. with .125 in. recess for tube fitment & overall assembled width of 1.5625 in.

Easy-to-Use Clamps for a Leak-Free Seal

JEGS 304 Stainless Steel V-Band Clamps and Flanges are ideal for use on vehicles that undergo frequent maintenance and power-adder applications where exhaust pressure is much higher than normally-aspirated vehicles. These easy-to-use items are sold separately and the V-band clamps are also available with precision CNC-machined stainless steel or aluminum flanges. Welding is required.
