JEGSPART NUMBER: 555-30056

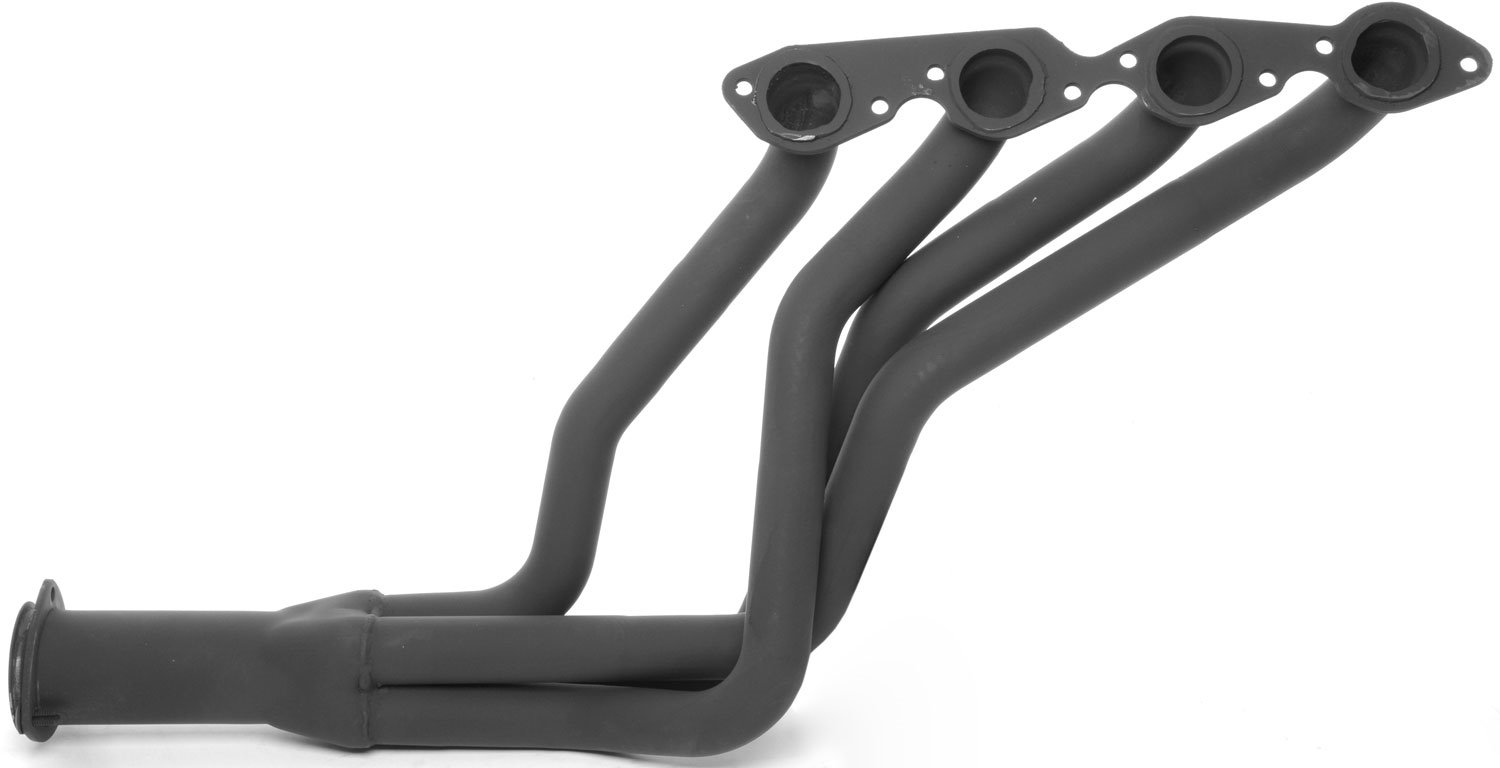

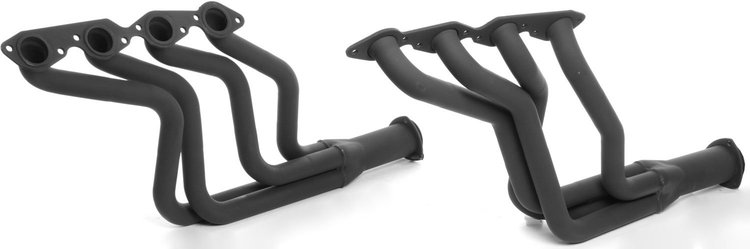

Painted Long Tube Headers Fits Select 1964-1974 Chevy Passenger Cars [Big Block Chevy 396-454 ci]
$22999$248.39You Save$18.40
More than 10 availableBig Block Chevy
Painted Long Tube Headers1964-1974 Chevy Chevelle 1970-1972 Chevy Camaro 1971-1974 Chevy Full Size Big Block Chevy 396-454 ci 1.750 in. O.D. Primary Tubes 3 in. O.D. Collector 2.500 in. Reducer
JEGS 555-30056 Painted Long Tube Headers Features:
- Black painted finish for great looks and long life
- Includes gaskets, reducers, & hardware to complete your project
Special Exhaust Headers Notes:
- Due to variations in engine and vehicle configurations, installation of aftermarket headers may require minor modifications
- Common adjustments include power-steering or A/C bracket relocation, dipstick tube modification, or clearance for steering shaft and clutch linkage
- Inspect for worn or collapsed motor mounts, and verify clearance for spark plugs, wires, brake lines, and transmission or fuel lines
- Always test-fit headers before painting or coating to ensure proper alignment and clearance
- Re-torque after initial heat cycles
JEGS 555-30056 Painted Long Tube Headers Notes:
- Will not fit with Powerglide transmission equipped with a factory floor shifter
- Must modify stock exhaust to retain catalytic converter(s)
- Will not fit with A.I.R. pump
- Works with A/C
| Automatic | Standard | ||
| Column | Floor | Column | Floor |
| No | Yes | No | Yes |
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeHeader
BrandJEGS
Package Height9.5
Package Width22.5
Package Length42.5
Weight36.1 PG
Part CategoryPerformance Parts
Header Flange Thickness0.313 in (7.95 mm)
Tube DirectionDown Swept
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Collector Attachment3-bolt flange
Flange StyleStandard
TunedNo
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
Primary Tube Gauge16-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.75 in (44.5 mm)
Package Qty1
Package TypeEA
