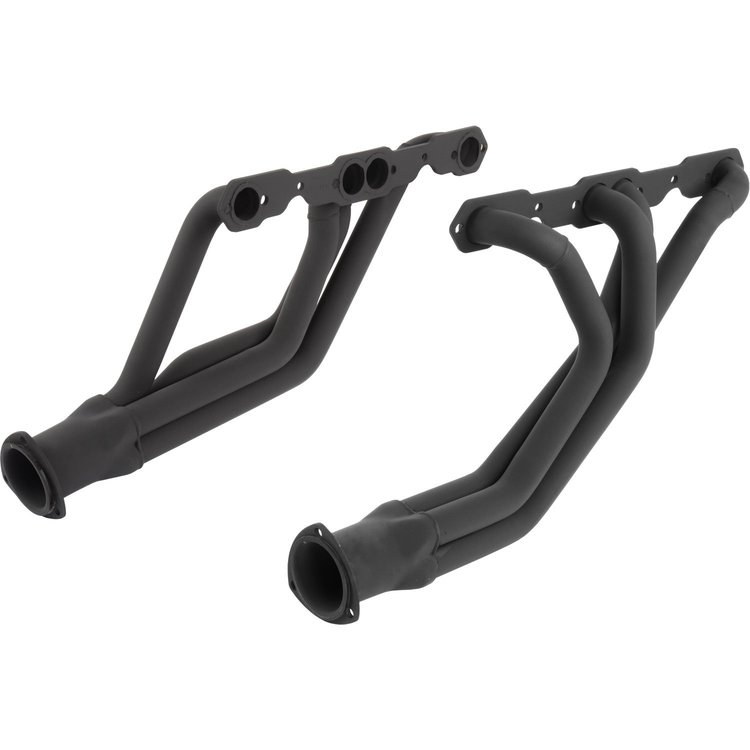

Painted Long Tube Headers for Small Block Chevy 283-327
InfoVehicle Info Needed
JEGSPART NUMBER: 555-30052

Painted Long Tube Headers for Small Block Chevy 283-327

$23429$260.99You Save$26.70
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Chevy
Painted Long Tube Headers
  • Small Block Chevy 283-327
  • 1964-1967 Chevy II
  • 1.500 in. O.D. Primary Tubes
  • 3 in. O.D. Collector to 2.500 in. O.D. Reducers

    Will not fit with A.I.R. pump.Fits factory OEM 64-67 transmissions only. Installation on vehicles 78 and earlier with air conditioning will require purchase of 555-30782 bracket. 79 and later vehicles equipped with short compressor will re-use the original bracket.

    Automatic Standard
    Column Floor Column Floor
    No Yes No Yes

    Special Exhaust Headers Notes:

    • Due to variations in engine and vehicle configurations, installation of aftermarket headers may require minor modifications
    • Common adjustments include power-steering or A/C bracket relocation, dipstick tube modification, or clearance for steering shaft and clutch linkage
    • Inspect for worn or collapsed motor mounts, and verify clearance for spark plugs, wires, brake lines, and transmission or fuel lines
    • Always test-fit headers before painting or coating to ensure proper alignment and clearance
    • Re-torque after initial heat cycles

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeHeader
    BrandJEGS
    Package Height10.0
    Package Width22.0
    Package Length37.0
    Weight26.0 PG
    Part CategoryPerformance Parts
    Header Flange Thickness0.313 in (7.95 mm)
    Header FinishBlack
    Tube DirectionDown Swept
    Cylinder Head Port ShapeRound
    Transmission Mount IncludedNo
    Header MaterialSteel
    Gaskets IncludedYes
    Weld-UpNo
    Collector Attachment3-bolt flange
    Flange StyleStandard
    TunedNo
    Collector Diameter3 in (76.2 mm)
    Motor Mounts IncludedNo
    Part FitmentSemi Universal
    Reducers IncludedYes
    Primary Tube Gauge16-gauge
    Header StyleFull-length
    Cross Over Pipe IncludedNo
    Catalytic Converter(S) IncludedNo
    Primary Tube Diameter1.5 in (38.1 mm)
    Package Qty1
    Package TypeEA
