Vehicle Info NeededJEGSPART NUMBER: 555-20464

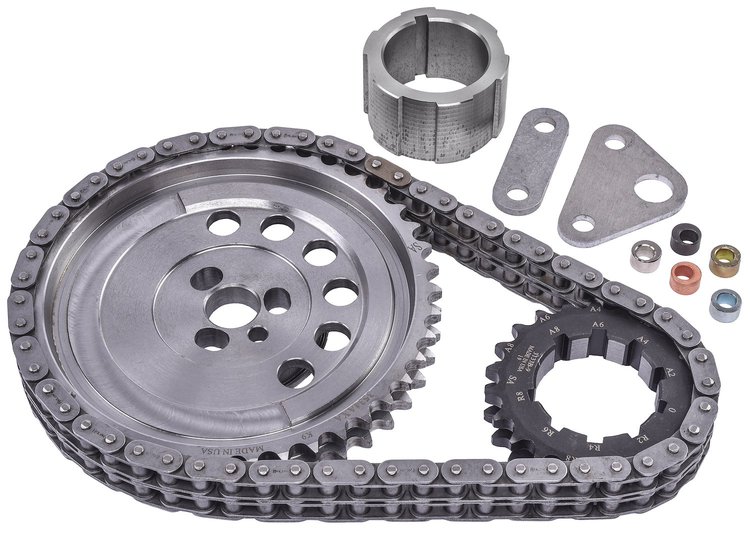

Billet Double Roller Timing Set for 4.8L, 5.3L, 5.7L and 6.0L GM LS-Series Engines
$15999$175.99You Save$16.00
More than 10 available
Ships Today
Lowest Price GuaranteeLS Series
Billet Timing Set1999-2007 GM LS-Series Engines 4.8L, 5.3L, 5.7L & 6.0L Designed for Adjustable Cam Timing Bronze Thrust Bearing Pre Installed Fits Camshaft Sprocket Design with 1 Position Sensor and Three Bolts
JEGS 555-20464 Billet Timing Set Features:
- Double roller 0.250 in. chain, heat treated & polished
- Billet steel cam sprocket with thrust bearing
- 5-piece dowel pin insert kit for (+/-) 4 degree cam adjustment

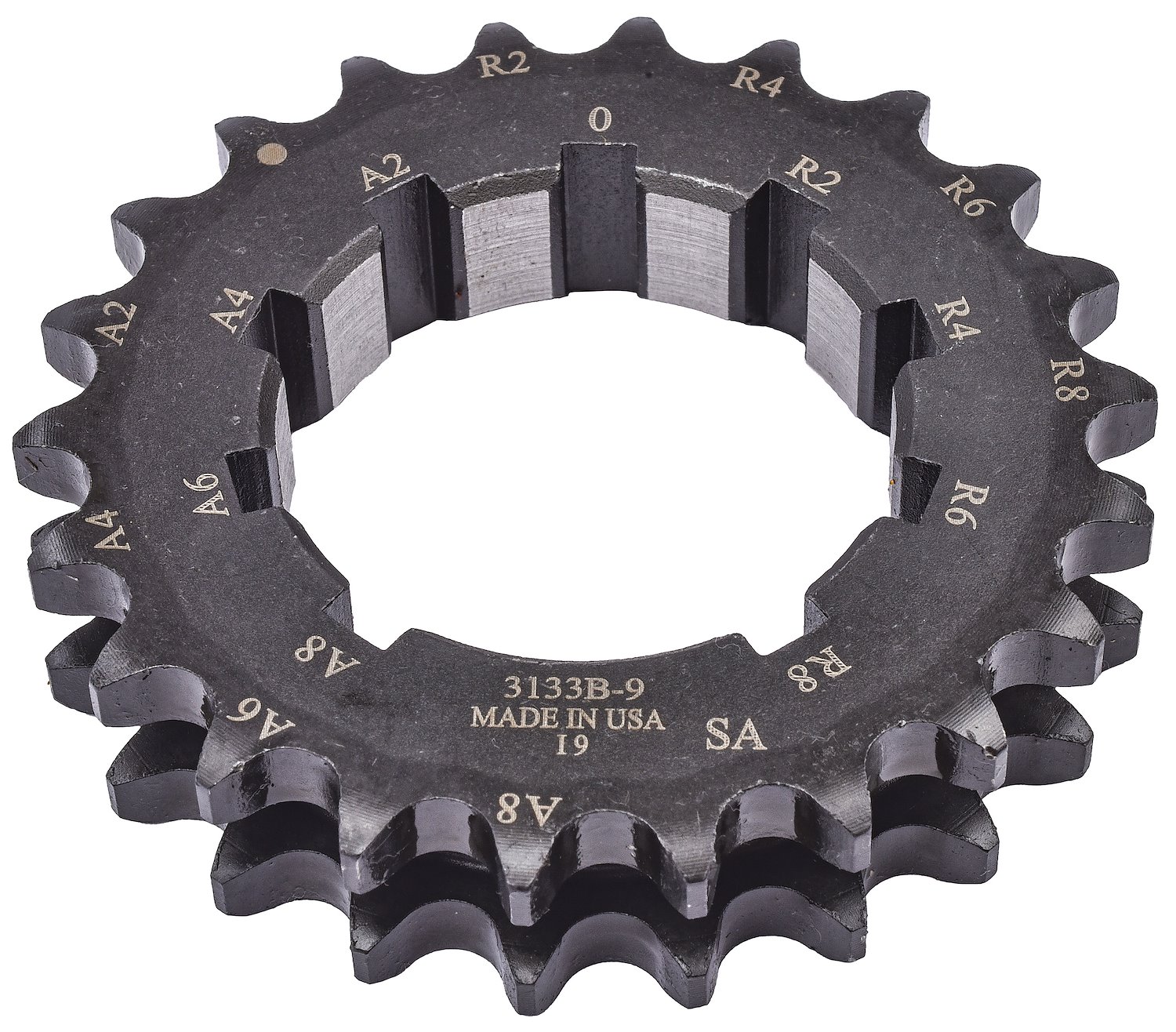

- Billet steel crank sprocket, heat treated and 9-keyway
- Billet steel oil pump drive sprocket with oil pump spacer plates
- 3-bolt cam with one sensor
Applications:
- 1999-2006 Chevy/GMC 4.8L V8
- 1999-2006 Chevy/GMC 5.3L V8
- 1997-2005 Chevy/GMC LS1 5.7L V8
- 2004-2005 Chevy/GMC LS6 5.7L V8
- 1999-2007 Chevy/GMC LS2 6.0L V8
Reduce friction and protect against block wear
JEGS Billet Timing Chain Sets are available with Torrington roller thrust bearings or bronze thrust washers. These billet steel timing chain sets feature 9-keyway crank gears for precise adjustability and heat-treated, seamless roller chains with a 0.250" diameter roller. The cam and crank sprockets are machined from 1144 billet steel. Crank sprockets are coated in black oxide with laser-etched timing marks.
Show More
Features:
- 9-Keyway Crank
- Seamless Roller Chains
- 0.250" Diameter Roller
- Billet Steel Sprockets
- Black Oxide Crank Sprockets
- Laser-Etched Timing Marks
Part TypeTiming Chain and Gear Set
Product LineJEGS Billet Timing Chain Sets
BrandJEGS
Package Height1.6
Package Width6.6
Package Length9.8
Weight3.85 PG
Part CategoryPerformance Parts
Thrust Bearing IncludedYes
Crank Sprocket MaterialBillet steel
Offset Bushings IncludedNo
Timing Chain StyleDouble roller
Camshaft Gear Attachment3-bolt
Maximum Advance/Retard At Crankshaft8 degree
QuantitySold as a set
Cam Sprocket MaterialBillet steel
Maximum Advance/Retard At Camshaft4 degree
Bolts/Studs IncludedNo
Part FitmentSemi Universal
Package Qty1
Package TypeEA
