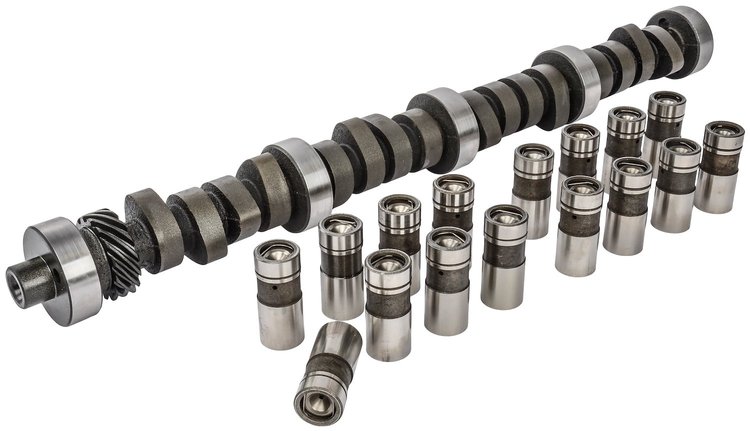

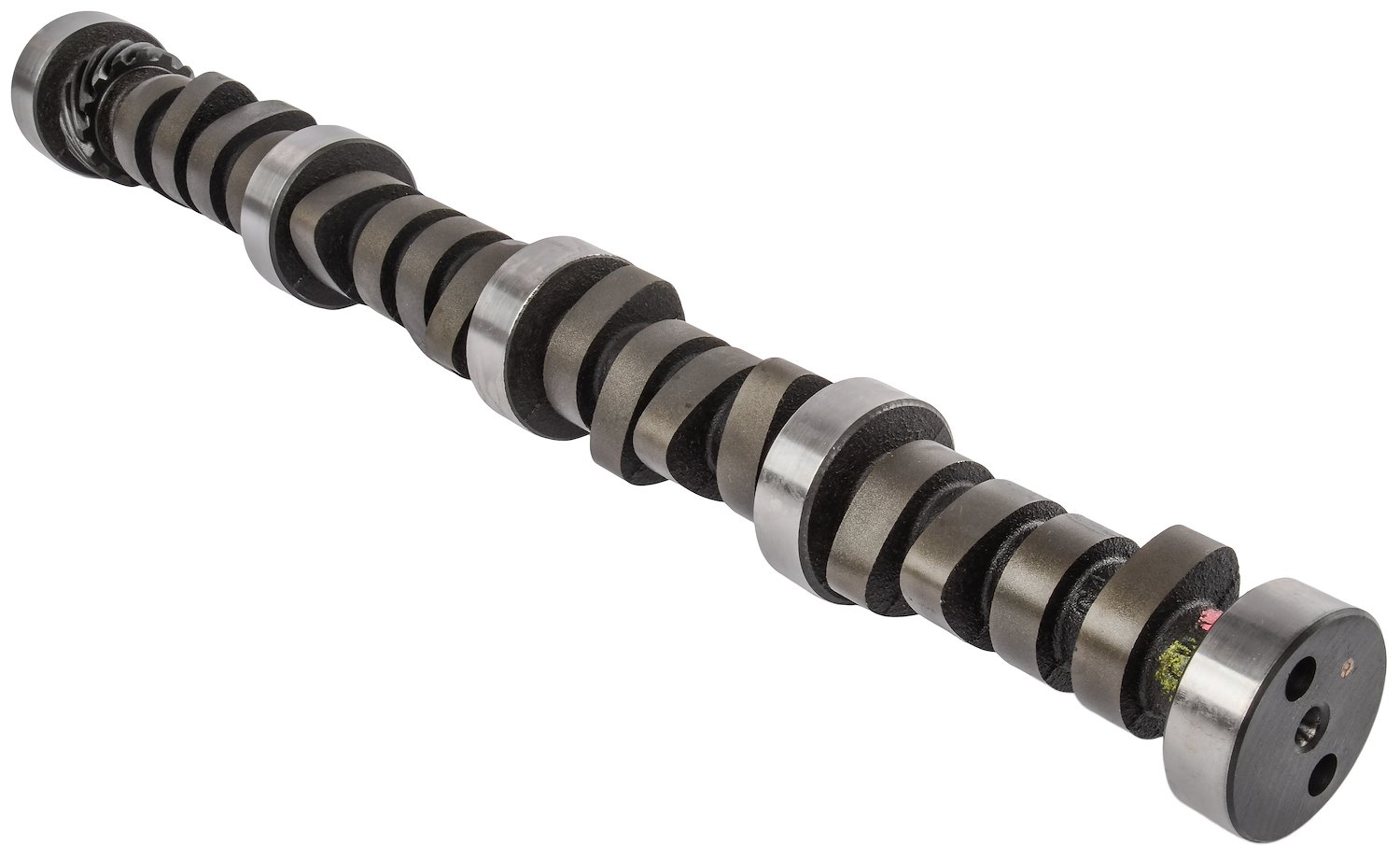

Hydraulic Flat Tappet Camshaft & Lifters
• 1962-Up Ford 221-302 (except 302 HO)
• Lift: .448"/.472"
• Adv. Duration: 262°/272°
• RPM Range: 1500-4000
  Includes:
• (4oz.) Assembly Lube


• We recommend, when using stock type, bolt down, non-adjustable rocker arms that you purchase 555-20185 Pedestal Shim Kit to properly adjust the lifter pre-load. Please refer to "THE FAST AND EASY WAY TO CHECK HYDRAULIC LIFTER PRE-LOAD" in the instruction sheet (middle of page 3).

  	Intake	Exhaust
  Advertised Duration	262°	272°
  Duration @ .050"	204°	214°
  Valve Lift w/ 1.6 Rocker Arms	0.448	0.472
  Valve Lift @ Cam	0.280	0.295
  Max Lift Angle	107°	117°
  Lobe Separation	112°
  Cam Timing @ .050" - Opens	-5° ATDC	44° BBDC
  Cam Timing @ .050" - Closes	29° ABDC	-10° BTDC

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
