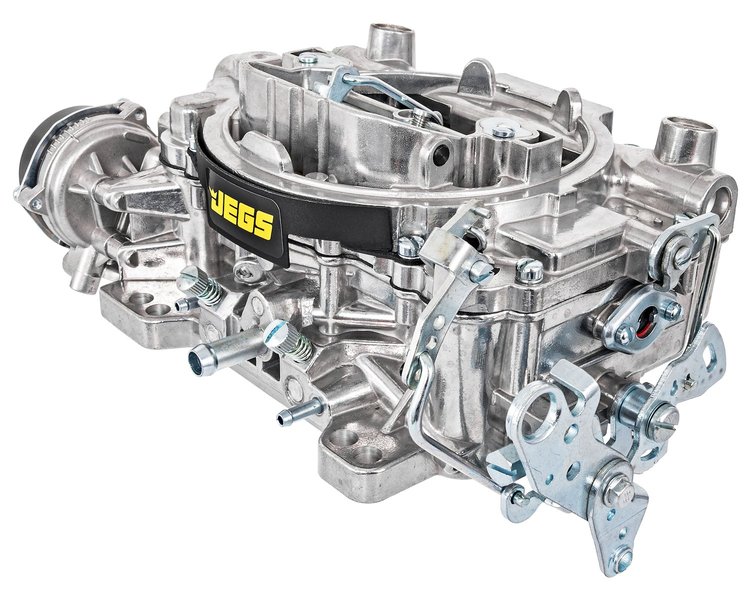

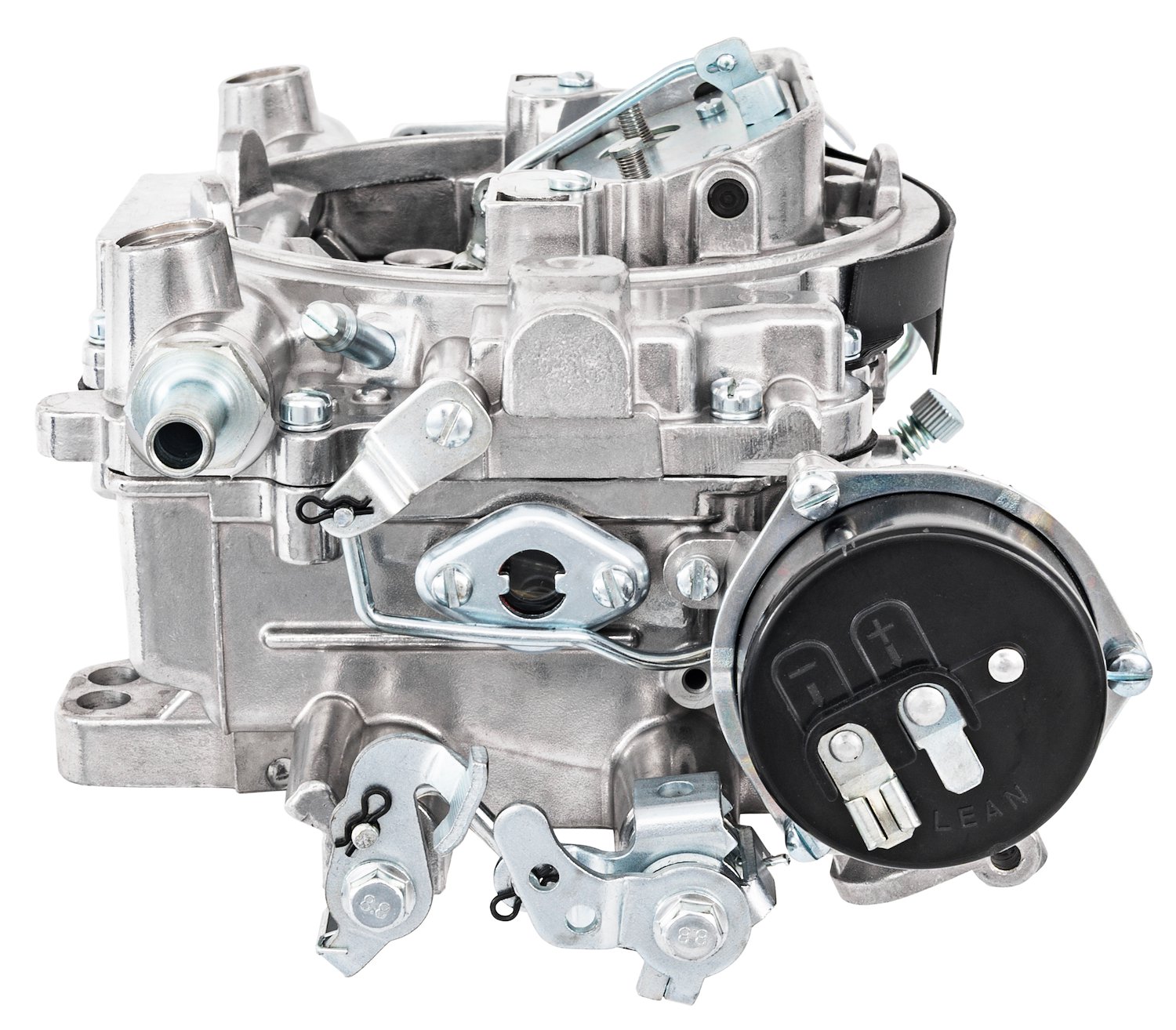

JEGS 555-16650 Street Fighter Carburetor Features:

• Designed for small-block and small displacement big-block engines
• Metering rod design – no power valves to blow out
• External float adjustment and sight glass eliminates the need to remove carburetor top to make adjustments
• Tuned for mild performance street engines

JEGS 555-16650 Street Fighter Carburetor Specifications:

• Fuel Category: Gasoline
• Remanufactured: No
• Number of Barrels: 4
• Choke: Electric
• Fuel Inlet: Single
• Primary Jet Size: 98
• Secondary Jet Size: 95
• Metering Rod Size: 0.075 in. x 0.047 in.
• Metering Rod Spring: 5 in. Hg
• Accelerator Pump Squirter Size: 0.031 in.

• Throttle Linkage Type: Universal
• Ported (Timed) and Manifold Vacuum Ports
• Carburetor Height (in.): 3.250 in.
• Brake booster fitting not included

JEGS 555-16650 Street Fighter Carburetor Includes:

• Jets
  • (2) 0.095 in.
  • (2) 0.106 in.
  • (2) 0.108 in.
  • (2) 0.110 in.
• Electric Choke Wire Harness
• (2) Ball Studs
• (4) Studs (5/16 in.-24 Carburetor, 5/16 in.-18 Intake, 1 1/2 in. Long)
• (4) Washers
• (4) Nuts
• Air Cleaner Stud (1/4 in.-20 Thread, 5 1/2 in. Long)
• (4) Hose Clamps
• Base Gasket
• Air Cleaner Gasket

JEGS 555-16650 Street Fighter Carburetor Notes:

• Carburetor Float Set at 6.5 PSI Fuel Pressure for Optimal Out-of-the-Box Performance
  • Too Little Pressure Can Cause Fuel Starvation; Too Much Can Cause Flooding
• Recommend JEGS 555-15912 Fuel Pressure Regulator for Precise Pressure Control (sold separately)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
