Click Here for help on Fuel Pump Sizing

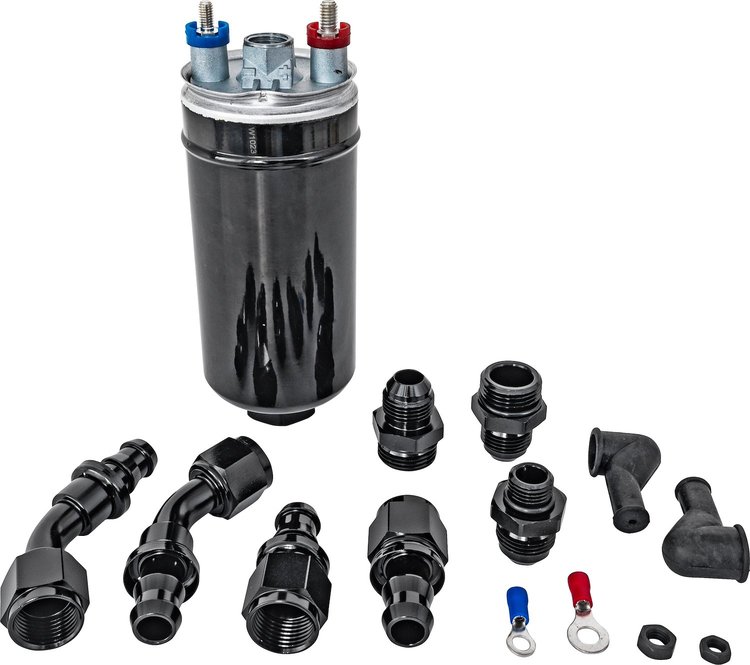

JEGS 555-159076 High Volume Inline Fuel Pump Includes:

• (1) -6 AN O-ring to -8 AN adapter fitting
• (1) -10 AN O-ring to -8 AN adapter fitting
• (1) -6 AN Sealing Washer
• (2) -8 AN x 1/2 in. Straight Push-Lock Hose End
• (2) -8 AN x 1/2 in. 45 Degree Push Lock Hose End
• (1) M6 x 1.0 3/8 (.375) in. Hex Nut
• (1) M5 x 0.8 5/16 (.313) in. Hex Nut
• (1) 14-18 Gauge Ring Terminal
• (1) 22-16 Gauge Ring Terminal

JEGS 555-159076 High Volume Inline Fuel Pump Notes:

• This pump is rated for electronically fuel-injected gasoline engines only
• The fuel pump bracket is sold separeately, we recommend JEGS 555-15920
• This fuel pump requires the use of a 100-micron pre-filter
• Pump will require a fuel pressure regulator such as 555-159120
• Please use a fused circuit capable of conducting 25 amps
• For optimum performance please ensure the pump is running at 13.5 volts
• DO NOT reverse fuel pump polarity, doing so will damage the fuel pump

Horse Power Rating at 3 Bar (43.5 psi) of Fuel Pressure:

• Up to 700 horsepower naturally-aspirated
• Up to 550 horsepower at 14.5 psi of boost
• Up to 505 horsepower at 29 psi of boost

FAQ

What does a high-volume fuel pump do?

• A high-volume fuel pump, like our JEGS 159076 model, delivers a larger quantity of fuel to the engine. This ensures optimal fuel supply, especially in high-performance setups, promoting better combustion and overall engine efficiency.

Do inline fuel pumps run continuously?

• Yes, inline fuel pumps, including our JEGS 159076, typically run continuously when the engine is running. They provide a steady and consistent flow of fuel to meet the engine's demand, ensuring proper fuel delivery under various driving conditions.

Can I run a higher-pressure fuel pump?

• Yes, you can use a higher pressure fuel pump like our JEGS 159076. However, it's crucial to ensure compatibility with your vehicle's fuel system and engine requirements. A higher-pressure pump is beneficial for specific performance needs, but proper tuning may be necessary.
