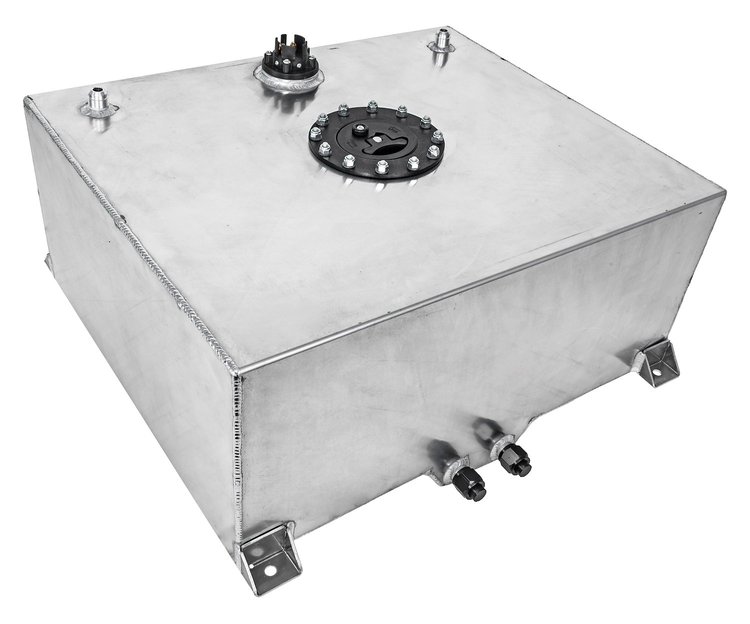

20-Gallon Fuel Cell with Sending Unit [Polished Finish]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-15389

20-Gallon Fuel Cell with Sending Unit [Polished Finish]

$31699$342.29You Save$25.30
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

20-Gallon Fuel Cell - 24 in. L x 20 in. W x 10 in. H
Fuel Cell w/ Sending Unit
  • 20-Gallon Capacity
  • 20 in. L x 24 in. W x 10 in. H
  • 0.090 in. Wall Thickness
  • (2) -10 AN Male Outlets
  • (1) -10 AN Male Return
  • (1) -10 AN Male Vent
  • 2 in. Sump Depth
  • Aluminum
  • Polished Finish

    JEGS 555-15389 20-Gallon Fuel Cell Features:

    • Constructed from aluminum and then polished for great looks and long life
    • Includes 0-90 ohm sending unit

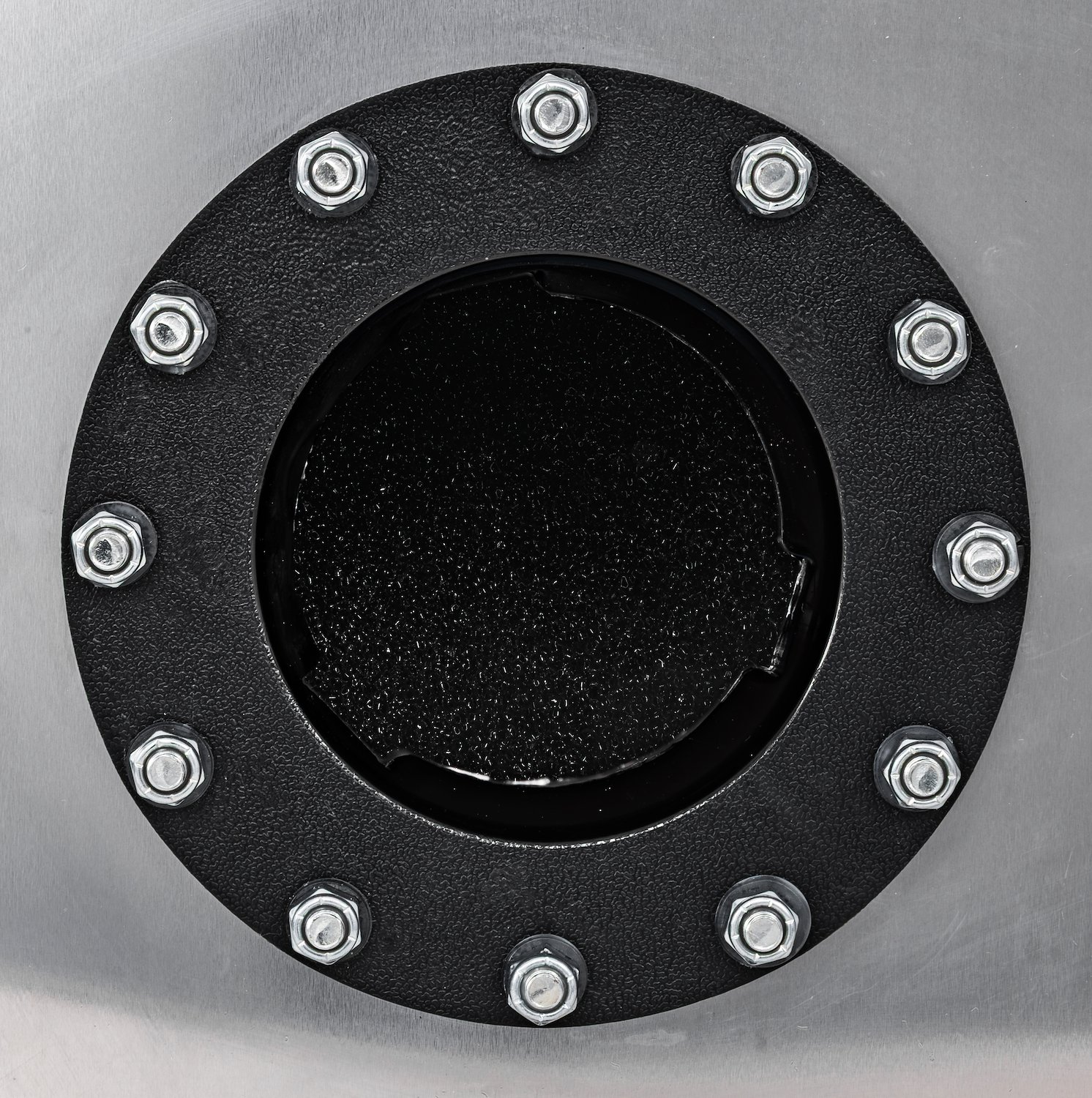

    • Features flush-mount cap

    This fuel cell does not have a roll-over vent valve, either port can be used as a return. The current foam in this cell is only compatible with gasoline-based fuels and must be removed when using Alcohol, Methanol, and Ethanol-based fuels (E-85, E-89, E-90, E-100, etc.) since the water content in alcohol-based fuels may cause the foam to break down. A roll-over vent valve is available for purchase separately. We recommend JEGS -10 AN external mount valve 555-15379

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Part TypeFuel Cell
    BrandJEGS
    Package Height10 in (254 mm)
    Package Width24 in (609.6 mm)
    Package Length27.3
    Weight24.93 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedYes
    Outlet Fitting Size-10 AN
    ColorPolished
    Vent Fitting Size-10 AN
    Overall Length20 in (508 mm)
    MaterialAluminum
    Outlet Fitting QuantityTwo
    FoamYes
    Return Fitting Size-10 AN
    Capacity20 gallons
    Sender Ohm Range0 ohms empty, 90 ohms full
    Part FitmentUniversal
    Package Qty1
    Package TypeEA
