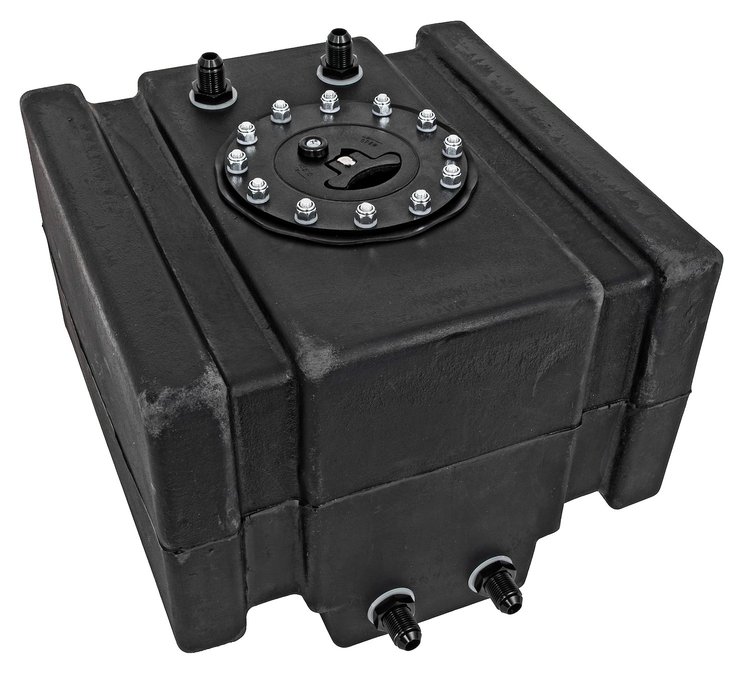

Drop Sump Drag Race Fuel Cell [5 Gallon Capacity]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-15373

Drop Sump Drag Race Fuel Cell [5 Gallon Capacity]

$21599$237.99You Save$22.00
5 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Drop Sump Cells
Drop Sump Drag Race Fuel Cell
  • Capacity: 5 Gallons
  • 13 in. L x 13 in. W x 8 in. H
  • Includes:
    • (2) -8 AN Male Outlets
    • (1) -8 AN Male Rollover Vent
    • (1) -8 AN Male Return

      JEGS 555-15373 Drop Sump Drag Race Fuel Cell Notes:

      • The nominal dimensions that are published are given for reference only
      • This cell is made of rotationally molded polyethylene
      • The ambient (room) temperature will affect the cooling rate (once released from the mold) and the nominal dimensions
      • Please measure your cell first before cutting the floor or drilling for the mounts.
      • Use 555-15528 Mount (sold separately)

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Part TypeFuel Cell
    BrandJEGS
    Package Height8 in (203.2 mm)
    Package Width13 in (330.2 mm)
    Package Length14.9
    Weight7.15 PG
    Part CategoryPerformance Parts
    Outlet Fitting Size-8 AN
    UsageStreet/Strip
    SumpYes
    Vent Fitting Size-8 AN
    Overall Length13 in (330.2 mm)
    MaterialPLastic
    Outlet Fitting QuantityTwo
    FoamYes
    Return Fitting Size-8 AN
    Capacity5 gallons
    Sender Ohm RangeN/A
    Part FitmentUniversal
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
