• Tachometer
• Speedometer
• Water Temperature
• Oil Pressure
• Voltmeter
• Fuel Level

Breakdown of Included Items

Note: Housing/Bezel Not Included

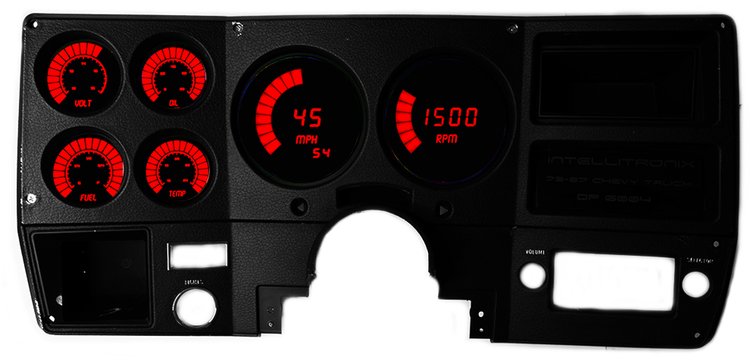

Intellitronix BG6004R LED Digital Bargragh Gauge Panel Features:

Tachometer: reads up to 9,999 RPM

• Microprocessor controlled with peak RPM memory recall
• RPM-activated switch can handle up to 3 amps
• 0-9,999 readout in 100, 10, or 1 RPM increments
• Compatible with 1-2-4-6-8-10-12 cylinder engines

Speedometer: reads up to 255 MPH

• 3-3/8 in. diameter and 1-1/2 in. deep
• Includes odometer, trip meter, one-button calibration (regardless of tire size, gear ratio, or transmission), 0-60 time, and high-speed recall, with a push of a button
• Compatible with electronic cruise control senders
• Includes S9013 sender (universal speedometer sending unit), which can be used on vehicles that do not have functional cruise control
• Automatic night-dimming

Voltmeter: reads from 12-16 volts

• Automatic night-dimming
• Sending unit not required

Oil Pressure: reads 0-80 PSI

• Automatic night dimming
• Includes S8868 sender

Water Temperature: reads 160-240 degrees F

• Automatic night-dimming
• Includes S8023 sender

Fuel Level: reads empty to full in 1/4 increments

• Works with most existing fuel level sending units (set at industry standard 0-90 ohms)
• Automatic night-dimming

___________________________

• Includes in-dash mounting hardware and installation instructions
• Includes turn signals and high beam indicator
