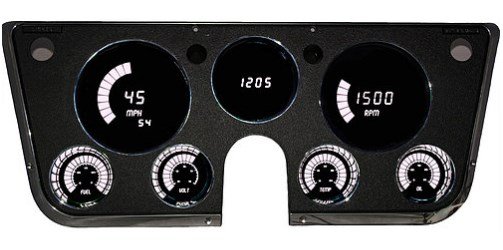

Intellitronix BG6003W LED Direct Replacement Digital Bargraph Dash Kit Features:

• Direct-fit printed circuit boards
• White LED readout display
• Custom-fit smoked plexiglass faceplate
• Universal temperature, oil pressure, and speedometer sending units
• Installation instructions

Notes:

• Housing/bezel not included
• Designed for vehicles Without electronic transmission or cruise control
• Includes 1/2 in. bushing for the oil pressure sender, 3/8 in. is available upon request

Speedometer:

• Reads 0-255 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall
• Includes S9013 sending unit

Tachometer:

• Displays 0-9,999 RPM
• Readout can be displayed in 100, 10, and 1 RPM increments

Water Temperature:

• Displays 160-240 Degrees F
• 1/2 (.500) in. bushing
• Includes S8023 sending unit

Oil Pressure:

• Reads 0-80 psi

Voltmeter:

• Reads 12.0-16.0 V
• No sending unit required

Fuel Level:

• Fuel Level reads empty-to-full in 1/4 increments
• Gauge is set at industry standard 0-90 Ohms
