Vehicle Info NeededHOTCHKISPART NUMBER: 515-80017-2

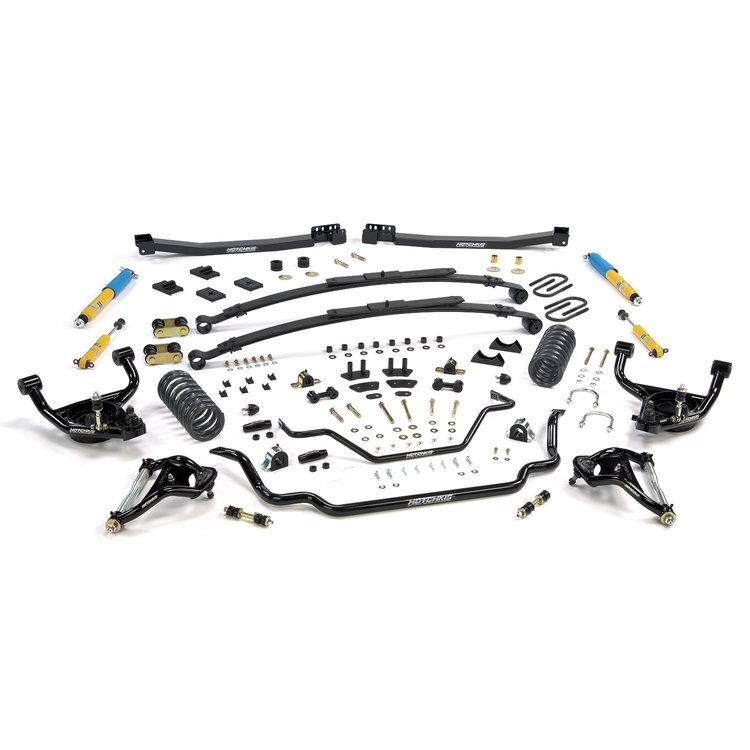

Stage 2 TVS Suspension System 1970-1973 GM F-Body w/Small Block
$5,27490
Truck Freight
Ships on Sep 14, 2026
Lowest Price GuaranteeGMStage 2
- Stage 2 TVS Suspension System
- 1970-1973 GM F-Body w/Small Block
- Front Rate: 600 lbs./in.
- Rear Rate: 150-180 lbs./in.
- 2 in. Front Drop
- 1 1/2 in. Rear Drop
Includes:
Machined Tie Rod Sleeves #1612
Leaf Springs Rear #2408C
Coil Springs Front #1908F
Sport Sway Bar Set #2236
Tubular Upper A-Arms #1106
Tubular Lower A-Arms #1108
Subframe Connectors #4012
Tuned 1.5 Street Performance Series Shocks #79020004
Part TypeSuspension Kit
BrandHOTCHKIS
Package Height30.0
Package Width40.0
Package Length67.0
Weight275.0 PG
Bushing ColorBlack
Front Sway Bar Diameter1.375 in (34.925 mm)
Center Link IncludedNo
Rear Coil Springs IncludedNo
Upper Trailing Arms IncludedNo
Inner Tie Rod Ends IncludedNo
Front Sway Bar Diameter (Mm)35
Control Arm StyleTubular
Upper Control Arms IncludedYes
Subframe Connectors IncludedNo
Arm FinishBlack powdercoated
PositionFront and Rear
Brake Pads IncludedNo
Tie Rod Sleeves IncludedYes
Front Shocks/Struts IncludedYes
Trailing Arm Mount Braces IncludedNo
Torque Arm IncludedNo
Lower Trailing Arms IncludedNo
Rotors IncludedNo
Spindles IncludedNo
K-Member Support Brace IncludedNo
Rear Sway Bar IncludedYes
Rear Sway Bar Diameter (Mm)22
Front Sway Bar FinishBlack powdercoated
Rear Leaf Spring Bushings IncludedYes
Part CategoryPerformance Parts
Front Shock TypeGas-charged monotube
Rear Sway Bar Diameter0.875 in (22.2 mm)
Rear Sway Bar TypeHollow
Front Sway Bar TypeHollow
Rear Shocks/Struts IncludedYes
End Link Bushings IncludedYes
Front Coil Springs IncludedYes
Arm MaterialSteel
Calipers IncludedNo
Panhard Bar IncludedNo
Front Sway Bar IncludedYes
Bushing MaterialPolyurethane
Lower Control Arms IncludedYes
Wheel Studs IncludedNo
Chassis Stiffener IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedYes
MaterialSteel
Rear Strut Tower Bar IncludedNo
Outer Tie Rod Ends IncludedNo
Rear Leaf Springs IncludedYes
Front Strut Tower Bar IncludedNo
Rear Sway Bar FinishBlack powdercoated
Sway Bar Bushings IncludedYes
Brake Lines IncludedNo
Part FitmentDirect Fit
Rear Shock TypeGas-charged monotube
Vendor Part Number80017-2
Package Qty1
Package TypeEA
