Vehicle Info NeededHOTCHKISPART NUMBER: 515-1109

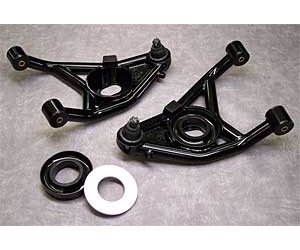

Lower Control Arms 1967-1969 GM F-Body
$1,12999
Ships on Sep 04, 2026
Lowest Price GuaranteeGM Tubular Lower A-Arms
- Lower Control Arms
- 1967-1969 GM F-Body
- 1968-1974 GM X-Body
Install the Hotchkis Tubular Lower A-Arms on your 67-69 Camaro or Firebird and gain vastly increased handling and control. These TIG welded, bolt-on arms offer ride height adjustment for ultimate performance and a great look, regardless of engine and transmission combinations. Smooth operating Delrin bushings allow the arms to move through their travel easily. Finished in gloss black powder coat, the arms are ready to install and are complete with ball joints, bump stops, ride height shims, polyurethane coil spring locators and Delrin bushings.
Features:
- TIG welded 1.5' tubular steel construction.
- CNC machined inset spring cup.
- Precision aluminum ride height adjustment shims.
- Polyurethane coil spring isolators.
- Easy to lubricate Delrin bushings.
- High Quality Lower ball joints installed.
- Gloss black powder coat finish.
Benefits:
- CAD designed and analyzed by FEA software for ultimate strength.
- Increased structural rigidity due to CNC machined inset spring cup.
- Aluminum shims allow for 1/4' to 1/2' ride height adjustment. Additional shims available separately.
- Delrin bushings allow smooth operation with minimal deflection through travel range.
Part TypeControl Arm and Ball Joint
BrandHOTCHKIS
Package Height7.2
Package Width15.7
Package Length20.9
Weight38.4 PG
Part CategoryPerformance Parts
Ball Joint IncludedNo
Hardware IncludedYes
Arm FinishBlack powdercoated
Bushing MaterialDelrin
Arm MaterialSteel
QuantitySold as a pair
Mounting Hardware IncludedNo
Part FitmentDirect Fit
Bushings IncludedYes
AdjustableNo
Control Arm StyleTubular
Vendor Part Number1109
Package Qty1
Package TypeEA
