Competition Headers 396-502 Chevy Big Block V8
InfoVehicle Info Needed
HOOKER HEADERSPART NUMBER: 520-2454-1

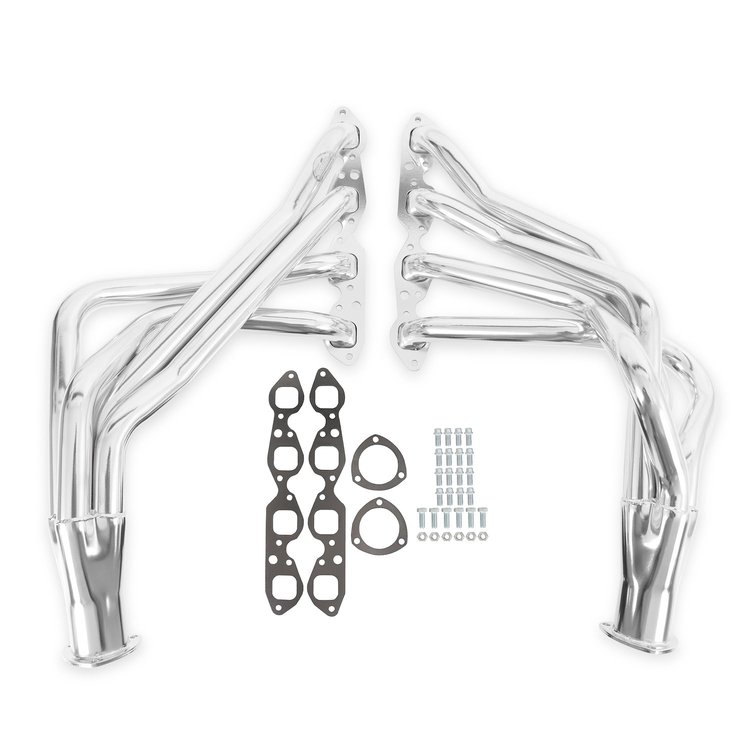

Competition Headers 396-502 Chevy Big Block V8

$69995
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Chevy/GMC Truck & Van Chevy Big Block
    Competition Headers
  • 396-502 Chevy Big Block V8
  • 1973-91 Blazer, Suburban, Jimmy, Yukon 2WD
  • 1968-87 1/2, 3/4, & 1 Ton Truck 2WD
  • 1.75'' x 30'' Primary Tubes
  • 3'' x 8'' Collector
  • Metallic Ceramic Coated

    Applications Continued:
  • 1968-95 Van/Class A Motorhome

    Footnotes:
  • One tube over the frame on passenger side.
  • Applications with oxygen sensors use reducers 555-30012.
  • For a great start to your custom dual exhaust use Hooker dual pipe kit:
    For 73-91 Blazer, Suburban, Jimmy, Yukon (2WD) - 520-16626
    For 73-87 1/2, 3/4 & 1 Ton Trucks (2WD) - 520-16626

    Accessory Compatibility:
  • Power Steering - Yes, drivers side mounting requires installation of provided spacer
  • Power Brakes - Yes
  • Air Conditioning - Yes, must modify factory bracket
  • Smog Pump - Yes, requires modification of injection tubes

    Transmission Compatibility:
  • Manual Column Shifter - No
  • Manual Floor Shifter - Yes
  • Automatic Column Shifter - Yes
  • Automatic Floor Shifter - No

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: SAP

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader
BrandHOOKER HEADERS
Package Height12.5
Package Width16.0
Package Length43.0
Weight36.15 PG
Part CategoryPerformance Parts
Header FinishSilver ceramic coated
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Tube MaterialMild Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
TunedNo
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Primary Tube Gauge16-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.75 in (44.5 mm)
Vendor Part Number2454-1HKR
Package Qty1
Package TypeEA
