550-1425 Terminator X Max MPFI Controller Kit

Vehicle Info Needed

HOLLEYPART NUMBER: 510-550-1425

550-1425 Terminator X Max MPFI Controller Kit

Name: 550-1425 Terminator X Max MPFI Controller Kit
Brand: HOLLEY
SKU: 510-550-1425
Price: 2399.95 USD
Availability: InStock

^$2,399⁹⁵

4 left in stock

Ships Tomorrow

Lowest Price Guarantee

Mopar
HEMI Gen. III

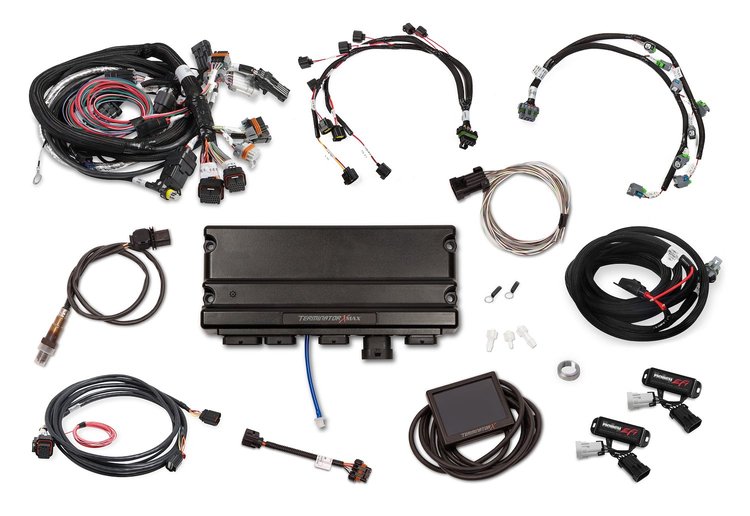

Terminator X Max MPFI Controller Kit

2013-Newer Gen III HEMI Engines Non-VVT

DBW Throttle Bodies

EV6 Injector Harness

Tune Using Included 3.500 in. Handheld Touchscreen

Holley 550-1425 Terminator X Max MPFI Controller Kit Features:

Plug-and-play engine control for 2013-Newer Gen III HEMI Engines Non-VVT

For drive-by-wire DBW) throttle bodies

Injector harness for EV6 injectors - USCAR connector-type

High Impedance Injector Drivers safely power most stock injectors and Holley EFI injectors

Bosch LSU 4.9 wideband oxygen sensor (O2) for accurate readings and precise tuning control

Built-in 1bar manifold absolute pressure (MAP) sensor for boosted applications - the internal sensor can be disabled to run an external MAP sensor (not included) with terminated harness and connector (included)

1/8 (.125) in., 1/4 (.250) in., and 3/16 (.1875) in. vacuum hose adapters included

4 Inputs - 12 V, ground, 5 V, and frequency can be used for activation triggers, trans brake, and to add extra pressure sensors

Boost Controls - Ability to control boost vs time, boost vs. gear, boost vs. RPM, boost vs. speed, boost vs. safeties

Nitrous Controls - Single Channel Wet or Dry, Progressive or Non-Progressive, rich/lean safeties, and target closed-loop AFR

Advance Tables - 4x 1D table, 1x 1D gear table, 4x 2D table, 1x 2D per gear table - can be used for custom tables with unlimited configurations

On-board Multi-Color LED Diagnostic - Allows quick troubleshooting on critical issues for ECU power, engine running, wideband status, TPS calibration, crank signal, cam signal

A 3.500 in. LCD touchscreen provides easy base tuning with the calibration wizard along with gauge displays and data logging

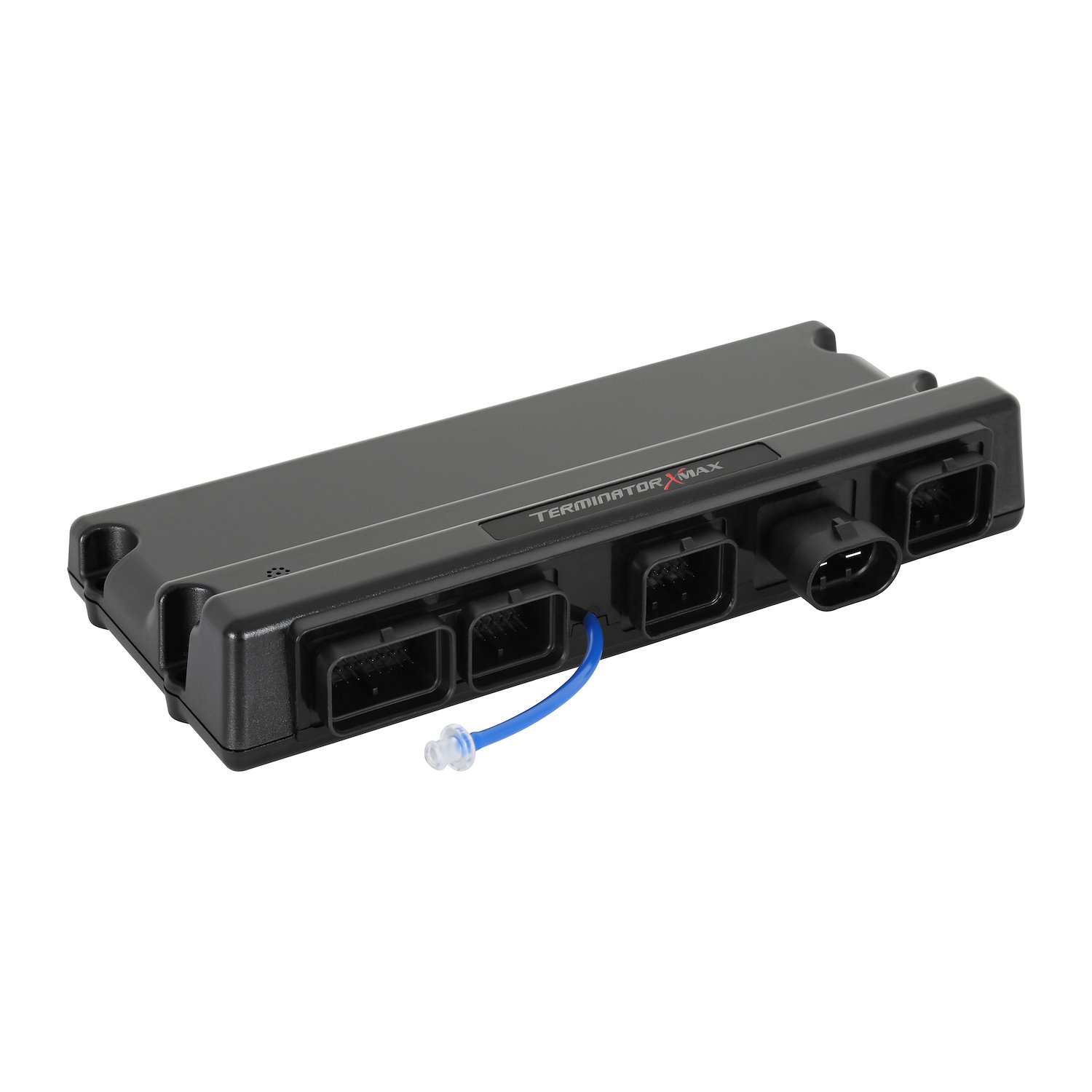

The compact ECU (7.450 in. x 4.100 in. x 1.660 in.) can be mounted virtually anywhere

Free software tuning/downloads for complete control and staying up-to-date

Note:

The ECU's diagnostic LED’s must be installed facing upwards

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeEngine Control Module

BrandHOLLEY

Package Height9.5

Package Width12.25

Package Length14.0

Weight9.0 PG

Part CategoryPerformance Parts

Wiring Harness IncludedYes

Wire Connectors IncludedYes

Housing FinishBlack

Housing MaterialPlastic
