Vehicle Info NeededHOLLEYPART NUMBER: 510-522-488

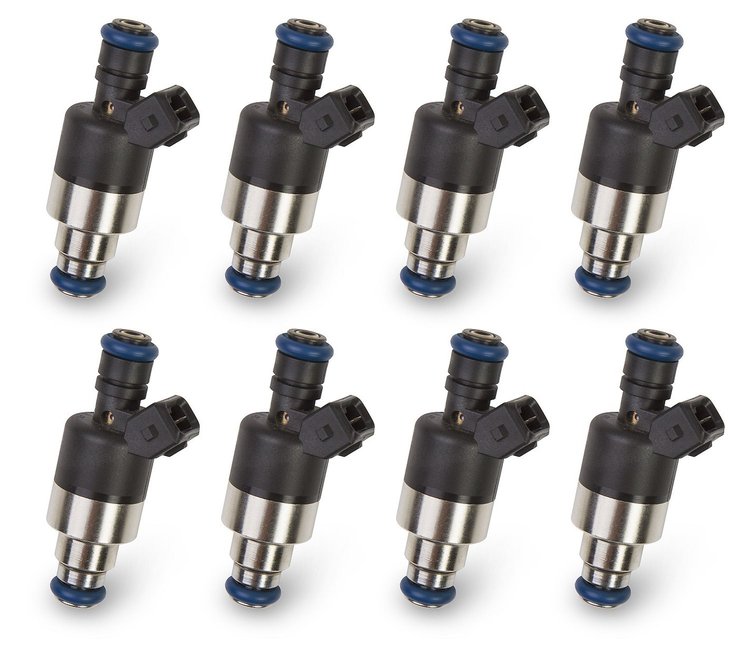

48 lb/hr Performance Fuel Injectors Bosch/EV1 Style - Set of 8
$60795$675.95You Save$68.00
2 left in stock
Ships Today
Lowest Price GuaranteeHigh Impedance 48 lb. Injectors
48 lb/hr Performance Fuel InjectorsHolley EFI Fuel Systems & Compatible ECUs Flow Rated 48 lb/hr at 43 PSI Bosch/EV1 Jetronic Style Body Precision Lapped Disc Valve, Brass Windings High-Temp O-Rings, Tri-Cone Spray
The Holley 522-488 is a set of eight 48 lb/hr performance fuel injectors for Holley EFI and other high-impedance-compatible engine management systems.
Holley 522-488 Features:
- Flow rated at 48 lb/hr at 43 PSI.
- Bosch/EV1 (Jetronic) style body with high-temp O-rings.
- Precision lapped disc valve with high-quality brass windings.
- Tri-cone spray pattern for excellent low-pulse-width linearity.
- Matched set of eight injectors.
Precision Fuel Injectors for Maximum Flow
Holley Fuel Injectors deliver exceptional fuel flow with unlimited flow rate options, allowing your street-driven to race applications to reach maximum performance gains. The uncompromised quality of Holley's fuel injectors makes them the perfect choice for your fuel injection needs.
Part TypeFuel Injector
Product LineHolley Fuel Injectors
BrandHOLLEY
Package Height1.2
Package Width9.1
Package Length9.9
Weight1.68 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Overall Height2.850 in.
Fuel Rate48 lbs./hr
Injector Plug StyleJetronic/Minitimer
QuantitySold as a set of 8
O-Rings IncludedYes
Injector ImpedanceHigh
Driver TypeSaturated
Injector Advertised Flow Rate (Lbs./Hr.)48
Type/SeriesEV1
Part FitmentUniversal
Outside Diameter0.97 in (24.6 mm)
Vendor Part Number522-488
Package Qty1
Package TypeEA
