Vehicle Info NeededHOLLEYPART NUMBER: 510-522-248

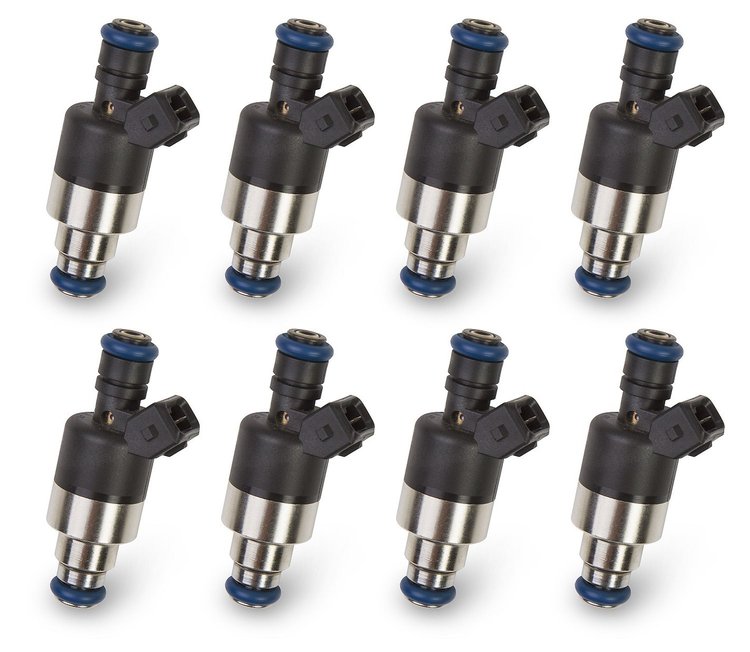

24 lb/hr Performance Fuel Injectors Bosch/EV1 Style - Set of 8
$64395$715.95You Save$72.00
Ships on Sep 03, 2026
Lowest Price GuaranteeHigh Impedance 24 lb. Injectors
24 lb/hr Performance Fuel InjectorsHolley EFI Fuel Systems & Compatible ECUs Flow Rated 24 lb/hr at 43 PSI Bosch/EV1 Jetronic Style Body Precision Lapped Disc Valve, Brass Windings High-Temp O-Rings, Tri-Cone Spray
The Holley 522-248 is a set of eight 24 lb/hr performance fuel injectors for Holley EFI and other high-impedance-compatible engine management systems.
Holley 522-248 Features:
- Flow rated at 24 lb/hr at 43 PSI.
- Bosch/EV1 (Jetronic) style body with high-temp O-rings.
- Precision lapped disc valve with high-quality brass windings.
- Tri-cone spray pattern for excellent low-pulse-width linearity.
- Matched set of eight injectors.
Part TypeFuel Injector
BrandHOLLEY
Package Height1.0
Package Width9.5
Package Length11.0
Weight1.65 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Overall Height2.850 in.
Fuel Rate24 lbs./hr
Injector Plug StyleJetronic/Minitimer
QuantitySold as a set of 8
O-Rings IncludedYes
Injector ImpedanceHigh
Driver TypeSaturated
Injector Advertised Flow Rate (Lbs./Hr.)24
Type/SeriesEV1
Part FitmentUniversal
Outside Diameter0.97 in (24.6 mm)
Vendor Part Number522-248
Package Qty1
Package TypeEA
