Vehicle Info NeededHOLLEYPART NUMBER: 510-522-168FM

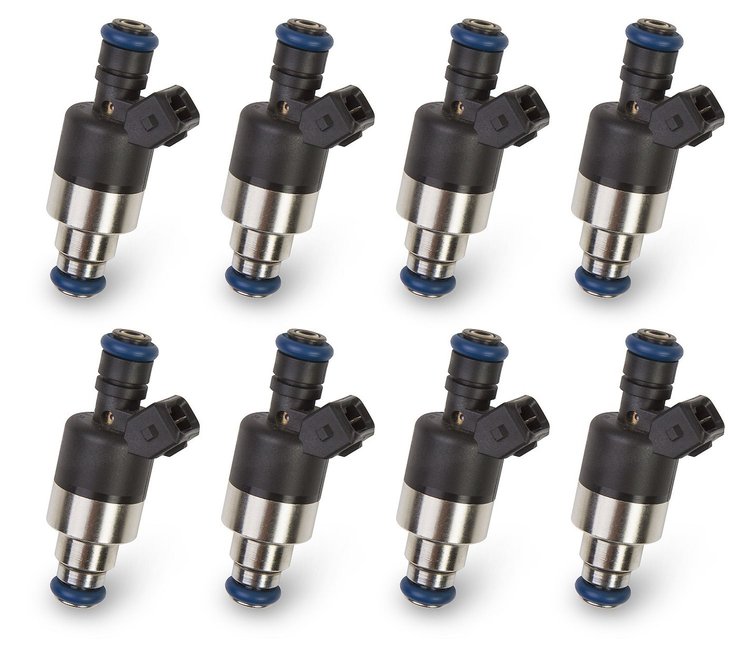

522-168FM EFI Fuel Injectors
$1,49995
2 left in stock
Ships Today
Lowest Price GuaranteeLow Impedance 160 lb. Injectors
EFI Fuel Injectors160 lbs/hr Low Impedance 8/pkg
Features:
- Low impedance of 2.0 Ohms, for use with peak and hold drivers
- Rated injector flow: 160 lb/hr at 43 PSI
- Supports up to 2525 horsepower
- Tri-cone spray pattern
- Maximum recommended fuel pressure: 75 PSI
- Dynamic Flow Matched within 1%
- Injector Dead Times matched within 2 microseconds
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeFuel Injector
BrandHOLLEY
Package Height1.2
Package Width9.2
Package Length10.1
Weight1.65 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Overall Height2.850 in.
Fuel Rate160 lbs./hr
Injector Plug StyleJetronic/Minitimer
QuantitySold as a set of 8
O-Rings IncludedYes
Injector ImpedanceLow
Driver TypeSaturated
Injector Advertised Flow Rate (Lbs./Hr.)160
Type/SeriesEV1
Part FitmentSemi Universal
Outside Diameter0.97 in (24.6 mm)
Vendor Part Number522-168FM
Package Qty1
Package TypeEA
