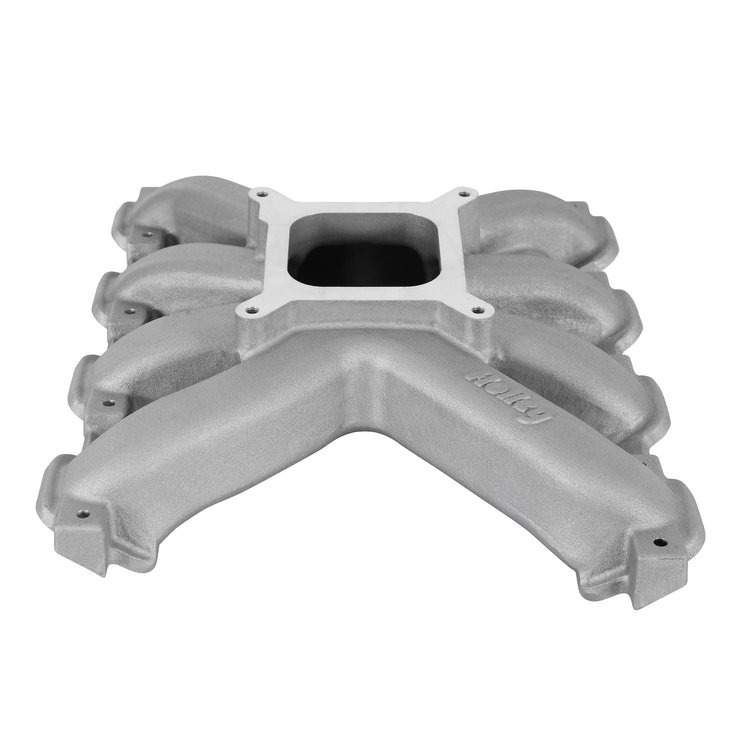

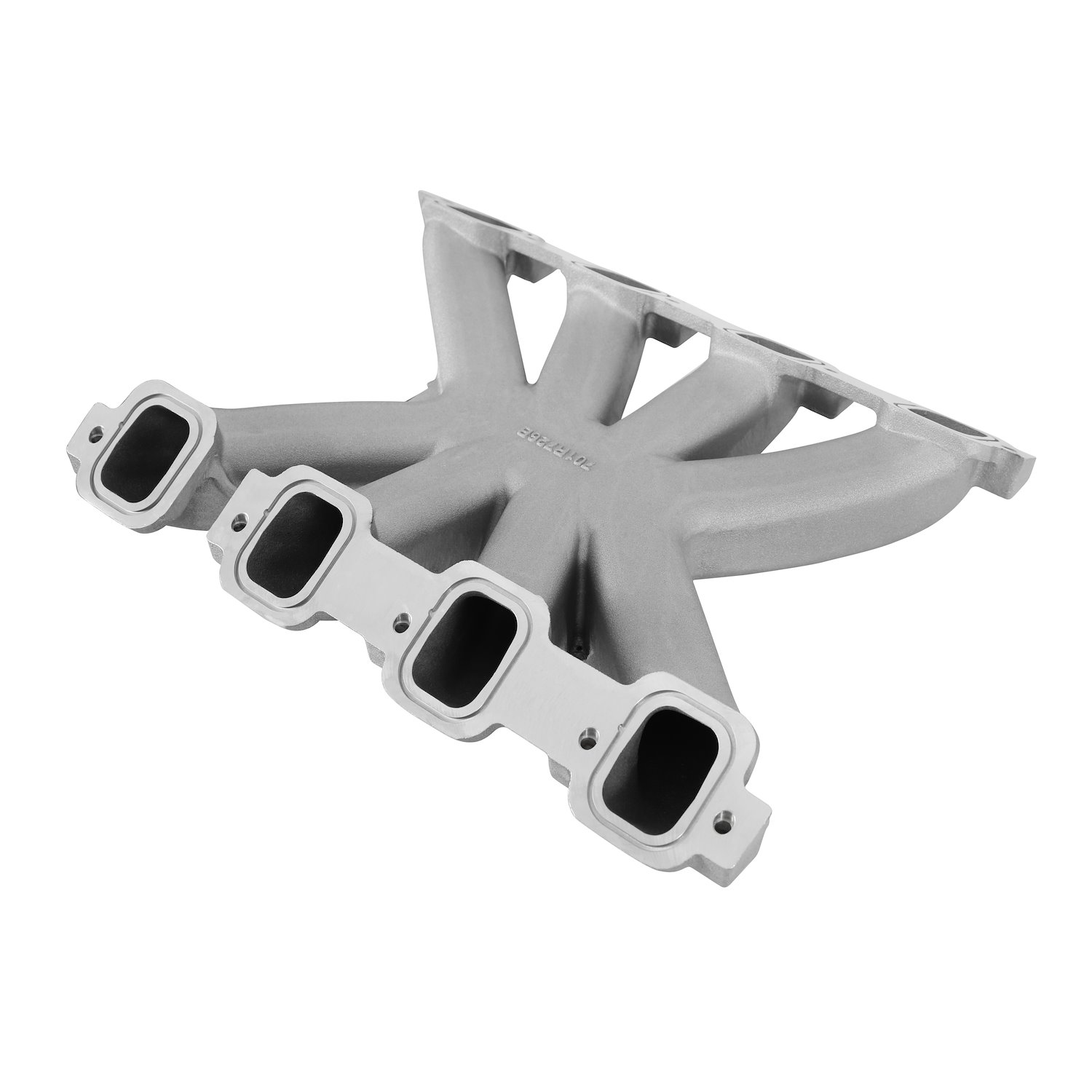

Holley 300-940 Single-Plane Intake Manifold Features:

• Fits GM Gen V LT engines equipped with OEM-type GM Gen V LT cylinder heads where the intake flange bolt pattern and intake port opening locations match the OEM Gen V LT port configuration
• Compatible with GM LS 92 mm or 105 mm drive-by-wire throttle bodies if Holley EFI Drive-By-Wire Throttle Body Adapter 17-93 or 17-94 (sold separately) are used
• Ideal for centrifugal blowers, turbochargers, or NOS applications
• 2500-7000 RPM power band
• 4150/4160 Square bore flange
• Optimized runner layout and constant cross-sectional area for a broad torque curve
• Low carb flange height fits in vehicles with minimum hood modifications
• Provides the classic look of a carb-style intake
• Lightweight with consistent wall thicknesses, and improved casting quality
• Weighs only 11 1/2 lbs.

Holley 300-940 Single-Plane Intake Manifold Notes:

• Engineered for street and performance engine applications with 5.3L to 6.2L plus engine displacement and maximum engine speeds of 6000-7000 RPM
• Does not accept any emission-control devices
• For GM Gen V LT retrofit and engine swap applications using OEM direct fuel injection use stand-alone engine management such as Holley 550-1600, 550-1601, or equivalent (each sold separately)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
