Vehicle Info NeededHOLLEYPART NUMBER: 510-300-116

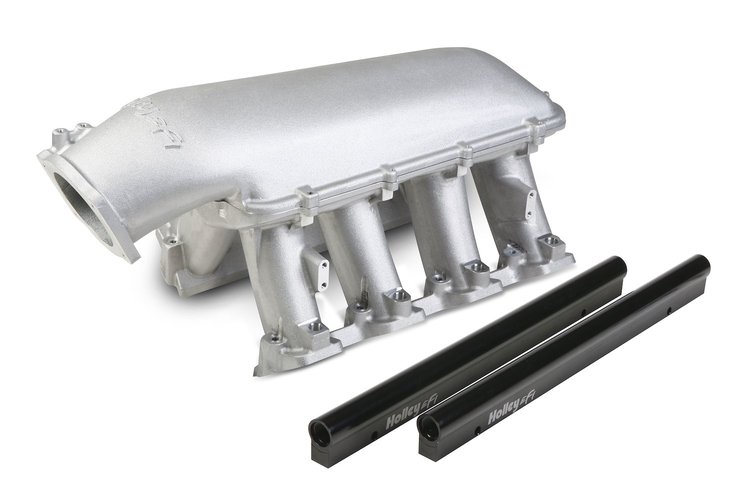

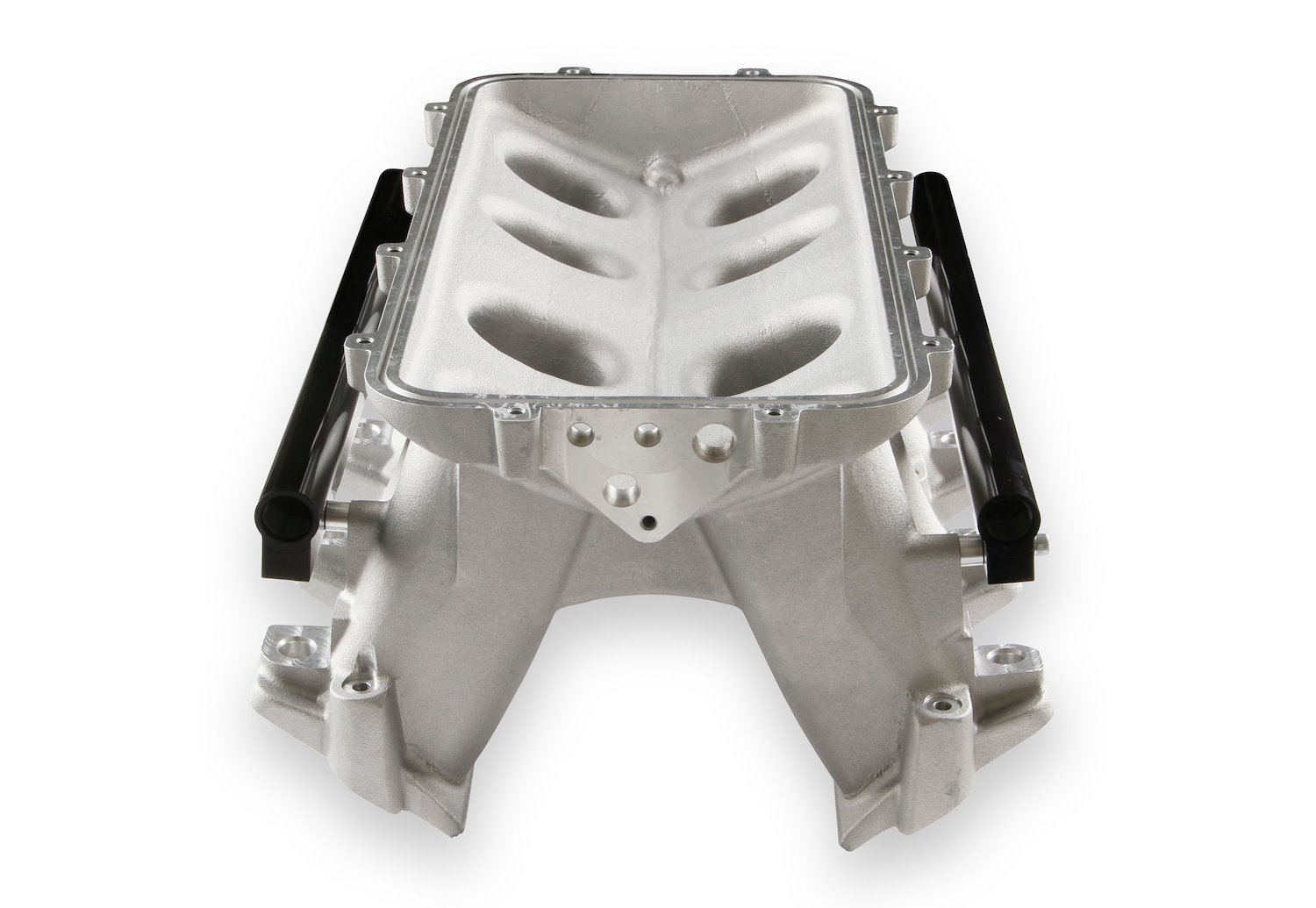

300-116 EFI Hi-Ram Intake For LS3/L92
$1,14995
1 left in stock
Ships Today
Lowest Price GuaranteeLS Modular Hi-Ram Intake
- EFI Hi-Ram Intake
- For LS3/L92
- Designed for use with 1 x 92mm GM LS Throttle Body, which is sold separately
- Longitudinal Mount Plenum Top
Holley 300-116 EFI Hi-Ram Intake For LS3/L92 Features:
- Base Plenum Top Mounting Flange Height - 8.42' to the lifter valley cover flange on engine block.
- Total Height with 92/102mm EFI Plenum Top - 12.32' to the lifter valley cover flange on engine block.
- Port Size - 2.49' Height x 1.21' Wide
- Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
- Plenum Top Gasket Type - 3/32' Round O-ring Cord
- Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42' (from engine block lifter valley cover flange), Longitudinal Location - 3.84' (forward from engine block front flange), Angle - 25 deg. (down from vertical)
- Runner Length - 6.50', As-Cast Runner Cross-Sectional Area - Tapered 4.25 in² to 2.77 in²
Part TypeIntake Manifold
BrandHOLLEY
Package Height14.9
Package Width16.0
Package Length26.9
Weight32.86 PG
Part CategoryPerformance Parts
Throttle Body Bore Size (Mm)92
Runners RemovableNo
Number Of CarbsNone, For Fuel Injection
Supplemental Bosses Cast-InYes
Plenum MaterialAluminum
EmissionWithout EGR
Engine Make/SizeGM LS
Basic Operating Rpm RangeIdle-8,000
Base FinishNatural
Rpm Range7000-8000
Injection StyleMulti-port
Supplemental Boss QuantityEight
Base MaterialAluminum
Plenum FinishNatural
Aftermarket Fuel Rail RequiredNo
Engine Block StyleStock/OEM standard Deck
UsageStreet/Hi-Performance
Throttle Body IncludedNo
PositionUpper
QuantitySold individually
Cylinder Head TypeStandard
Injectors IncludedNo
Fuel Rails IncludedYes
Intake Section IncludedComplete
EgrWithout EGR
Supplemental Bosses MachinedNo
Runners IncludedYes
Part FitmentSemi Universal
Vendor Part Number300-116
Package Qty1
Package TypeEA
