Features:

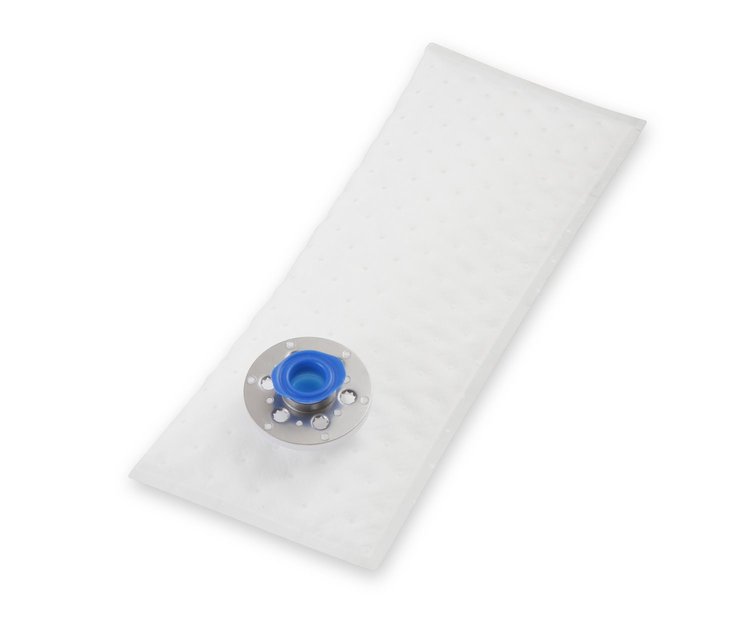

• The latest design and shorter version of the HydraMat 510-16-111
• Offset outlet with 11 mm 6-pin lock connection that can be indexed for limited space and finding the best location within the fuel tank
• A multiple-pin locking feature prevents damage or loss of retention during removal or repositioning
• Eliminates the need for additional specialty reservoirs, sumps, and pickups for the fuel system
• Reduces the possibility for air to enter into the fuel system creating fuel starvation issues and poor performance
• Surface tension and fluid wicking will continue to allow fuel to be drawn from the tank or cell even if part of the HydraMat is uncovered
  • As an area of the HydraMat is uncovered, tiny pores within the media seal off through surface tension, forcing fuel to be drawn from other areas of the mat where fuel is available
• If extreme fuel slosh conditions occur, a unique internal reservoir will aid in keeping fuel available at the pickup
• Doubles as a 15-micron pre-filter which eliminates the need for a separate filter before the fuel pump
• A replacement HydraMat for Retro-Fit fuel modules 510-12-130, 510-12-131, 510-12-132 and 510-12-133

Note: Connects to most fuel pumps with 11 mm O.D. inlet
