Made in USA

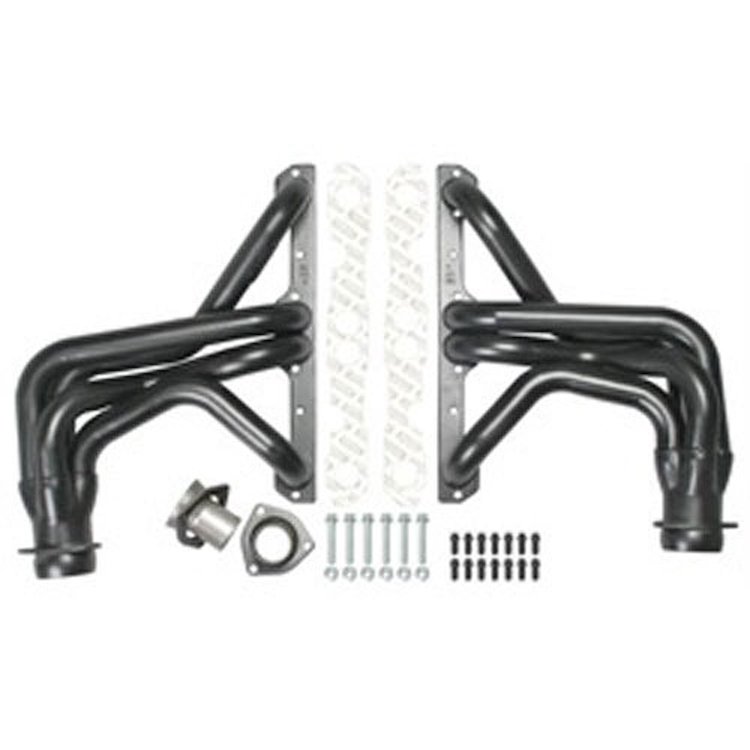

Standard Duty Uncoated Full Length Headers for 1967-81 Blazer, Jimmy, Suburban, Pickup 283-400
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-69237

Standard Duty Uncoated Full Length Headers for 1967-81 Blazer, Jimmy, Suburban, Pickup 283-400

$36899
ShippingShips on Sep 21, 2026
Lowest PriceLowest Price Guarantee
Best Value
Save
$18200
Long Tube Headers Fits Select 1967-1992 GM 2WD and 4WD Trucks [Small Block Chevy]

555-30055

Long Tube Headers Fits Select 1967-1992 GM 2WD and 4WD Trucks [Small Block Chevy]

$18699

GM Trucks
    Standard-Duty Uncoated Full-Length Headers
  • 1967-81 Blazer, Jimmy, Suburban, Pickup 283-400
  • Tube Size: 1-5/8"
  • Collector Size: 3"

    1967-81 BLAZER, JIMMY 283-400
    1967-81 K10 SUBURBAN, K20 SUBURBAN, K15/K1500 SUBURBAN, K25/K2500 SUBURBAN, R10 SUBURBAN, R20 SUBURBAN, R1500 SUBURBAN, R2500 SUBURBAN, V10 SUBURBAN, V20 SUBURBAN, V1500 SUBURBAN, V2500 SUBURBAN 283-400, 4WD
    1967-81 K10 PICKUP, K15/K1500, K20 PICKUP, K25/K2500 283-400
  • Vehicles equipped with large piston AC compressors require the use of bracket #20110. Sold separately.
  • Without smog injection or injection heads.
  • Must modify rotary A/C bracket.
  • Elite replacement gasket #27520.
  • Includes parts necessary to retain emission devices. (50 State)
  • Some vehicles may encounter clutch shaft interference when cross shaft location is located under or behind the driver's side rear exhaust port. Use #69092 without A.I.R. Use #69093 with A.I.R. Order Elite #69892.
  • Modification to stock exhaust required to retain catalytic converter.
  • For vehicles 1964 through 1974 without A.I.R. systems, considered as O.E.M. replacement parts when existing emission controls are not removed from vehicle.
  • 1975-1981 only, 50 state legal for these years.
  • EO#D167-27
Part TypeHeader
BrandHEDMAN
Package Height9.3
Package Width16.7
Package Length29.3
Weight22.8 PG
Part CategoryPerformance Parts
Carb Eo NumberD-167-7 (pdf)
Header FinishPainted
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Weld-UpNo
Collector AttachmentBall and socket flange
Flange StyleStandard
TunedNo
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.625 in (41.3 mm)
Vendor Part Number69237
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
