Made in USA

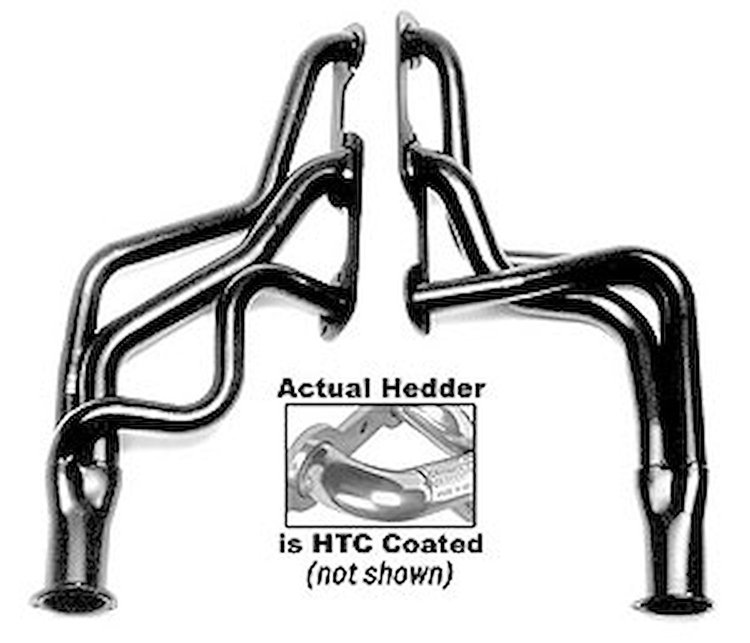

Standard Duty HTC Coated Full-Length Headers 1964-81 GTO/Le Mans/Tempest/Grand Prix/Firebird
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-28146

Standard Duty HTC Coated Full-Length Headers 1964-81 GTO/Le Mans/Tempest/Grand Prix/Firebird

$64699
ShippingShips on Nov 04, 2026
Lowest PriceLowest Price Guarantee
Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

Pontiac Cars
Standard Duty HTC Coated Full-Length Headers
  • 1964-81 GTO/Le Mans/Tempest/Grand Prix/Firebird
  • 1-5/8" Tube, 3" Collector

    Due to the location of the oil filter on these vehicles, relocation of the oil filter may be required to provide header tube clearance. We recommend the use of a Trans-Dapt Performance Products' #1120 (cast aluminum), or Hamburger's Performance Products #3365 (billet aluminum) oil filter relocation kit.

    • For 305, 326, 350, 400, 403, or 455 engine depending on year/model
    • Includes parts necessary to retain 49-state emission devices
    • Modification to stock exhaust required to retain catalytic converter
    • 3-tube design
    • Will not fit round port heads
    • Some heads require drilling and tapping of end holes
    • EO#D167-27

    Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Pontiac models for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Firebird, GTO, Lemans, Grand Prix or Tempest exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

    The LONG-TUBE design of these headers provides ample exhaust flow to let your 326-455 Pontiac engine breathe easy, and produce maximum horsepower and torque.  These headers have a high temperature POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header  warranty.

    Each set includes a pair of header gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

  • Part TypeHeader
    BrandHEDMAN
    Package Height10.0
    Package Width18.0
    Package Length46.0
    Weight27.0 PG
    Part CategoryPerformance Parts
    Carb Eo NumberD-167-26 (pdf)
    Header FinishSilver ceramic coated
    Tube DirectionDown Swept
    QuantitySold as a pair
    Bolts/Studs IncludedYes
    Cylinder Head Port ShapeD-port
    Transmission Mount IncludedNo
    Header MaterialSteel
    Gaskets IncludedYes
    Weld-UpNo
    Collector AttachmentBall and socket flange
    Flange StyleStandard
    TunedNo
    Collector Diameter3 in (76.2 mm)
    Motor Mounts IncludedNo
    Part FitmentSemi Universal
    Reducers IncludedYes
    ApplicationAutomotive
    Primary Tube Gauge18-gauge
    Header StyleFull-length
    Cross Over Pipe IncludedNo
    Catalytic Converter(S) IncludedNo
    Primary Tube Diameter1 5/8 - 2
    Vendor Part Number28146
    Package Qty1
    Package TypeEA
