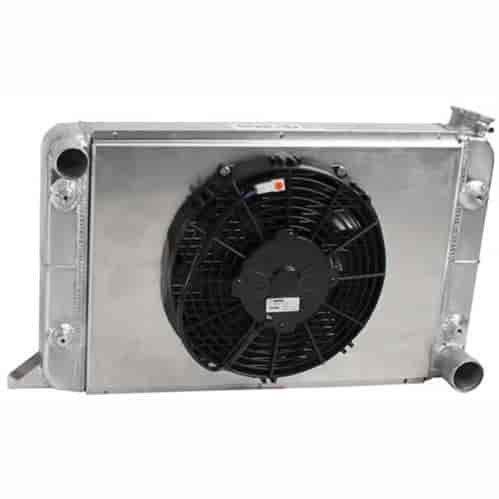

Scirocco Style Racing Radiator ComboUnit
InfoVehicle Info Needed
GRIFFIN RADIATORSPART NUMBER: 475-CU-55185-X

Scirocco Style Racing Radiator ComboUnit

$59800
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

Scirocco CombUnit
Scirocco Style Racing Radiator ComboUnit
  • 2 Row Crossflow
  • Shroud & 10 in. Fan
  • 1.500 in. Driver Inlet
  • 1.750 in. Passenger Outlet

    Dimensions
  • Overall: 22.500 W x 14.250 H x 5.930 in. T
  • Core: 18 W x 13.250 H x 2.500 in. T

    Notes:

    • Row Quantity: 2
    • Tube Size: 1.250 in.
    • Radiator Material: Lightweight Aluminum
    • Transmission Cooler: No
    • Inlet Location: Top Left
    • Outlet Location: Bottom Right
    • Fan Size: Single Spal 10 in. 802 cfm
    • With filler neck
    • Does not include wiring harness or relay
    • Cooling Performance for Racing

      Griffin MegaCool Universal Drag Race Radiators feature two rows of large 1.250-inch tubes with open fin spacing to enhance airflow, eliminate clogging and provide outstanding cooling power. By using a vacuum-brazing process with magnesium for high-strength, these radiators are some of the toughest units on the market. Griffin manufactures all tubes, fins, headers, sidebands, tanks, and mounting brackets in-house to provide the highest quality available. Universal-fit radiators are available in a variety of inlet and outlet locations to satisfy your cooling needs.

    Part TypeCooling Fan Kit
    Product LineGriffin Radiators Universal Drag Race Radiators
    BrandGRIFFIN RADIATORS
    Package Height8.5
    Package Width23.5
    Package Length35.5
    Weight20.0 PG
    Part CategoryPerformance Parts
    Overall Thickness5.93 in (150.6 mm)
    Overall Height14.25 in (362 mm)
    Wiring IncludedNo
    Radiator Cap IncludedNo
    Shroud MaterialAluminum
    Inlet LocationUpper driver side
    Inlet Size (In.)1 1/2
    Core Width18 in (457.2 mm)
    Row Quantity2
    Overall Width22.5 in (571.5 mm)
    Tube Size1.25 in (31.8 mm)
    Radiator FinishNatural
    Transmission CoolerNo
    Maximum Fan Cfm800 cfm
    Shroud ColorNatural
    Radiator StyleCrossflow
    Blade MaterialPlastic
    Outlet Size1.75 in (44.5 mm)
    Fan QuantitySingle
    Radiator MaterialAluminum
    QuantitySold individually
    Core Height13.25 in (336.55 mm)
    Core Thickness2.5 in (63.5 mm)
    Fan Diameter10 in (254 mm)
    Blade ColorBlack
    Outlet LocationLower passenger side
    Fan IncludedYes
    Part FitmentUniversal
    Vendor Part NumberCU-55185-X
    Package Qty1
    Package TypeEA
