Vehicle Info NeededGATESPART NUMBER: 465-32764

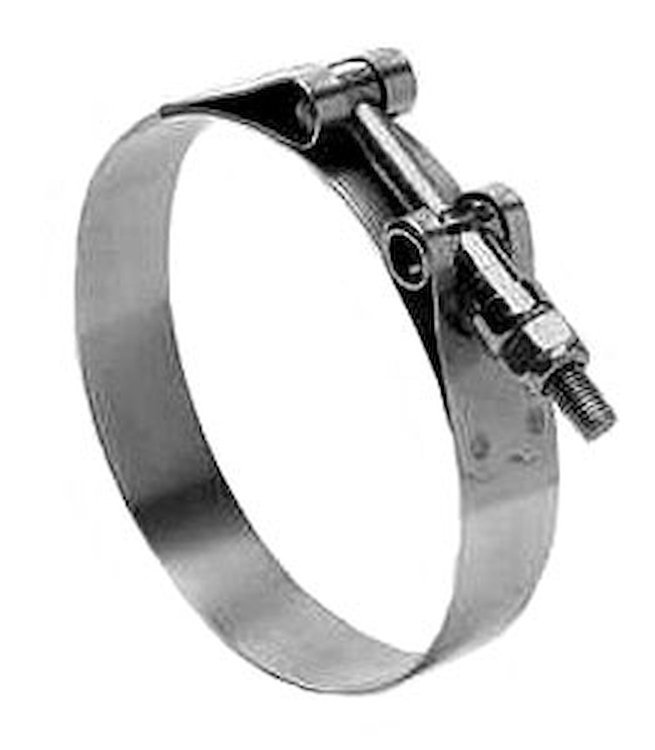

T-Bolt Hose Clamp Range: 3 1/4" to 3 9/16"
Size :
$1959
More than 10 available
Ships Tomorrow
Lowest Price GuaranteeT-Bolt Clamps
- T-Bolt Hose Clamp
- Range: 3 1/4" to 3 9/16"
Emissions Note:
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Choose from a variety of high-quality clamps. Sold 1/pkg.
Features:
- 100% marine-grade stainless steel
- Saline and corrosion-resistant
Show More
- 9/16" wide band with rounded edges
- 300 Series stainless steel screw with deep-slotted 5/16" hex Green Stripe T-Bolt Hose Clamps
- Designed for high-vibration and large diameter applications (e.g. heavy truck, off-road, industrial)
- 3/4" wide 201/301 stainless steel band
- 1/4"-28 plated steel bolt with 7/16" hex
- Nylon insert and plated steel locknut Green Stripe Constant-Tension Hose Clamps
- Reusable self-adjusting band for a dependable seal
- 100% stainless steel for maximum corrosion resistance
- 9/16" wide band with rounded edges
- Spring washers with higher rates of band tension contribute to superior sealing
- Tighten to minimum 50 in/lbs and maximum 85 in/lbs Silicone Hose Clamps
- Designed to provide extra-tight seal on silicone hose
- 300 Series stainless steel 9/16" wide band
- Inner liner prevents hose cover extrusion
- Combination 5/16" hex deep-slotted screw
- Mechanical interlock for added strength
- Tighten to 35 in/lbs
| Clamp Size | Hose ID (Inside Diameter) | Hose Clamping Range |
| Size 8 | Fits 5/16" to 1/2" | 7/16" to 1" |
| Size 10 | Fits 3/8" to 5/8" | 3/4" to 1-1/8" |
| Size 12 | Fits 5/8" to 3/4" | 7/8" to 1-1/4" |
| Size 16 | Fits 3/4" to 1" | 1" to 1-1/2" |
| Size 24 | Fits 1-1/4" to 1-1/2" | 1-1/4" to 2" |
| Size 28 | Fits 1-1/4" to 1-3/4" | 1-5/16" to 2-1/4" |
| Size 32 | Fits 1-1/2" to 2" | 1-9/16" to 2-1/2" |
| Size 36 | Fits 1-3/4" to 2-1/4" | 1-13/16" to 2-3/4" |
| Size 40 | Fits 2" to 2-1/2" | 2-1/16" to 3" |
| Size 44 | Fits 2-1/4" to 2-3/4" | 2-5/16" to 3-1/4" |
| Size 48 | Fits 2-1/2" to 3" | 2-9/16" to 3-1/2" |
| Size 52 | Fits 3" to 3-1/4" | 2-13/16" to 3-3/4" |
| Size 56 | Fits 3-1/4" to 3-1/2" | 3-1/16" to 4" |
| Size 64 | Fits 3-3/4" to 4" | 3-9/16" to 4-1/2" |
| Size 72 | Fits 4" to 4-1/2" | 4-1/16" to 5" |
Part TypeIntercooler Hose
Product LineGates Hose Clamps
BrandGATES
Package Height1.0
Package Width4.0
Package Length4.0
Weight0.2 PG
Part CategoryAccessories
Bolt Type.25" - 28 Male Pipe Thread
Band Width (In).75
PositionVarious - Application Specific
Clamping Range Min (In)3.25
Size76 in (1930.4 mm)
Band Width (Mm)19.1
Clamping Range Min (Mm)82.6
TypeT-Bolt (Standard)
Recommended Torque (In/Lbs)75
Clamping Range Max (In)3.5625
Clamping Range Max (Mm)90.4
Nut Type.4375" (11.1 mm) Hex-Head
Vendor Part Number32764
Package Qty1
Package TypeEA
