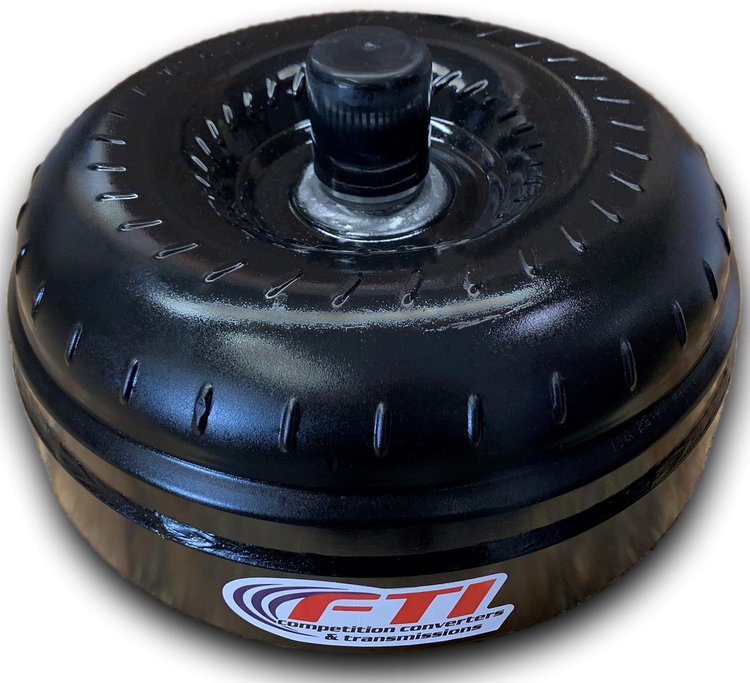

ESB3200LS 3200 Stall Street Brawler Torque Converter for GM 4L60E/4L65E/4L70E Transmission
InfoVehicle Info Needed
FTI TRANSMISSIONS & CONVERTERSPART NUMBER: 107-ESB3200LS

ESB3200LS 3200 Stall Street Brawler Torque Converter for GM 4L60E/4L65E/4L70E Transmission

$71900
7 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM Torque Converters
Street Brawler Torque Converter
  • 1998-2002 GM F-Body LS1/LS2
  • Fits Select GM Trucks 4.8L, 5.3L, 6.0L
  • GM 4L60E/4L65E/4L70E Transmission
  • 3200 Stall Speed
  • 11 in. Diameter
  • Rated to 550 HP
  • Billet Steel Front Cover
  • Sold Individually

    FTI ESB3200LS Features:

    • Perfect for street rods running air conditioning or the weekend warrior bracket racer
    • The billet cover provides improved support for the lockup clutch, resulting in improved lockup performance and less slippage
    • Torrington bearings and furnace-brazed stator fins prevent loosening over time as well as increase internal performance and reliability
    • Compatible with NOS or Boosted Applications (up to 550 HP)
    • Crank Pilot Diameter: 1.703 in.

    FTI EDB3200LS Note:

    • Designed to work with 300 mm diameter input shaft. Will not fit 1997-2005 Chevy Corvette.
    • Part TypeTorque Converter
    BrandFTI TRANSMISSIONS & CONVERTERS
    Package Height9.3
    Package Width13.1
    Package Length13.3
    Weight45.55 PG
    Part CategoryPerformance Parts
    Automotive Item GradeHigh Performance
    Hardware IncludedNo
    Transmission Mfr.GM
    Furnace-BrazedYes
    QuantitySold individually
    Flash Stall Speed (Rpm)3200
    Converter Input Spline30
    Anti-Ballooning PlateNo
    Torrington BearingsYes
    Input Spline Quantity30 in (762 mm)
    Horsepower550
    BalancedYes
    Weled FinsAll Fins
    Converter LockupYes
    Part FitmentSemi Universal
    LockupYes
    Diameter11 in (279.4 mm)
    Package Qty1
    Package TypeEA
