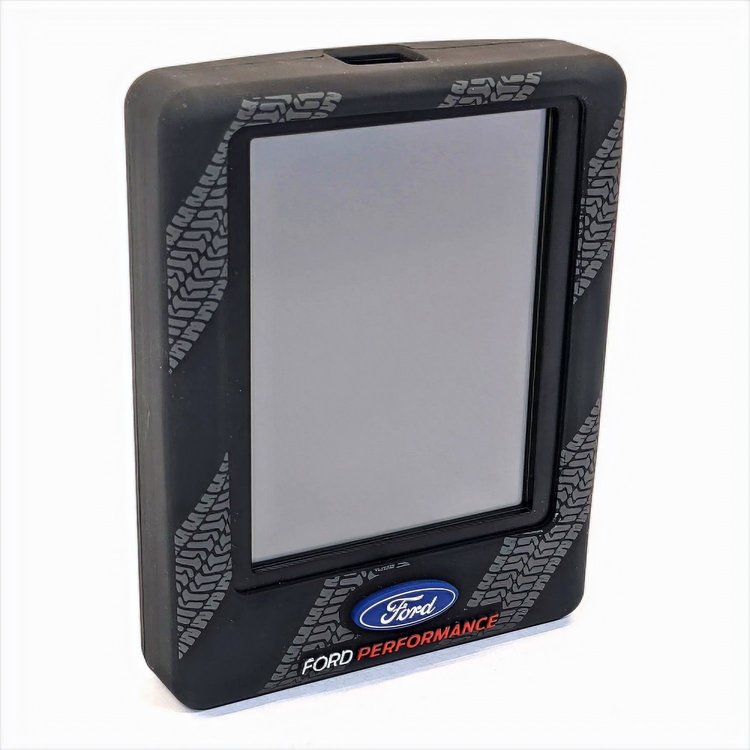

M-9603-B23 Performance Calibration w/Procal 4 Delivery Tool for Select Ford Broncos w/2.3L Ecoboost Engine

Name: M-9603-B23 Performance Calibration w/Procal 4 Delivery Tool for Select Ford Broncos w/2.3L Ecoboost Engine
Brand: FORD PERFORMANCE
SKU: 397-M-9603-B23
Price: 730.99 USD
Availability: InStock

^$730⁹⁹

2 left in stock

Ships Today

Lowest Price Guarantee

Bronco

Performance Calibration

Select Ford Bronco

2.3L EcoBoost Engine

Includes Procal 4 Delivery Tool

Peak Power: 330 HP @ 5500 RPM

Peak Torque: 385 ft. lbs. @ 3500 RPM

Improved Throttle Response

Optimized Transmission Shifts

Ford Performance M-9603-B23 Performance Calibration:

Dyno-Tested Power Gains
- Calibrated for increased power and performance while maintaining OEM-level reliability
- Peak Horsepower: 330 hp @ 5,500 RPM
- Peak Torque: 385 lb-ft @ 3,500 RPM
Enhanced Driving Experience
- Improved throttle response across the entire RPM range
- Optimized shift schedule for vehicles equipped with automatic transmissions
Customization & Compatibility
- Supports tire size changes up to 37x12.5R17 (e.g., BFG KO2, 579 revolutions/mile) – additional modifications required
- Allows axle/front drive unit (FDU) ratio adjustment up to 5.38
- Enables upgrade of M190 to M210 front drive unit via reconfiguration of the DLCM module
ProCal 4 Delivery Tool Included
- Provides user-friendly access for calibration uploads and system configurations

Ford Performance M-9603-B23 Performance Calibration Notes:

Reverting to stock calibration with non-production tires/gears will result in error codes. Loss of functionality of critical systems may occur.
Calibration and ProCal 4 tool are VIN locked. Please contact the Tech Line with additional questions.
ProCal 4 software only available for Windows 7 or greater. Will NOT work with Windows 10 in "S Mode".
ProCal 4 tool receives periodic firmware updates for greater usability and additional features. Please connect tool to PC periodically to receive updates automatically.
Calibrations for manual transmission Broncos downloaded after July 15, 2024 no longer include the rev matching feature
Note: For U.S. and Canadian vehicles only

Emissions Note:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has California Air Resources Board (CARB) Executive Order (EO) number D-431-6.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeComputer Programmer

BrandFORD PERFORMANCE

Package Height3.5

Package Width6.5

Package Length6.5

Weight1.3 PG

Part CategoryPerformance Parts

Wiring Harness IncludedYes

Interconnect Cable TypeOBDII

Interconnect Cable Connection 1 QuantitySingle

Part FitmentDirect Fit
