Vehicle Info NeededFLAMING RIVERPART NUMBER: 898-FR1508Q

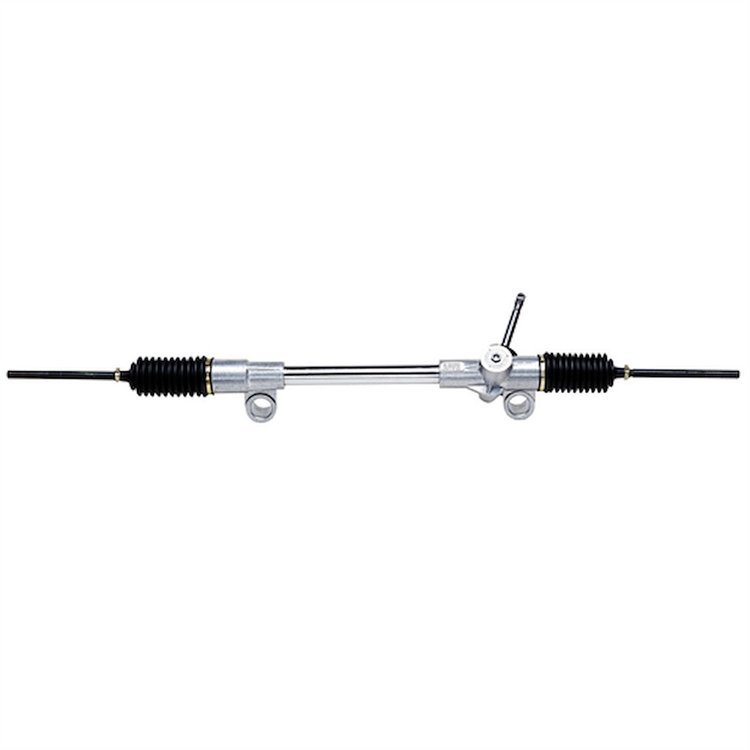

Manual Rack & Pinion 1994-2004 Ford Mustang Non-Modular Engines
$57999
2 left in stock
Ships Today
Lowest Price GuaranteeMustang Manual Rack & Pinions
Manual Rack & Pinion1994-2004 Ford Mustang Non-Modular Engines 15:1 Quick Ratio Front Steer 12 lbs Weight 47.5" Overall Length 5.5" Rack Travel 3.32 Turns Lock-to-Lock
FR1508Q Specifications
- OEM Design Style: 94-04 Ford Mustang
- Steering Design: Front Steer
- Total Weight: 12 lbs.
- Housing Material: Die Cast Aluminum
- Tube Material: Carbon Steel
- Tube Plating: Chrome
- Rack Gain: 1.75" per turn
- No. Turns Lock-to-Lock: 3.32
- Total Rack Travel: 5.5"
- Overall Length (end to end): 47.5"
- Housing Length: 20-3/8"
- Housing O.D.: 2.1" (both ends)
- Input Shaft Angle: 72°
- Input Shaft Spline Size: 9/16"-26
- Input Shaft Length: 5.375"
- Pivot Points: 24.5"
- Inner End Diameter: .590"
- Inner End Thread Size: 9/16"-18
- Driver Side Mount: Spike (bushing req'd)
- Passenger Side Mount: Spike (bushing req'd)
- Spike Mount Center to Center Distance: 15.5"
- Bellows Material: Nitrille Rubber
Part TypeRack and Pinion Complete Unit
BrandFLAMING RIVER
Package Height8.25
Package Width9.0
Package Length47.0
Weight15.3 PG
Part CategoryPerformance Parts
Part FitmentDirect Fit
Vendor Part NumberFR1508Q
Package Qty1
Package TypeEA
